The Simrad R5000 Series is a modular, IMO type-approved marine radar system designed for commercial and SOLAS vessels. It is available in both X-band and S-band configurations and can be installed as a single-radar or multi-radar system. The system uses a black-box radar processor connected to the transceiver and display, allowing flexible installation and integration with other bridge equipment.
The R5000 supports 12 kW and 25 kW X-band configurations and 30 kW S-band configurations. It is type-approved for applicable CAT 1/CAT 2 SOLAS vessels, including high-speed craft, depending on the selected configuration
| Parameter | Specification |
|---|---|
| Manufacturer | Simrad Commercial / Navico |
| Series | R5000 |
| Equipment Type | IMO/SOLAS Marine Radar |
| Radar Band | X-Band / S-Band |
| X-Band Output Power | 12 kW / 25 kW |
| S-Band Output Power | 30 kW |
| X-Band Frequency | 9410 ± 30 MHz |
| S-Band Frequency | 3050 ± 30 MHz |
| Maximum Range Scale | Up to 96 NM, configuration dependent |
| Minimum Detection Range | <40 m |
| X-Band Antenna | 6 ft / 9 ft / 12 ft |
| S-Band Antenna | 12 ft |
| Rotation Speed | >20 RPM / >40 RPM |
| Display Options | 24-inch / 27-inch IMO displays |
| Display Resolution | 1920 × 1080 pixels |
| TT/ARPA | Up to 100 displayed targets |
| AIS | Up to 6,000 receivable target messages; display capacity configuration dependent |
| Interface | Ethernet / NMEA 0183 / IEC 61162 |
| VDR Interface | DVI-D video and IEC 61162-450 |

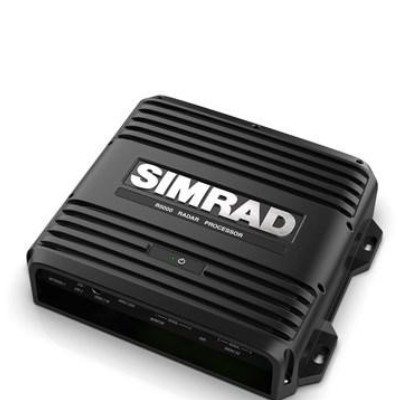

| Radar Processor | R5000 black-box processor |
| IMO Category | CAT 1(H) / CAT 2(H), configuration dependent |
| Country of Origin | Norway / European production depending on component and system configuration |
