SI-TEX, MDA-1 Metadata Class B AIS Transceiver Module
SI-TEX, MDA-1 Metadata Class B AIS Transceiver Module - Image 2
SI-TEX, MDA-1 Metadata Class B AIS Transceiver Module - Image 3
SI-TEX, MDA-1 Metadata Class B AIS Transceiver Module - Image 4

SI-TEX, MDA-1 Metadata Class B AIS Transceiver Module

$1,000.00Earn 1,000 points!

Add To Wishlist
Remove From Wishlist
Categories , , Tag Brand:
  • Internal 50-channel GPS smart antenna eliminates need for external GPS
  • Fully IPx7 waterproof rated and measures only 5.5″X3.9X1.9″

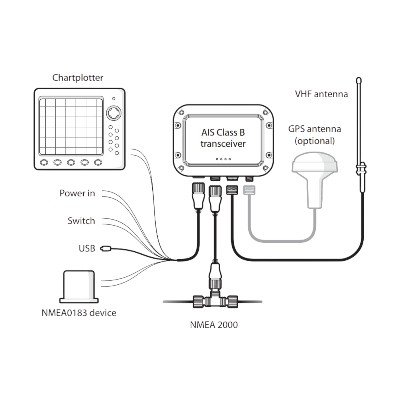

  • Designed for plug-and-play integration with chartplotters, radars, onboard PCs
  • Next generation Rmax™ AIS technology for fast signal processing, maximum reception range and real-time decoding of all AIS messages
  • Built-in NMEA0183 and NMEA2000® interfaces for easy connectivity
  • Additional USB interface can be used to power module

Technical Specification

📊 GENERAL

  • Type: Class B AIS Transceiver (TX + RX)
  • Technology: Rmax™ AIS engine (high-speed message processing)
  • Function: Sends and receives AIS data (MMSI, position, course, speed)

📡 AIS / RADIO PERFORMANCE

  • AIS Class: Class B
  • Transmission: CSTDMA (standard Class B method)
  • Channels:
    • 161.975 MHz (CH87B)
    • 162.025 MHz (CH88B)
  • Performance:
    • Real-time decoding of all AIS messages
    • Maintains range even in heavy traffic

🛰️ GPS SYSTEM

  • GPS Receiver: Internal 50-channel smart GPS antenna
  • External GPS: Optional (can be connected if needed)
  • Requirement: Needs clear sky view for internal GPS

⚡ ELECTRICAL

  • Supply Voltage: 12 – 24 V DC
  • Power Consumption:
    • ~150 mA @ 12V
    • < 2W average

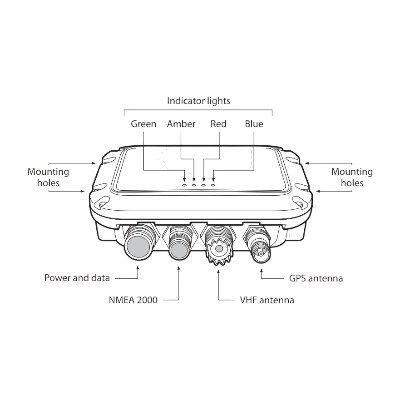

🔌 INTERFACES & CONNECTIVITY

  • NMEA 2000 (plug & play)
  • NMEA 0183:
    • Output: 38,400 baud
    • Input: 4,800 baud
  • USB interface: for configuration / PC connection
  • Silent Mode Input: external switch supported

📐 PHYSICAL

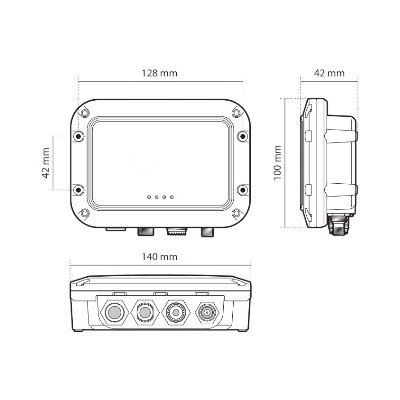

  • Dimensions: 5.5″ × 3.9″ × 1.9″ (≈ 140 × 99 × 48 mm)
  • Construction: Marine-grade plastic housing
  • Design: Black-box (no display)

There are no reviews yet.

Be the first to review “SI-TEX, MDA-1 Metadata Class B AIS Transceiver Module”

Your email address will not be published. Required fields are marked *

Download

172286800116215281401420646056Metadata_AIS
