The SI-TEX MDA-1 Metadata is a compact Class B AIS transceiver module designed for recreational vessels, fishing boats, workboats, and smaller commercial vessels. It provides both AIS transmission and reception, allowing the vessel to transmit its identification and position data while receiving AIS information from surrounding vessels.
The MDA-1 uses an internal 50-channel GPS smart antenna, eliminating the need for an external GPS antenna in many installations. For reliable internal GPS reception, the unit should be installed where it has a clear view of the sky.

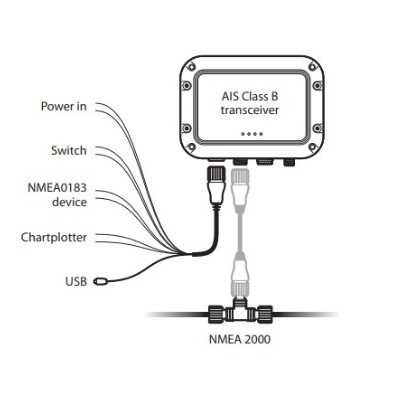

The transceiver uses SI-TEX Rmax AIS technology for real-time AIS message decoding and supports easy integration with chartplotters, radars, onboard PCs, and other navigation equipment through NMEA 0183, NMEA 2000, and USB interfaces. The compact enclosure is rated IPX7 waterproof.
| Specification | Details |
|---|---|
| Manufacturer | SI-TEX |
| Model | MDA-1 Metadata |
| Equipment Type | Class B AIS Transceiver |
| AIS Transmission Method | CSTDMA |
| AIS Transmitter | 1 |
| AIS Receivers | 2 |
| AIS Transmit Power | 2 W (33 dBm ±1.5 dB) |
| Operating Frequency | 156.025–162.025 MHz |
| Channel Spacing | 25 kHz |
| Channel Bandwidth | 25 kHz |
| AIS Modulation | GMSK |
| DSC Reception | AFSK, receive only |
| AIS Data Rate | 9,600 bit/s |
| DSC Data Rate | 1,200 bit/s |
| Receiver Sensitivity | Less than −107 dBm at 20% PER |
| GPS Receiver | Internal 50-channel GPS smart antenna |
| GPS Standard | IEC 61108-1 compliant |
| External GPS Antenna | Optional |
| NMEA 0183 Output | 38,400 baud |
| NMEA 0183 Input | 4,800 baud |
| NMEA 2000 | Supported |
| NMEA 2000 LEN | 1 |
| USB Interface | Supported |
| Silent Mode | External switch input |
| Power Supply | 12 / 24 V DC |
| Operating Voltage Range | 9.6–31.2 V DC |
| Average Power Consumption | Approximately 170 mA at 12 V DC* |
| Peak Current | 2 A |

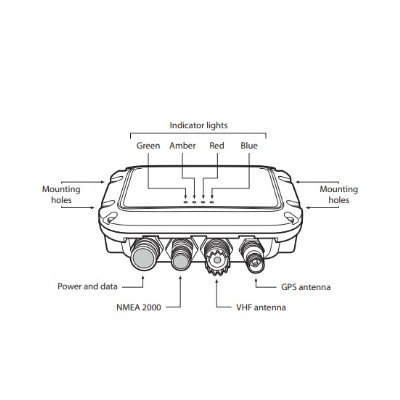

| VHF Antenna Connector | SO-239 |
| External GPS Antenna Connector | TNC |
| NMEA 2000 Connector | Standard NMEA 2000 connector |
| Power / Data Connector | 12-way connector |
| Dimensions | Approximately 140 × 100 × 42 mm (L × W × H)** |
| Weight | Approximately 250 g |
| Waterproof Rating | IPX7 |
| Operating Temperature | −25°C to +55°C |
| Environmental Standard | IEC 60945 Protected Category |
| Status Indicators | Power, TX Timeout, Error and Silent Mode |
