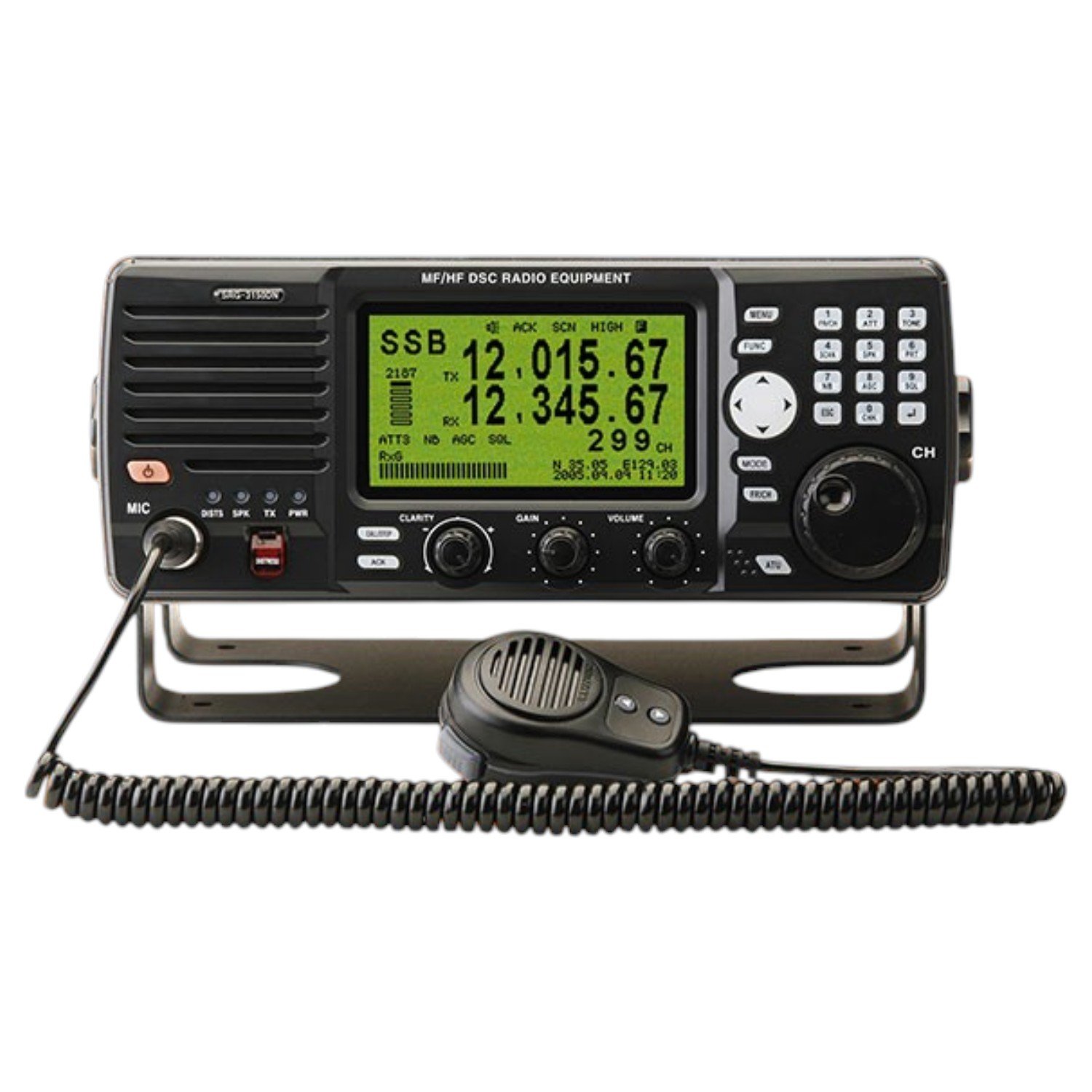

Samyung SRG-3150DN 150W MF/HF GMDSS Radiotelephone & NBDP System

The Samyung SRG-3150DN is a 150-Watt MF/HF radiotelephone system manufactured by Samyung ENC Co., Ltd. in South Korea. Designed for full compliance with IMO, ITU, and GMDSS carriage requirements on SOLAS merchant ships and commercial fishing vessels, the system provides long-range voice communications, Digital Selective Calling (DSC), and Narrow Band Direct Printing (NBDP/Telex) functionality.

The SRG-3150DN integrates a 10Hz step digital synthesizer for stable frequency control and reduced noise. Built with an integrated 6-channel DSC watchkeeping receiver, the transceiver continuously monitors all maritime distress/safety frequencies. Paired with the SN-100 terminal screen, keyboard, and printer, the system forms a complete GMDSS station for ocean-going vessels operating in Sea Areas A2, A3, and A4.

Key Features:
• SOLAS & GMDSS Compliant: Meets international IMO/ITU regulations for maritime distress and safety radiocommunications.
• Integrated 6-Channel DSC Watch Receiver: Continuously monitors 2187.5, 4207.5, 6312, 8414.5, 12577, and 16804.5 kHz.
• Integrated NBDP (Telex) Support: Fully supports direct printing telegraphy via connection with the SN-100 terminal array.
• High Frequency Stability: Employs a 10Hz synthesizer step for clear voice transmission and precise channel tuning.
• Extended Message Memory: Stores up to 100 transmitted messages and 100 received messages (50 distress and 50 general).
• Rapid Channel & Power Scanning: Supports rapid scanning across power levels, frequencies, and memory channels by group or individual list.

Technical Specification

Attribute Specification Details
Manufacturer Samyung ENC Co., Ltd.
Model / Part Number SRG-3150DN
Item Type GMDSS Class A MF/HF Radiotelephone with DSC & NBDP
Output Power J3E: 150 W p.e.p. | F1B: 100 W | H3E: 75 W
Transmit Frequency 1.6 MHz – 27.5 MHz (10 Hz steps)
Receive Frequency 500 kHz – 29.9999 MHz (10 Hz steps)
Channels Standard ITU channels plus 300 user memory channels
Emission Types J3E (SSB Voice), F1B (NBDP/DSC), H3E (AM)
DSC Watch Frequencies 2187.5, 4207.5, 6312, 8414.5, 12577, and 16804.5 kHz
NBDP Protocol / Terminal CCIR 625, 476-4, 490, 491, 492-3 / SN-100 Terminal Unit
Operating Power 24V DC ±15% (2.5A RX / 15A TX)
Operating Temperature -15°C to +55°C
Certifications IMO GMDSS Compliant (Sea Areas A2, A3, A4), ITU, Wheelmark/MED
Application Commercial merchant fleet, ocean-going tankers, deep-sea fishing ships
Country of Origin Republic of Korea
