The NSR NAB-1000 AIS Class B Transponder is a marine Automatic Identification System designed primarily for non-SOLAS vessels. It transmits the vessel’s identification, position, course and speed to nearby AIS-equipped vessels and shore stations, helping improve navigational awareness and collision avoidance. The system receives AIS information from surrounding vessels and supports integration with compatible chart plotters, navigation displays and other onboard equipment through NMEA data interfaces. Its compact design makes it suitable for small commercial vessels, workboats and recreational boats.
| Specification | Details |
|---|---|
| Make | NSR (New Sunrise Co., Ltd.) |
| Model | NAB-1000 |
| Product name | AIS Class B Transponder |
| Equipment type | Automatic Identification System (AIS) |
| AIS class | Class B |
| Application | Vessel identification, position reporting and AIS target tracking |
| Communication mode | CSTDMA |
| Frequency range | 156.025–162.025 MHz |
| Default channels | AIS 1 and AIS 2 |
| Channel bandwidth | 25 kHz |
| Transmit output power | 2 W |
| Receiver sensitivity | Better than −110 dBm |
| Data interfaces | 1 × RS-232, 1 × RS-422 |
| Data format | NMEA 0183 |
| Baud rate | 38,400 bps |

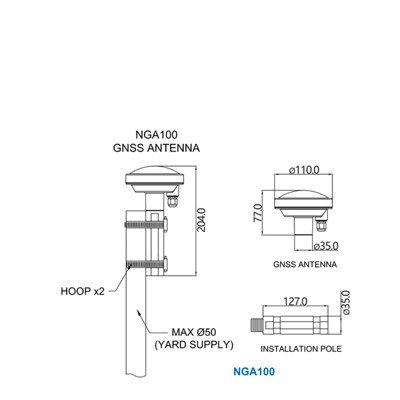

| GNSS support | GNSS antenna input; current brochure lists NGA100 GNSS antenna |
| Antenna connectors | 50 Ω TNC for GNSS antenna; BNC for VHF antenna |
| Power supply | DC 24 V |
| Input voltage range | 12–38 V DC |
| Power consumption | Confirm from the applicable manual |
| Transponder dimensions | 81 × 174 × 160 mm (H × W × D) |
| Transponder weight | Approximately 1.4 kg |
| Protection rating | IP22 for transponder; IP66 for antenna |
| Standard accessories | GNSS antenna with 10 m cable and accessories |

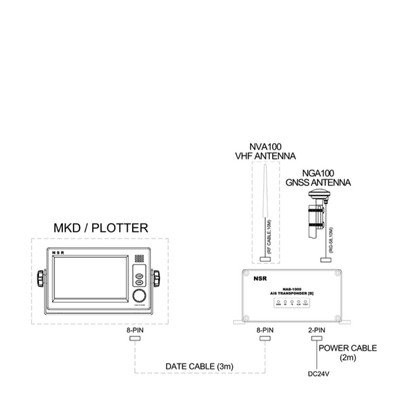

| Optional equipment | NSI-1000D MKD, NES-3010 10.1-inch plotter, NVA100 VHF antenna |
| Intended vessel type | Primarily non-SOLAS vessels |
| Standards | IEC 62287-1; ITU-R M.1371-5, as listed in current brochure |
