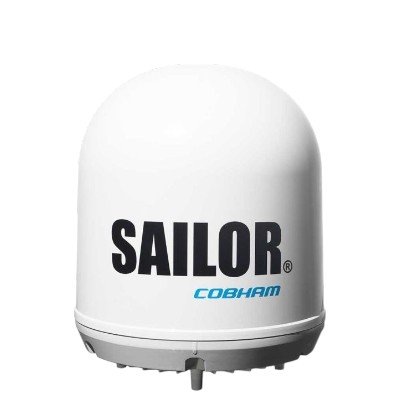

The SAILOR 250 FleetBroadband is a compact maritime satellite communication system designed to provide reliable broadband connectivity and voice communication at sea. It uses the Inmarsat FleetBroadband network and supports simultaneous voice and data communications for commercial vessels, offshore vessels and other maritime operations. The system provides standard IP data up to 284 kbps and supports streaming IP services up to 128 kbps.
| Parameter | SAILOR 250 FleetBroadband |
|---|---|
| Satellite Network | Inmarsat FleetBroadband |
| Standard IP Data | Up to 284 kbps |
| Streaming IP | 8, 16, 32, 64, 128 kbps |
| Standard Voice | 4 kbps AMBE+2 |
| Premium Voice | 3.1 kHz Audio, 64 kbps |
| Multi-Voice | Up to 6 simultaneous voice lines |
| SMS | Up to 160 characters |
| Fax | G3 fax via 3.1 kHz Audio |
| Receive Frequency | 1525.0–1559.0 MHz |
| Transmit Frequency | 1626.5–1660.5 MHz |
| Channel Spacing | 1.25 kHz |
| Antenna Gain | ≥11.0 dBi Rx |
| G/T | ≥ −15.5 dB/K |
| EIRP | 3.1 dBW minimum / 16.1 dBW maximum |
| Antenna Input Voltage | 22.7 VDC |
| Antenna Power | Maximum 39 W |
| Ethernet / PoE | 4 ports |
| Phone/Fax | 2 × 2-wire ports |
| ISDN | 1 port, 3.1 kHz audio |
| I/O | 5 configurable inputs/outputs |
| L-Band Output | 1 port for L-Band broadcast |
| SIM | 1 × BGAN SIM slot |
| Router | Integral DHCP/NAT router |
| PBX | Built-in PBX |
| DC Supply | 10–32 VDC isolated |
| Maximum Power | Approx. 150 W including antenna and PoE output |
| ADU Weight | Approx. 3.9–4.2 kg depending documentation/version |
| BDU Weight | Approx. 2.5 kg |
| ADU Dimensions | Approx. 329.2 × Ø275.6 mm |
| BDU Dimensions | Approx. 264.5 × 273 × 42.5 mm |
| ADU Protection | IPX6 |
| BDU Protection | IP31 |
| Operating Temperature | −25°C to +55°C |
| Storage Temperature | −40°C to +85°C |
| Maximum Wind | 100 knots |
| Maximum Headway Speed | 22 m/s / 42 knots |
| Approvals / Compliance | Inmarsat FleetBroadband approved; RTTE compliant; CE marked; FCC Part 25 tested |
