SAILOR, 6390 Navtex Receiver

The SAILOR 6390 Navtex Receiver receives Navtex messages on the international Navtex frequencies 490 kHz, 518 kHz and 4,209.5 kHz. It can hold 2000 messages per frequency. Messages are not affected by a power cycle. Untagged messages are cleared from the message log after 661 hours, you can tag messages for later viewing. You can customise which stations to receive messages from and which message types you want to receive. The unit has an alarm relay which is only activated if a message of category D is received (i.e. SAR, Mayday relay, Pirate attack etc.). The SAILOR 6390 Navtex Receiver is always on when powered. With its LAN interface the transponder and the display can be separated, giving access to the Navtex information available where it is needed.

Technical Specification

📡 1. RECEIVER SYSTEM

Type: NAVTEX receiver (GMDSS / SOLAS approved)
Frequencies received:
- 518 kHz (International NAVTEX)
- 490 kHz (National NAVTEX)
- 4209.5 kHz (HF NAVTEX)
Reception: Multi-frequency NAVTEX monitoring (programmable station selection)
Message filtering: User-selectable stations and message categories

🖥️ 2. SYSTEM ARCHITECTURE

Configuration: “Black box” receiver system
User interface: External display/control panel (e.g. SAILOR 6004 touch screen)
Integration: Full ship bridge / INS / ECDIS integration support

💾 3. MESSAGE STORAGE

Stores up to 2000 messages per frequency (large archival capacity)
Automatic memory retention (messages preserved during power loss)
Message categories:
- Navigational warnings
- Meteorological warnings
- SAR / distress alerts
- Safety broadcasts

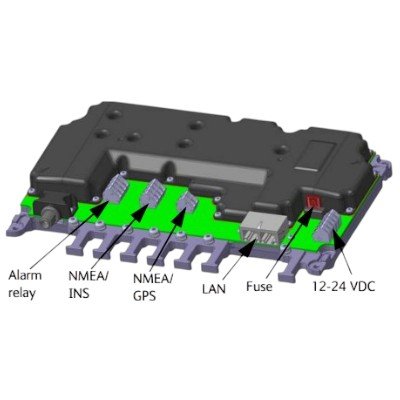

🔌 4. INTERFACES

NMEA 0183 / IEC 61162-1 compatibility
Ethernet / LAN integration for bridge systems
Serial communication for:
- ECDIS
- VDR (Voyage Data Recorder)
- Printer systems
Alarm output for GMDSS alerts

📡 5. ANTENNA SYSTEM

Supports active or passive NAVTEX antennas
Recommended: tri-band NAVTEX active antenna
50 Ω impedance input
Built-in antenna supply voltage (for active antennas)

⚡ 6. POWER SUPPLY

Voltage: 12 – 24 V DC
Power consumption: ~6.5 W (typical system load)

🌡️ 7. ENVIRONMENTAL CONDITIONS

Operating temperature: −15°C to +55°C
Storage temperature: −15°C to +55°C
Designed for marine bridge environment (vibration + EMC compliant)

⚖️ 8. PHYSICAL DATA

Receiver weight: ~1.3 kg
Compact “black box” design
Flexible mounting (wall / rack installation)

📡 9. NAVTEX FUNCTIONALITY

Automatic reception of MSI (Maritime Safety Information)
Supports:
- A: Navigational warnings
- B: Meteorological warnings
- D: SAR alerts (distress)
Message sorting and filtering by station/type
LED / network status indication for reception monitoring
