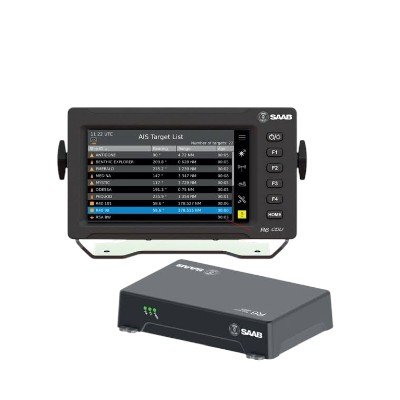

The SAAB R6 SUPREME AIS is a modern Class A shipborne Automatic Identification System (AIS) developed by Saab TransponderTech for SOLAS and commercial vessels. It is a next-generation platform using Software Defined Radio (SDR) technology and is also designed to support the transition toward VDES (VHF Data Exchange System). Saab states that the R6 Supreme is type-approved for AIS and provides AIS receiver sensitivity better than −118 dBm.
| Parameter | Specification |
|---|---|
| Manufacturer | SAAB TransponderTech AB |
| Model | R6 SUPREME AIS / AIS-VDES |
| Equipment Type | Class A Shipborne AIS Transponder |
| Application | SOLAS / Commercial vessels |
| AIS Standard | IEC 61993-2 |
| AIS Standard Data | ITU-R M.1371-5 |
| VHF Frequency Range | 156.025 – 162.025 MHz |
| VHF Transmitter | 1 W – 12.5 W |
| Receiver Sensitivity | Better than −118 dBm (AIS) |
| Parallel RX Processes | Up to 64 |
| Channel Bandwidth | 25 / 50 / 100 / 150 kHz |
| VHF Antenna | 50 Ω, BNC |
| GNSS Antenna | 50 Ω, TNC, 5 VDC |
| GNSS Receiver | Built-in multi-GNSS receiver |
| Power Supply | 12–24 VDC nominal |
| Transponder Power Consumption | Approx. 15 W |
| CDU Power Consumption | Approx. 5 W |
| Recommended Fuse | 10 A slow-blow fuse/breaker |
| IEC 61162-1/2 Interfaces | 4 × Sensor/LR input/output + 3 × ECDIS/ARPA/Pilot Plug |
| Ethernet | 2 × IEC 61162-450 RJ45 |
| Transponder Dimensions | 250 × 180 × 50 mm |
| Transponder Weight | Approx. 2.0 kg |
| Junction Box Dimensions | 250 × 180 × 50 mm |
| Junction Box Weight | Approx. 0.9 kg |
| CDU Dimensions | 220 × 125 × 45 mm |
| CDU Weight | Approx. 1.5 kg |
| Operating Environment | IEC 60945 Protected |
| Display | 7-inch colour touchscreen |
| Display Resolution | 1024 × 600 pixels |
| Display Colours | More than 16 million |
| Bridge Network | Dual IEC 61162-450 network interfaces |
| BAM | IEC 62923-1/-2 |
| Cybersecurity | IEC 63154 / IEC 61162-460 capabilities |
| VDES | ASM, VDE-Terrestrial and VDE-Satellite capable |
