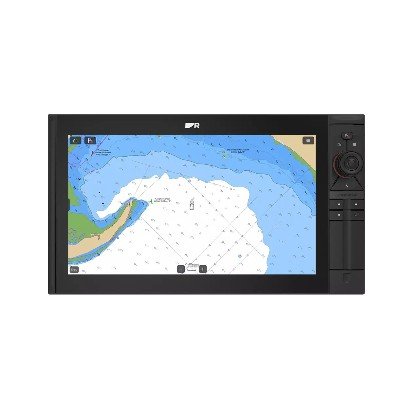

The Raymarine Axiom 2 Pro 16 S is the large-format version of the professional “S” series, offering a full High-Definition (FHD) 15.6-inch screen. It is designed for offshore cruisers and sailors who need maximum screen real estate for multi-pane views—such as simultaneous chart, radar, and video—without the need for the specialized 1kW 3D fishing sonar found in the RVM models.

The Axiom 2 Pro 16 S features a massive 1920 x 1080 (Full HD) IPS display, providing the highest level of detail in the Axiom 2 Pro lineup. It is powered by the latest 6-core processor and runs on the LightHouse 4 operating system. The HybridTouch interface remains a core feature, offering a high-resolution touchscreen for intuitive use and a physical keypad for reliability in heavy weather.

Key Features

• Full HD Clarity: The 15.6-inch screen offers a 16:10 aspect ratio and 1080p resolution, making it the ideal canvas for detailed electronic charts and high-resolution radar overlays.

• HybridTouch™ Control: Combines a fluid multi-touch screen with a full physical keypad and rotary dial. It also includes interchangeable keypads, allowing you to swap between a dedicated autopilot keypad or user-programmable soft keys.

• HydroTough™ Nano-Coating: The impact-resistant glass is treated to repel water and oil, ensuring touch accuracy even when the unit is exposed to heavy rain or spray.

• Integrated High CHIRP Sonar: Built-in hardware for single-channel High CHIRP (optimized for CPT-S transducers), providing reliable depth tracking up to 274 meters (900 feet).

• 6-Core Processor & 64GB Storage: Provides a significant boost in multitasking speed over previous generations and 4x the storage for charts and apps.

• Dual Gigabit RayNet Ports: Two Ethernet ports allow for direct high-speed connections to radar and other displays without an external network switch.
