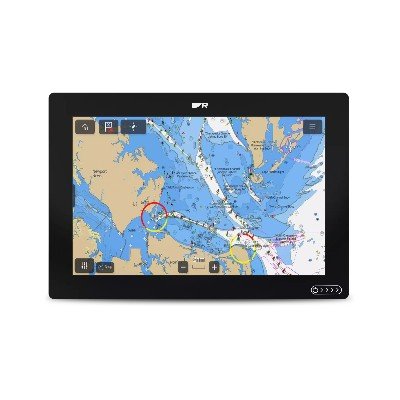

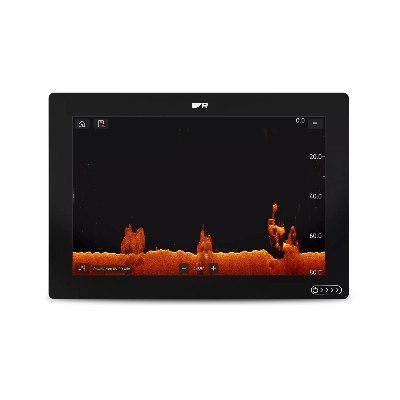

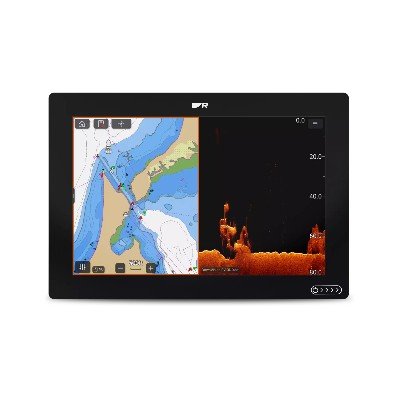

The Raymarine Axiom 2/RV Sonar 12 is the large-screen flagship of the standard Axiom 2 series. Released as a direct, high-performance successor to the Axiom+ 12, it brings the “Pro” level processing power—including a 6-core CPU and 64GB of storage—to a sleek, all-glass touchscreen format.

It is designed to be a “drop-in” replacement for previous Axiom and Axiom+ 12-inch units, utilizing the same mounting footprint and cabling while offering a significant leap in system speed and network bandwidth.

The Axiom 2 12 features a 12.1-inch High-Density IPS display with 1280 x 800 (WXGA) resolution. The screen is protected by HydroTough™ nano-coated glass, which ensures the display remains 100% responsive even when completely soaked by sea spray or rain. With its 1,800-nit brightness, it is one of the most visible displays on the market, even in direct midday sun.

Key Features

• 6-Core Performance: The upgraded processor provides a 30% boost in speed over the previous generation, making it capable of handling complex 3D sonar and radar overlays simultaneously without stutter.

• Gigabit Networking: Features a Gigabit RayNet (Ethernet) port. This increased bandwidth is critical for the lower-latency video required for high-speed radar and Augmented Reality (AR) systems.

• 64GB Internal Memory: Provides 4x the storage capacity of the Axiom+ (16GB), allowing you to store a vast library of charts, screenshots, and 30+ marine apps like Netflix or Spotify.

• HydroTough™ IPS Screen: An ultra-bright (1,800 nits) display with a nano-coating that repels water and oil, paired with ultra-wide 88° viewing angles.

• Next-Gen GNSS: Equipped with a 10 Hz, 28-channel receiver that tracks GPS, GLONASS, Beidou, and Galileo for pinpoint accuracy.

• Ambient Light Sensor: Automatically adjusts the screen brightness for day, evening, and night conditions.
