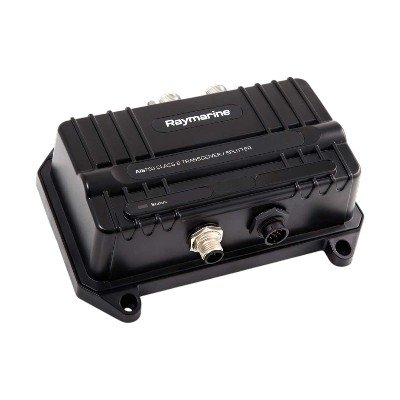

Raymarine, AIS700 Class B Transceiver with Antenna Splitter
Raymarine, AIS700 Class B Transceiver with Antenna Splitter - Image 2
Raymarine, AIS700 Class B Transceiver with Antenna Splitter - Image 3

Raymarine, AIS700 Class B Transceiver with Antenna Splitter

$1,300.00Earn 1,300 points!

Add To Wishlist
Remove From Wishlist
Categories , , Tag Brand:

The Raymarine AIS700 is a Class B Automatic Identification System (AIS) transceiver designed mainly for yachts, sailing boats, and small commercial vessels.

The AIS700 from Raymarine is a Class B Automatic Identification System (AIS) transceiver designed for use with Raymarine multifunction navigation display systems. As a Class B AIS transceiver, the AIS700 not only receives broadcasts from other vessels, it also transmits your own boat’s information too helping you to be seen on other vessels’ systems.

It works by both:

  • 📡 Transmitting your boat’s position (so others can see you)
  • 📡 Receiving nearby vessel data (so you can see them on your chartplotter or display)
  • Full AIS transmit + receive (Class B system)
  • Built-in GPS receiver
  • Integrated VHF antenna splitter (uses your existing radio antenna)
  • Compatible with:
    • NMEA 2000
    • NMEA 0183
    • Raymarine SeaTalkNG
  • “Silent mode” (can stop transmitting when needed)

Technical Specification

AIS & Radio Performance

  • AIS Class: Class B (SOTDMA technology)
  • Transmit power: 5 W
  • Frequency:
    • Transmit: 156.0 – 162.025 MHz
    • Receive: 156.0 – 174.0 MHz
  • Channels: 25 kHz spacing
  • Transmitter: 1
  • Receivers: 2

📍 GNSS (GPS)

  • Built-in GNSS receiver (GPS + GLONASS)
  • Channels: 72-channel receiver
  • Cold start: ~26 seconds

🔌 Electrical

  • Supply voltage: 9.6 – 31.2 V DC
  • Compatible: 12V / 24V systems
  • Power consumption: ~3 W
  • Peak current:
    • 2.5 A @ 12V
    • 1.25 A @ 24V

🔗 Interfaces & Connectivity

  • NMEA 2000 (DeviceNet)
  • NMEA 0183 (RS422)
  • SeaTalkNG
  • USB (Micro-B) for setup/diagnostics
  • Built-in VHF antenna splitter (shares antenna with radio)

📡 Antenna Connections

  • VHF antenna: SO-239 connector
  • GPS antenna: TNC connector

🌡 Environmental

  • Operating temperature: -15°C to +55°C
  • Storage: -20°C to +75°C
  • Waterproof rating: IPX6 / IPX7
  • Humidity: up to 93% @ 40°C

📏 Physical

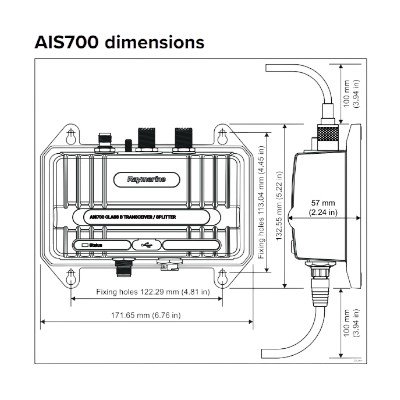

  • Dimensions: 171.6 × 132.5 × 57 mm
  • Compact “black box” design (no display)
