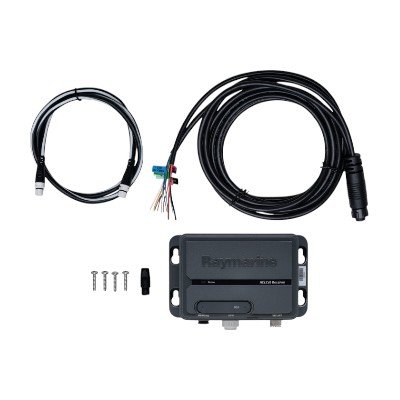

Raymarine, AIS350 Receiver

The Raymarine AIS350 is a receive-only AIS unit (not a transponder).
It receives AIS signals from nearby vessels but does NOT transmit your ship’s data.

👉 Used mainly on:

Small vessels
Yachts
Backup AIS monitoring systems
Dual-channel AIS receiver (Class A & Class B targets)
Displays AIS data on:
- Radar
- Chartplotter (MFD)
Built-in NMEA multiplexer for easy integration
SeaTalkNG / NMEA2000 / NMEA0183 / USB connectivity
LED status indicator
Water-resistant compact design (IPX2)

Technical Specification

🔹 General

Type: AIS Receiver (Receive only)
Function: Receives AIS data from nearby vessels (Class A & B)
Display: Output to radar / chartplotter (MFD)

🔹 Radio / Receiver

Channels:
- AIS 1: 161.975 MHz
- AIS 2: 162.025 MHz
Number of receivers: 2 (dual-channel)
Receiver sensitivity: −107 dBm

🔹 Electrical

Power supply: 12 – 24 V DC
Operating voltage: 9.6 – 31.2 V DC
Current consumption: < 200 mA
Power consumption: < 2 W

🔹 Interfaces

SeaTalkNG (NMEA2000)
NMEA 0183 (High & Low speed)
USB 2.0 (diagnostics / data)
VHF antenna connector: SO-239 coaxial

🔹 Physical & Environmental

Waterproof rating: IPX2
Operating temperature: −15°C to +55°C
Storage temperature: −20°C to +75°C
Humidity: up to 93% @ 40°C
Weight: ~280 g

There are no reviews yet.

Be the first to review “Raymarine, AIS350 Receiver”

Download

AIS350_Datasheet
