The NSR NFX-3000 is a marine weather facsimile receiver designed to receive, display and store weather charts broadcast by shore-based radio stations. It uses software-defined radio (SDR) technology, a 10.1-inch colour touchscreen and Android operating system. It supports scheduled reception, storage of up to 500 weather charts, and chart transfer or printing through compatible network and USB connections.

Technical Specification

Specification	Details
Make	NSR (New Sunrise Co., Ltd.)
Model	NFX-3000
Product Name	Weather Fax Receiver
Equipment Type	Marine Weather Facsimile Receiver
Application	Reception and display of marine weather charts
Origin Country	China
Operating System	Android
Display Type	Colour LCD touchscreen
Display Size	10.1 inches
Display Resolution	1280 × 800 pixels
RAM	2 GB
Number of Channels	1000+
Frequency Range	2–25 MHz
Reception Mode	F3C

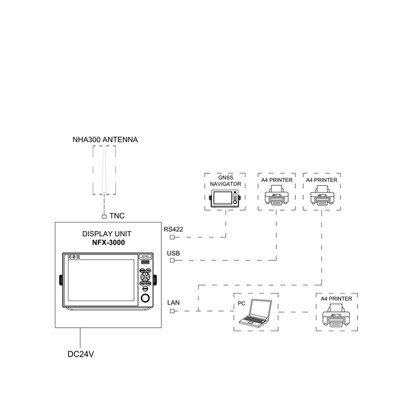

Interface	RS-422, USB, LAN
Scanning Speed	60, 90, 120, 180 and 240 rpm; manual or automatic selection
IOC (Index of Cooperation)	288 and 576; manual or automatic selection
Weather Chart Storage	Up to 500 charts
Reception Modes	Manual, station and schedule modes
Automatic Reception	Yes, with preset schedule
Chart Transfer	Via LAN to a computer
Printing Options	Direct USB printer, network printer or printing via computer
Power Supply	DC 24 V
Input Voltage Range	9–36 V DC
Display Unit Dimensions	189.8 × 321.3 × 100.6 mm (H × W × D)
Display Unit Weight	2.2 kg
Display Unit Protection	IP22
Antenna Protection	IP66
Antenna Model	NHA300 whip antenna (optional)
Antenna Connector	TNC
Applicable Standards	ISO 9876:2015 and IEC 60945
