The NSR NES-3010G Chart Plotter is a marine navigation device that combines electronic chart display and GNSS navigation, with AIS target presentation when used with a compatible AIS transponder. It can also operate independently as a GNSS chart plotter. The unit features a 10.1-inch touchscreen colour display and an Android operating system.
| Specification | Details |
|---|---|
| Make | NSR (New Sunrise Co., Ltd.) |
| Model | NES-3010G |
| Product Name | Chart Plotter |
| Equipment Type | Marine GNSS Chart Plotter |
| Main Functions | Electronic chart display, GNSS navigation and AIS target presentation |
| Operating System | Android |
| Display Type | Colour LCD touchscreen |
| Display Size | 10.1 inches |
| Display Resolution | 1280 × 800 pixels |
| Interfaces | RS-422 × 2, USB × 1, antenna connector × 1 |
| Power Supply | DC 24 V |
| Input Voltage Range | 9–36 V DC |
| Plotter Protection Rating | IP22 |
| GNSS Antenna Protection Rating | IP66 |

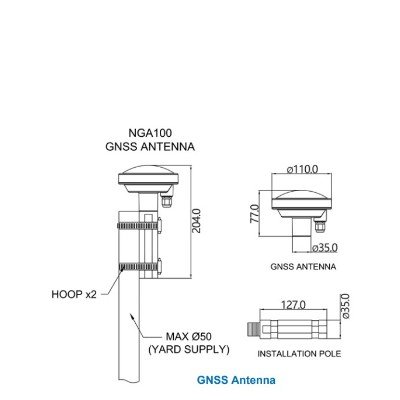

| Standard Accessories | NGA100 GNSS antenna and accessories |
| Optional Accessory | Flush-mounting bracket |
| Applicable Standards | IMO MSC.112(73), IEC 60945, IEC 61108-1, IEC 61162-1, as listed by the manufacturer |
| Origin Country | China |
