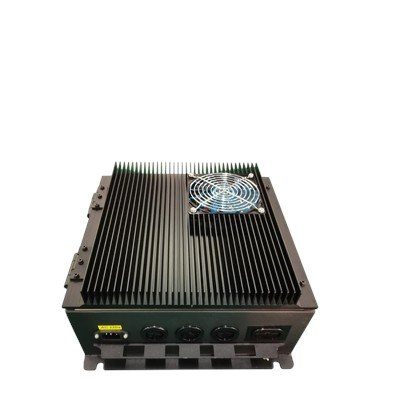

The NSR NES-3000 is a marine ECDIS designed to display electronic navigational charts together with navigation data from onboard sensors such as GPS, gyrocompass, speed log, radar and AIS. It supports route planning, CPA/TCPA calculations, AIS and ARPA radar overlays, and electronic navigation log functions. The system is offered with 19-inch, 24-inch or 26-inch displays, depending on configuration.
| Specification | Details |
|---|---|
| Make | NSR (New Sunrise Co., Ltd.) |
| Model | NES-3000 |
| Product Name | Electronic Chart Display and Information System (ECDIS) |
| Equipment Type | Marine Electronic Chart Navigation System |
| Application | Electronic chart display, route planning and navigation monitoring |
| Origin Country | China |

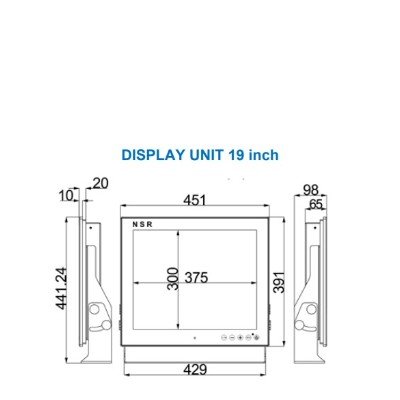

| Display Sizes | 19 inch / 24 inch / 26 inch |
| Display Type | Colour LCD |
| Touchscreen Operation | Supported, depending on configuration |
| Display Resolution (19 inch) | 1280 × 1024 pixels |
| Display Resolution (24 / 26 inch) | 1920 × 1080 pixels |
| Main Processor | Intel Core i5 |
| RAM | 8 GB DDR4 |
| Storage | 128 GB SSD |
| NMEA Interfaces | 8 ports |
| RS-232 Interfaces | 2 ports |
| USB Interfaces | 4 ports |
| LAN Interfaces | 2 ports |
| HDMI Interface | 1 port |
| VGA Interface | 1 port |
| Power Supply | AC 110 V / 220 V |

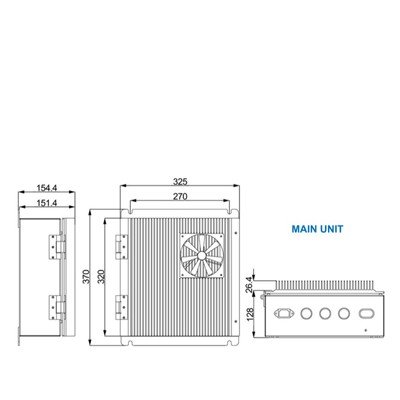

| Main Unit Dimensions | 325 × 370 × 154.4 mm (W × H × D) |
| Main Unit Weight | 12 kg |
| Main Unit Protection Rating | IP22 |
| Display Weight (19 inch) | 8.25 kg |
| Display Weight (24 inch) | 9.8 kg |
| Display Weight (26 inch) | 12.5 kg |
| Operation Method | Trackball and keyboard |
| Electronic Chart Format | ENC |
| Chart Update Method | USB |
| AIS Overlay | Supported |
| ARPA Radar Overlay | Supported |
| Route Planning | Multiple route planning |
| CPA/TCPA Calculation | Supported |
| Electronic Navigation Log | Supported |
| UKHO Admiralty Information Overlay (AIO) | Compatible |
| Mounting | Tabletop or flush mounting |
| Type Approval | CCS |
| Applicable Standards | IMO MSC.232(82), IMO MSC.191(79), IEC 61174, IEC 62288 and IHO S-52 |
