The NSR NES-1000 ECS (Electronic Chart System) is a marine navigation system designed to display electronic nautical charts and assist with route planning and voyage monitoring. It integrates navigation data from onboard sensors, including GNSS/GPS, AIS, heading sensors and other compatible equipment, to provide navigational information on a colour display. The system supports chart zooming, AIS target monitoring, CPA/TCPA alerts and electronic chart updates, helping operators improve situational awareness and navigation efficiency. Unlike a type-approved ECDIS, an ECS does not automatically satisfy the mandatory ECDIS carriage requirements for SOLAS vessels.

Technical Specification

Specification	Details
Make	NSR (New Sunrise Co., Ltd.)
Model	NES-1000
Product Name	ECS (Electronic Chart System)
Equipment Type	Marine Electronic Chart System
Application	Electronic chart display, route planning and navigation monitoring
Origin Country	China
Display Size	19 inches
Display Type	Colour LCD, touchscreen
Display Resolution	1280 × 1024 pixels
Display Colour	16.7 million colours (6-bit + FRC)
Display Protection	Bonding glass
Operating System	Android (current manufacturer brochure)
Power Supply	DC 24 V
Input Voltage Range	10–36 V DC

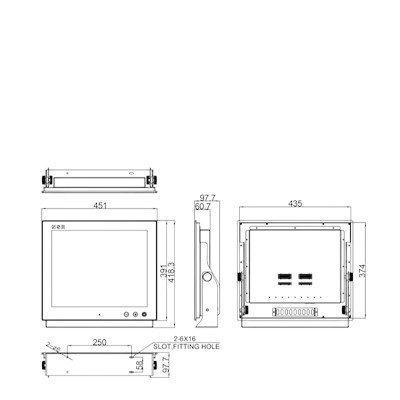

Main Unit Dimensions	451 × 418.3 × 97.7 mm (W × H × D)
Main Unit Weight	14 kg

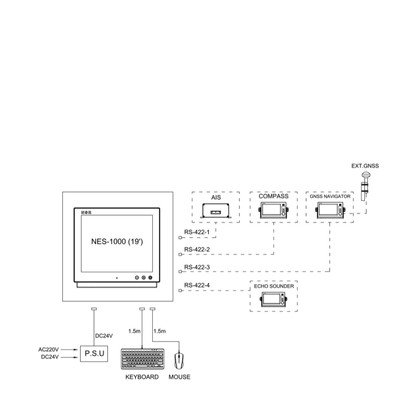

Interfaces	RS-232 × 2, RS-422 × 4, standby RS-422 × 4, USB × 2, LAN × 2, DI/DO × 2, HDMI × 1
Chart Format	ENC; supports AVCS ENC
Chart Standard	IHO S-52
Chart Update Method	USB
Navigation Data Display	Position, COG, SOG and heading
AIS Target Display	AIS Class A, AIS Class B, AIS AtoN, AIS Base Station and AIS MOB
AIS Alert Function	CPA/TCPA
Route Planning	Supported
Chart Zoom	Continuous zoom
Sensor Inputs	GNSS, AIS, heading, VDR and echo sounder data
Operation Method	Touchscreen, keyboard and mouse
Built-in Power Supply	Wide-range isolated power supply
Interface Isolation	Isolated interfaces
Protection Rating	IP22
Compass Safe Distance	≥ 0.88 m
Type Approval	CCS
Applicable Standards	IEC standards and IHO S-52
