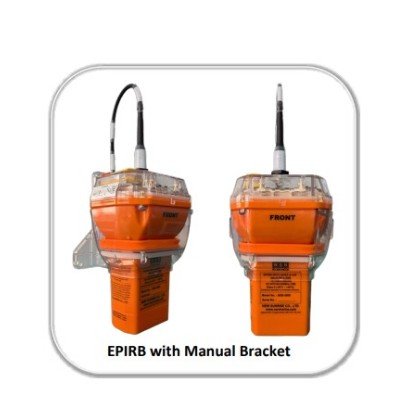

The NSR NEB-3000 AIS EPIRB is designed to transmit maritime distress alerts and position information to support search-and-rescue operations. It combines satellite distress transmission at 406 MHz with AIS position broadcasting and a 121.5 MHz homing signal. Its built-in GNSS receiver provides position data, while RLS provides a return-link capability. The beacon supports manual activation and automatic deployment from a float-free enclosure.
| Specification | Details |
|---|---|
| Make | NSR (New Sunrise Co., Ltd.) |
| Model | NEB-3000 |
| Product Name | AIS EPIRB |
| Equipment Type | Emergency Position-Indicating Radio Beacon |
| Application | Marine distress alert and search-and-rescue operations |
| Origin Country | China |
| Satellite System | COSPAS-SARSAT |
| IMO Standard | IMO MSC.471(101) |
| 406 MHz Transmitter Frequency | 406.031 MHz ± 1 kHz |
| 406 MHz Output Power | 5 W |
| AIS Frequency AIS 1 | 161.975 MHz |
| AIS Frequency AIS 2 | 162.025 MHz |
| AIS Output Power | 1 W |
| Homing Transmitter Frequency | 121.5 MHz |
| Homing Output Power | 50 mW |
| GNSS Receiver | Built-in GNSS antenna |
| Supported GNSS Systems | GPS, BDS, GLONASS, Galileo |
| Position Accuracy | Within 10 m (manufacturer-stated) |
| Return Link Service (RLS) | Supported |
| Case Material | Special ABS + PC |
| Case Colour | High-visibility orange |
| Buoyant | Yes |
| Watertightness | 10 m depth for at least 5 minutes |
| Beacon Dimensions | 116.2 × 491.0 × 102.4 mm (W × H × D) |
| Container Dimensions | 220.0 × 363.4 × 140.8 mm (W × H × D) |
| Manual Bracket Dimensions | 123.0 × 133.3 × 118.4 mm (W × H × D) |
| Beacon Weight | 730 g |
| Container Weight | 1.4 kg |
| Manual Bracket Weight | 160 g |
| Battery Model | NBT400C |
| Battery Storage Life | Up to 10 years from manufacture |
| Operating Life | At least 48 hours at −20°C |
| Automatic Release Depth | Maximum 4 m |

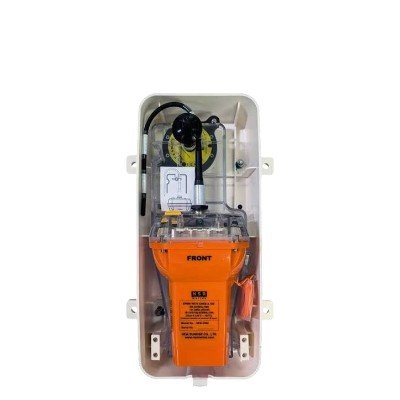

| Deployment | Automatic hydrostatic release or manual activation |
| Strobe Light | White LED |
| Strobe Flash Rate | 20 flashes per minute |
| Night-vision Indicator | Infrared LED |
| Operating Temperature | −20°C to +55°C |
| Storage Temperature | −40°C to +70°C |
| Standard Compass Safe Distance | 0.30 m |
| Steering Compass Safe Distance | 0.20 m |
| Self-Test Function | Yes |
| False-Alert Protection | Yes |
| User Data Programming | Infrared communication |
| Type Approvals | COSPAS-SARSAT, DNV (MED) and CCS |
