The NSR AM-100 Anemometer is a marine wind-measuring system designed to measure and display wind speed and wind direction onboard vessels. It consists of a wind transmitter, display unit and junction box. The system provides wind information to help ship officers monitor weather conditions during navigation and manoeuvring. When connected to compatible gyrocompass and speed-log inputs, it can also calculate true wind data. Its NMEA 0183 / RS-422 interfaces allow wind information to be shared with compatible bridge navigation equipment.
| Specification | Details |
|---|---|
| Make | NSR (New Sunrise Co., Ltd.) |
| Model | AM-100 |
| Product Name | Marine Digital Anemometer |
| Equipment Type | Wind Speed and Direction Measuring System |
| Application | Measurement and display of wind speed and direction onboard vessels |
| Wind Direction Range | 0°–360° |
| Wind Speed Range | 0–60 m/s |
| Wind Direction Accuracy | ±5° |
| Wind Speed Accuracy | ±(0.5 + V × 5%) m/s |
| Power Supply | AC 100–240 V |
| Output Data | NMEA 0183, RS-422, 6 output ports |
| Output Baud Rate | 4800 bps |
| Input Signals | Gyro compass and speed log via NMEA 0183 / RS-422 |
| True Wind Measurement | Supported when connected to suitable heading and speed inputs |
| Maximum Display Units | 4 |
| Outdoor Operating Temperature | −30°C to +70°C |
| Indoor Operating Temperature | −15°C to +55°C |

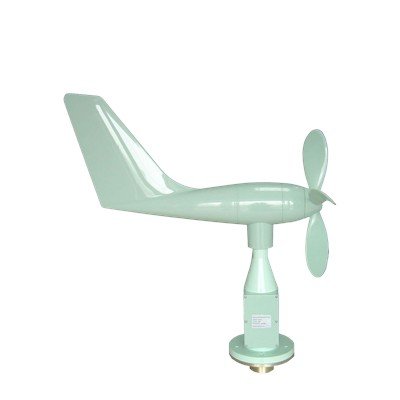

| Transmitter Dimensions | 627 × 605 mm; propeller diameter 243 mm |
| Transmitter Weight | 4.3 kg |
| Protection Rating | IP22 for display unit, junction box and remote button; IP66 for transmitter and watertight box |

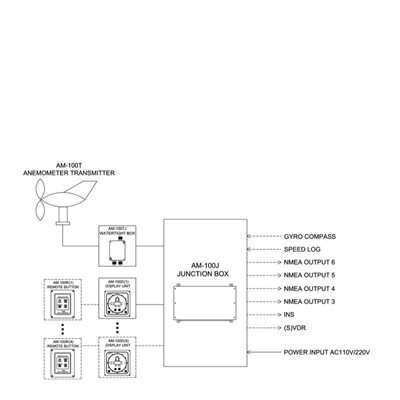

| Standard Components | AM-100T transmitter, AM-100D display unit, AM-100J junction box, AM-100TJ watertight box and accessories |
| Optional Accessories | AM-100R remote button, additional AM-100D display unit and cables |
| Type Approval | CCS type approval listed by manufacturer |
| Origin Country | China |
