Nauticast, B2 AIS Class-B Transponder
Nauticast, B2 AIS Class-B Transponder - Image 2
Nauticast, B2 AIS Class-B Transponder - Image 3

Nauticast, B2 AIS Class-B Transponder

$800.00Earn 800 points!

Add To Wishlist
Remove From Wishlist
Categories , , Tag Brand:

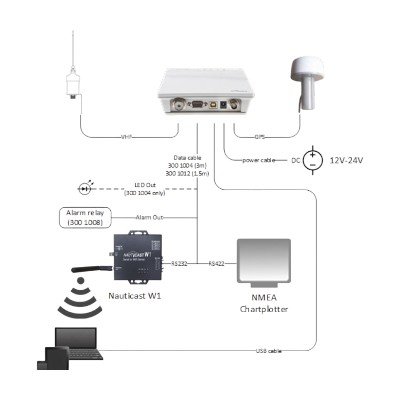

The Nauticast B2 is a fully certified class B AIS Transponder exceeding all relevant specifications. Developed and manufactured in Austria/Europe, based upon 20 years of experience, it features a striking and practical design with a detachable mounting plate. It will integrate seamlessly into any marine network with various connectivity options. Connected to a Nauticast W1 WiFi server it will also stream data to laptops, tablets, mobiles or other WiFi devices.

Technical Specification

  • Model Nauticast B2
  • Size: 195x145x35mm
  • Power: 12VDC (24VDC) 3W avg. consumption, 12W peak consumption, 1A (0,5A) peak current
  • Environmental: “Protected” (EC 60945-Ed.4), -15 °C to 55 °C
  • VHF Tx: 1 Transmitter Frequency 161-162 MHz, Output power 2W nominal
  • VHF Rx: 2 AIS Receivers, 1 DSC Receiver, Frequency 156–162MHz, Sensitivity @ -111dBm < 20% PER
  • Interfaces: RS232, RS422, USB
  • GPS: Internal Receiver 48 Channels, 1 Hz Update rate, 5V DC antenna feed, IEC61108-1 compliant
  • 5 LEDs: Single or multicolour, indicating the operational and error status.

There are no reviews yet.

Be the first to review “Nauticast, B2 AIS Class-B Transponder”

Your email address will not be published. Required fields are marked *

Download

EN B2 Product Sheet
