The Marinelite EML9000 Electromagnetic Speed Log is a professional marine navigation instrument designed to accurately measure a vessel’s Speed Through Water (STW) and calculate the total distance traveled. Utilizing advanced electromagnetic sensing technology based on Faraday’s Law of Electromagnetic Induction, the EML9000 delivers fast, stable, and highly accurate speed measurements without relying on moving mechanical parts. This design ensures reliable operation with minimal maintenance and excellent performance in a wide range of sea conditions.

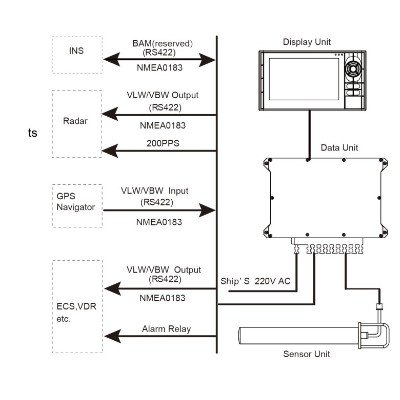

The system features a 7-inch color touchscreen display that provides real-time speed, trip distance, total mileage, and system status information in a clear, user-friendly interface. It incorporates built-in diagnostic functions and alarms for sensor faults, power failure, overspeed, and system abnormalities, enhancing navigational safety and operational reliability. The EML9000 supports NMEA 0183 communication, enabling seamless integration with ECDIS, Radar, AIS, Autopilot, Voyage Data Recorder (VDR), GPS, and Integrated Bridge Systems (IBS).
Designed for commercial cargo ships, tankers, offshore support vessels, ferries, fishing vessels, and research ships, the Marinelite EML9000 offers rugged marine-grade construction with waterproof and corrosion-resistant components for continuous operation in harsh marine environments. Its high measurement accuracy, simple installation, and dependable performance make it an ideal solution for modern ship navigation and voyage monitoring.
| Parameter | Specification |
|---|---|
| Model | Marinelite EML9000 |
| Equipment Type | Electromagnetic Speed Log |
| Measurement Principle | Faraday’s Law of Electromagnetic Induction |
| Measured Parameter | Speed Through Water (STW) |
| Speed Range | -99.9 to +99.9 knots |
| Speed Resolution | 0.1 knot |
| Speed Accuracy | Better than ±0.2 knots or ±2% of reading (whichever is greater) |
| Distance Range | 0 to 9,999.9 nautical miles |
| Distance Resolution | 0.1 nautical mile |
| Distance Accuracy | Better than ±2% or ±0.2 nm/hour (whichever is greater) |
| Display | 7-inch Color TFT Touchscreen LCD |
| Display Functions | STW, Total Distance, Trip Distance, System Status, Alarms |
| Measurement Method | Electromagnetic sensor with no moving parts |
| Interface | NMEA 0183 (200 PPS) |
| Output Sentences | Speed Through Water (STW), Distance Data |
| Power Supply | 24 VDC or 100–240 VAC, 50/60 Hz (depending on installation configuration) |
| Alarm Functions | Power Failure, Sensor Fault, System Error, Overspeed Alarm |
| Operating Temperature | -15°C to +55°C |
| Storage Temperature | -20°C to +70°C |
| Relative Humidity | Up to 93% RH (non-condensing) |
| Protection Rating | Marine-grade waterproof and corrosion-resistant sensor |
| Installation | Hull-mounted electromagnetic sensor |
| Communication | Compatible with ECDIS, Radar, AIS, GPS, Autopilot, VDR, IBS |
| Maintenance | Low maintenance, no mechanical moving parts |
| Applications | Cargo Ships, Tankers, Offshore Vessels, Tugboats, Fishing Vessels, Ferries, Research Vessels |
