The JRC JUE-87 is an Inmarsat-C Mobile Earth Station (MES), Class 2, designed for global maritime satellite data communication and GMDSS safety services. It supports commercial, operational and personal messaging as well as distress and safety communications. The terminal includes Enhanced Group Calling (EGC), LRIT, self-diagnostics, remote maintenance capability, and interfaces for navigation, alarms, AIS, distress and security functions. An SSAS function can be added using the optional security button system.
| Parameter | Specification |
|---|---|
| Manufacturer | JRC – Japan Radio Co., Ltd. |
| Model | JUE-87 |
| Equipment Type | Inmarsat-C Mobile Earth Station (MES) |
| Inmarsat Type Approval | Class 2 |
| Satellite Service | Inmarsat-C |
| Primary Applications | GMDSS distress and safety communication, vessel messaging and data communication |
| EGC Capability | Standard |
| LRIT | Standard |
| SSAS | Optional security button / SSAS configuration |
| Display | 10.4-inch colour LCD |
| Display Resolution | 640 × 480 pixels |
| Display Brightness | 450 cd/m² |
| Transmit Frequency | 1626.5–1646.5 MHz |
| Receive Frequency | 1537.0–1544.2 MHz |
| Channel Spacing | 5 kHz |
| EIRP | 14 ±2 dBW at 5° elevation |
| G/T | Minimum -23.0 dB/K |
| Modulation | TX/RX: 1200 symbols/s BPSK |
| Data Rate | TX/RX: 600 bps |
| Internally Mounted Equipment (IME) | NTF-318 |
| External Mounted Equipment (EME) | NAF-253GM |
| Antenna Type | Helical |
| Antenna Radiation Pattern | Hemispherical |
| Polarization | Right-hand circular |
| Printer | NKG-900 |
| Printer Interface | Parallel |

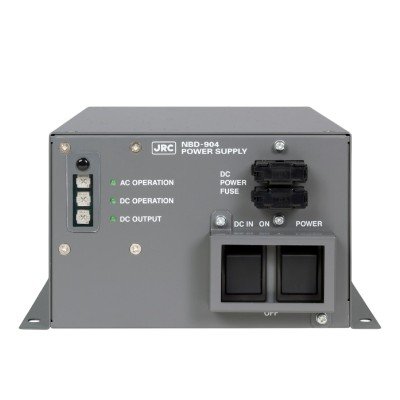

| External Power Supply | NBD-904 |
| IME Power Supply | 24 VDC (19.2–31.2 VDC) |
| IME Power Consumption – Transmit | Approx. 100 W |
| IME Power Consumption – Standby | Approx. 15 W |
| External Power Supply Input | 100–230 VAC, single phase, 50/60 Hz, or 24 VDC |
| External Power Supply Input Range | 90–264 VAC / 19.2–31.2 VDC |
| External Power Supply Output | 24 VDC, 6.5 A continuous |

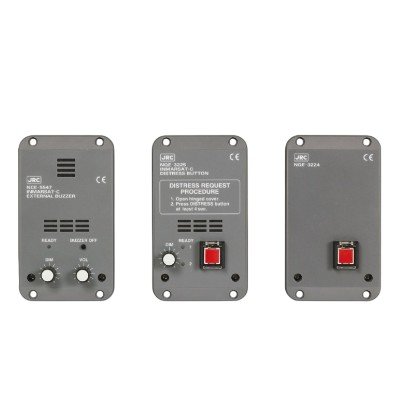

| External Buzzer Interface | 3 ports maximum |
| Remote Distress Button Interface | 2 ports maximum |
| Security Button Interface | 4 ports maximum |
| GPS Input | 1 × NMEA port |
| Alarm Output – Dry Contact | 1 port |
| Alarm Output – NMEA | 1 port |
| Alarm / AIS Input | 1 × NMEA port |
| LAN Interface | 1 × RJ45 port |
| DTE Interface | 1 × Serial port |
| Keyboard Interface | 1 port |
| Printer Interface | 1 port |
| Additional Serial Interface | 1 port |
| Distress Message Controller | 1 port |
| USB Interface | USB 2.0 port for message storage/loading |
| EME Operating Temperature | -35°C to +55°C |
| IME Operating Temperature | -15°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | 0–95%, non-condensing |
| Icing Resistance | Up to 25 mm on EME |
| Precipitation Resistance | Up to 100 mm/hour |
| Wind Resistance | Up to 100 knots |
| Self-Diagnostics | Built-in diagnostic and performance verification functions |
| Remote Maintenance | Compatible with JRC Remote Maintenance System (RMS) |
| EME Weight | Approx. 2.4 kg |
| IME Weight | Approx. 7.1 kg |
| Printer Weight | Approx. 4.8 kg |
| External Power Supply Weight | Approx. 2.6 kg |
