The JRC JFE-700 is a modern digital marine echo sounder designed for SOLAS vessels to provide accurate and continuous measurement of water depth beneath a ship. It is an upgraded system compared to older models (like JFE-570), featuring advanced digital processing, LCD display, and data storage.
| Parameter | Specification |
|---|---|

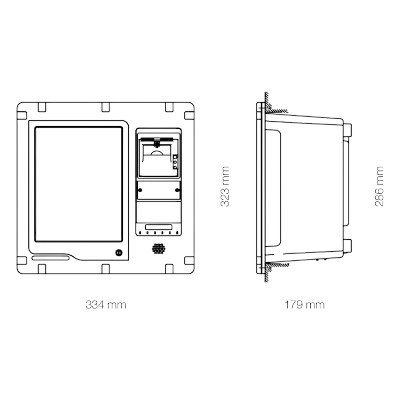

| Display Type | 10.4-inch color TFT LCD (touch panel) |
| Resolution | 1024 × 768 (XGA) |
| Echo Presentation | 8 colors or 8-level monochrome |
| Frequency | 50 kHz / 200 kHz (dual frequency) |
| Depth Range (Scale) | 5, 10, 20, 50, 100, 200, 500, 800 m |
| Minimum Depth | 1.0 m (200 kHz), 2.0 m (50 kHz) |
| Depth Accuracy | ±0.5 m (20 m range); ±2.5% or ±5 m (200 m range) |
| Digital Depth Display | 3-digit readout (0.1 m resolution <100 m) |
| Draft Adjustment | 0–50 m (0.1 m steps) |
| Pulse Repetition Rate (PRR) | 171 PRR (5–50 m), 86 PRR (100–200 m), 43 PRR (500–800 m) |
| Display Modes | Standard / History / Docking |
| Echo Time Scale | 5, 10, 20, 30 minutes |
| Memory Capacity | Up to 48 hours data recording & playback |
| Auto Functions | Auto gain, auto range, interference rejection |
| Alarm Functions | Depth alarm, power failure alarm, system error |
| Navigation Data Input | NMEA 0183 (RMC, GGA, GLL, ZDA) |
| Power Supply | 100–115 / 200–230 VAC ±15%, 50/60 Hz |
| DC Supply | 24 VDC (monitoring only) |
| Power Consumption | ~120 VA (100V), ~175 VA (220V) |
| Operating Temperature | −15°C to +55°C |
| Humidity | Up to 93% at 40°C |

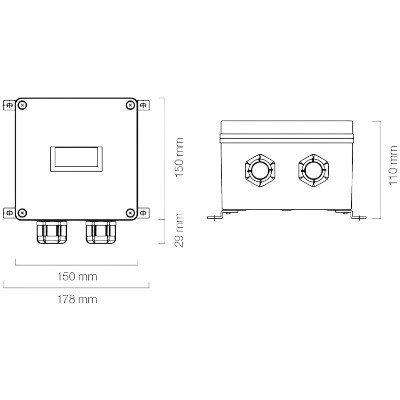

| Waterproof Rating | Display: IP22 / Matching box: IP55 |

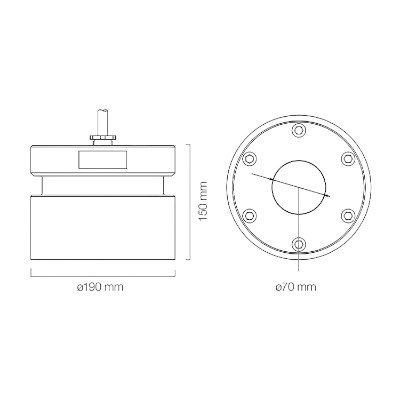

| Transducers | 200 kHz: NKF-349, 50 kHz: NKF-350 |
| Printer | Built-in (JFE-700 model) |
| Compliance | IMO MSC.74(69) Annex 4 |
