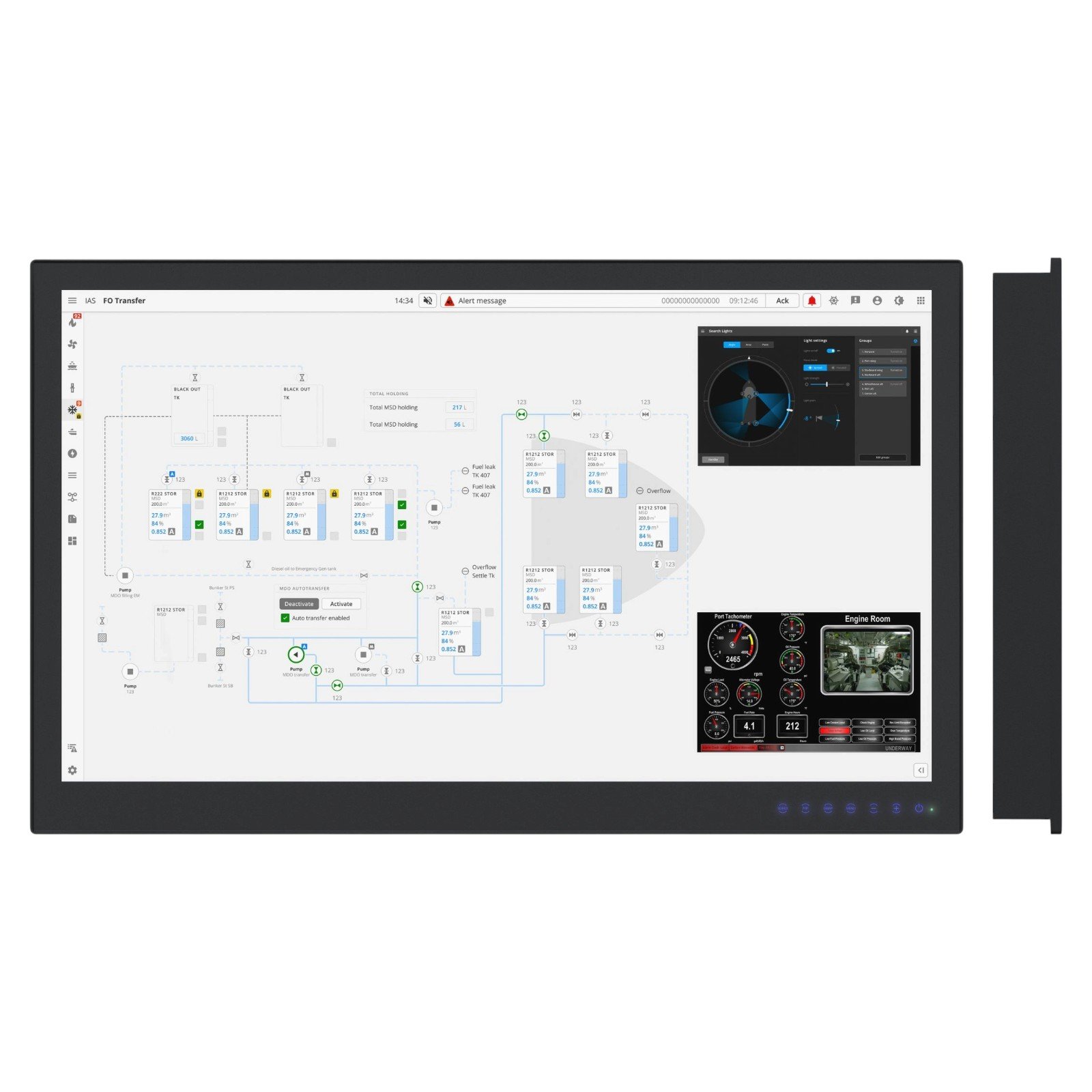

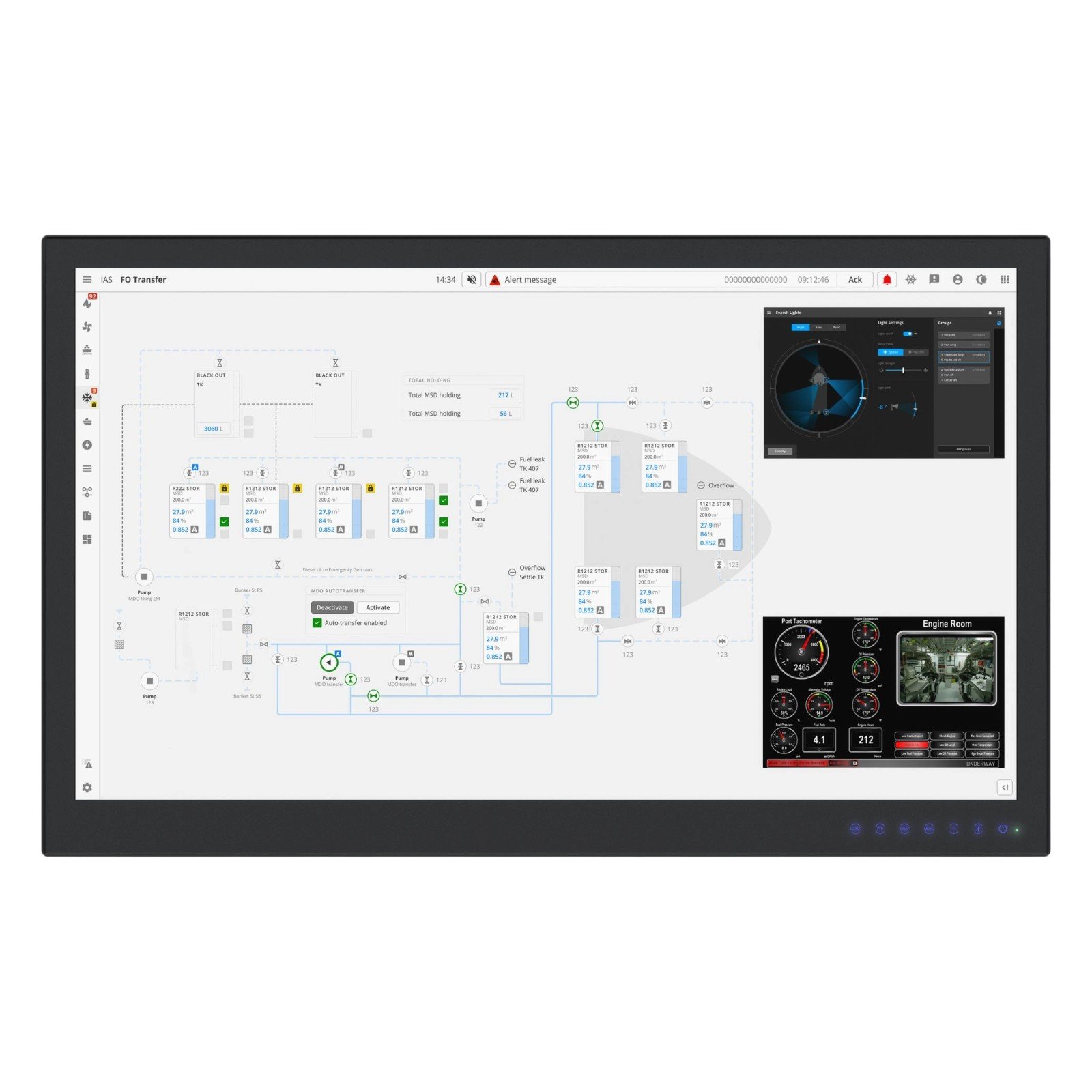

The Hattland ED 32T01 UHD is a professional 32-inch widescreen 4K Ultra HD marine-grade LCD monitor engineered by Hatteland Technology (Jakob Hatteland Display) in Norway. As part of the ENIX Pro Series ED line, this display is purpose-built for high-end integrated bridge systems, advanced ECDIS chartplotters, tactical command-and-control platforms, and multi-channel CCTV monitoring.
Featuring an advanced AHVA active-matrix liquid crystal panel with LED backlighting, the ED 32T01 UHD delivers native 3840 x 2160 4K resolution with brilliant color accuracy (1.07 billion colors) and wide 178° viewing angles. Built with high-durability anti-glare protective glass and robust thermal engineering, the monitor supports smooth 0% to 100% continuous dimming for night operations. Multiple digital video inputs (DisplayPort 1.2a, HDMI 2.0, DVI) provide seamless interfacing with modern navigation computers and black-box radar systems.
Key Features:
• 32-Inch 4K Ultra HD Display: Native 3840 x 2160 resolution in a 16:9 widescreen format providing immense screen real estate for multi-window ECDIS and conning displays.
• Full-Range Deep Dimming (0 cd/m²): Flicker-free backlight adjustment from maximum daylight brightness down to absolute zero for light-sensitive night-watch wheelhouse conditions.

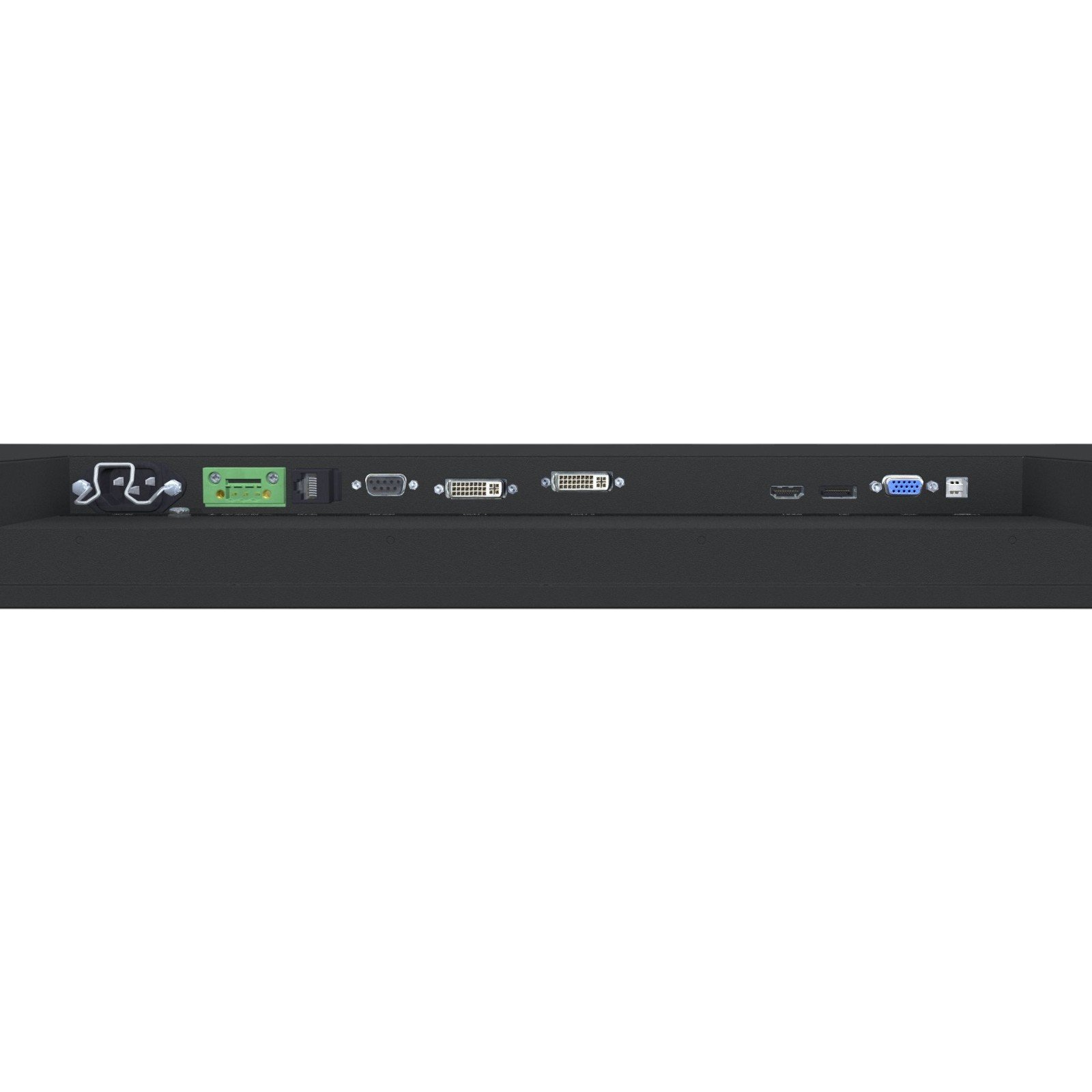

• Advanced Connectivity Suite: Includes DisplayPort 1.2a (supporting 4K @ 60Hz), HDMI 2.0, DVI-D, and VGA inputs alongside USB touch interfaces and serial remote control.
• Multi-Power Flexibility: Accepts universal 100–240V AC power as well as 24V DC nominal shipboard power.
• Marine Class Approval & IEC 60945 Compliance: Engineered to withstand rigorous maritime environmental conditions, vibration, and electromagnetic interference.
| Attribute | Specification Details |
| Manufacturer | Hatteland Technology AS (Jakob Hatteland Display) |
| Model / Part Number | ED 32T01 UHD (ENIX Pro Series ED) |
| Item Type | 32-Inch Widescreen 4K UHD Professional Marine Display / ECDIS Monitor |
| Screen Size & Aspect Ratio | 32.0-inch diagonal (16:9 widescreen aspect ratio) |
| Native Resolution | 4K Ultra HD (3840 x 2160 pixels @ 60Hz) |
| Active Display Area | 711.50 mm (H) x 401.50 mm (V) |
| Panel Technology | AHVA TFT LCD with LED Backlight (RGB vertical stripe) |
| Brightness & Contrast | 350 cd/m² (typical); Contrast ratio 1000:1 (typical) |
| Dimming Range | 0% to 100% continuous dimming (down to 0 cd/m²) |
| Video Inputs | 1x DisplayPort 1.2a (Max 3840×2160@60Hz), 1x HDMI 2.0 (Max 3840×2160@30Hz), 2x DVI-D, 1x VGA (15-pin D-sub) |
| Control & Interfacing | Touch keypad, RS-232 serial command, RJ-45 Ethernet GPIO remote control interface |
| Operating Power Supply | Multi-power AC/DC: 100V–240V AC (50/60 Hz) + 24V DC nominal |
| Power Consumption | Approx. 51W typical (60W max) |
| Enclosure & Mounting | Slim aluminum chassis; Flush panel mount, VESA 100×100 / 100×200 mm |
| Operating Temperature | -5°C to +45°C (+23°F to +113°F) |
| Ingress Protection | IP65 front panel (when flush mounted); IP22 rear enclosure |
| Compliance & Standards | IEC 60945 (Marine Environmental & EMC), IACS E10, CE, RoHS |
| Application | Primary 4K bridge display for multi-function ECDIS, radar navigation, conning displays, and CCTV systems |
| Country of Origin | Norway |
