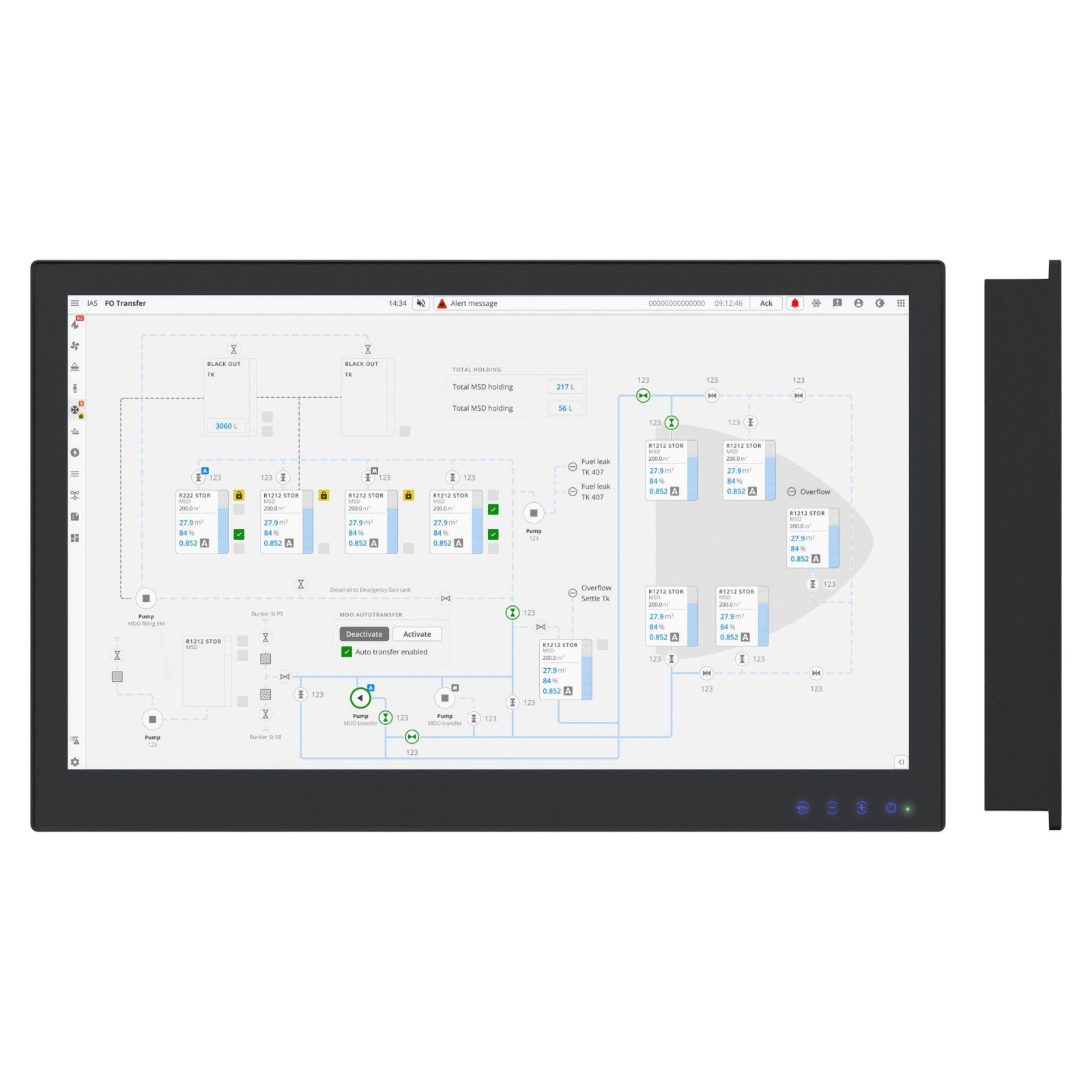

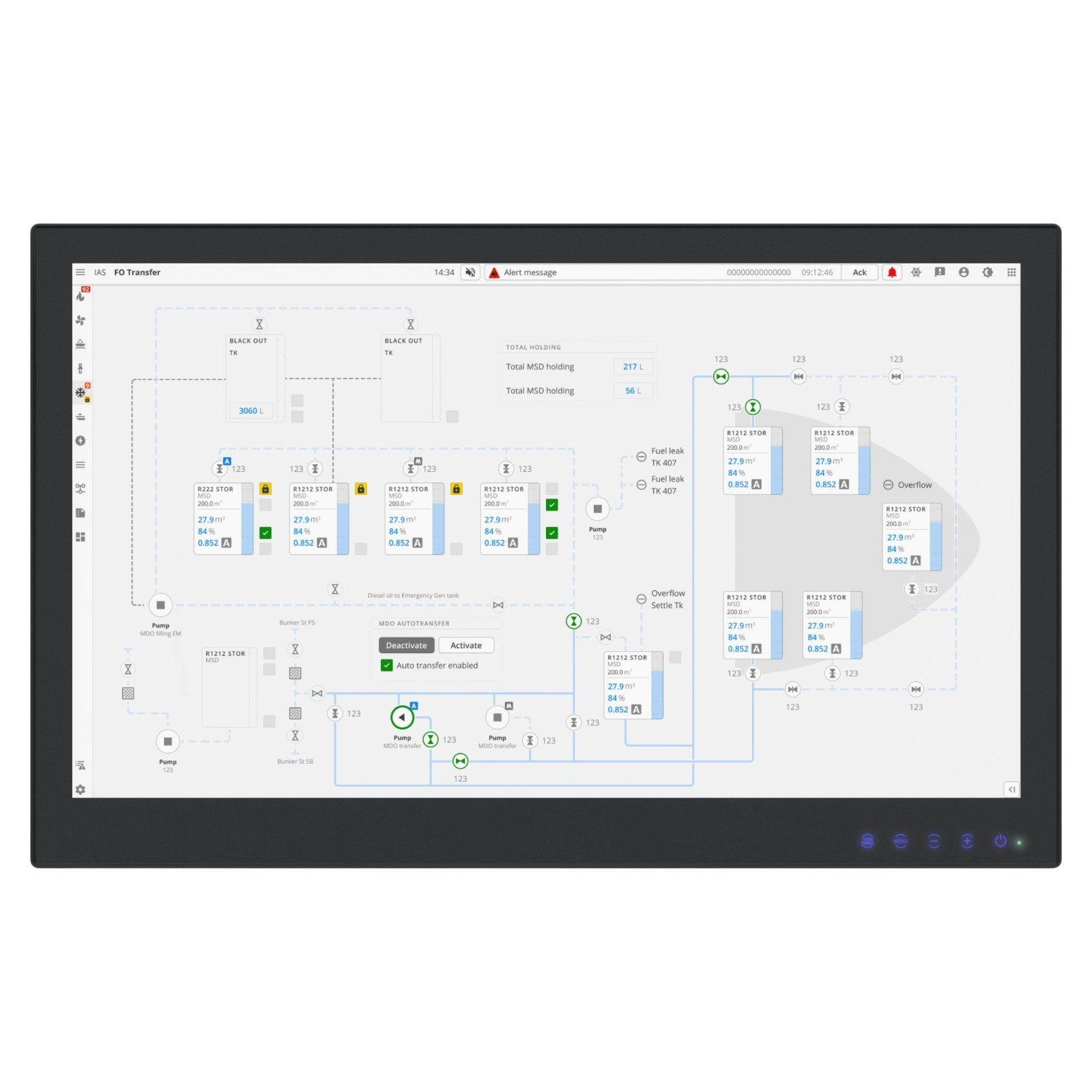

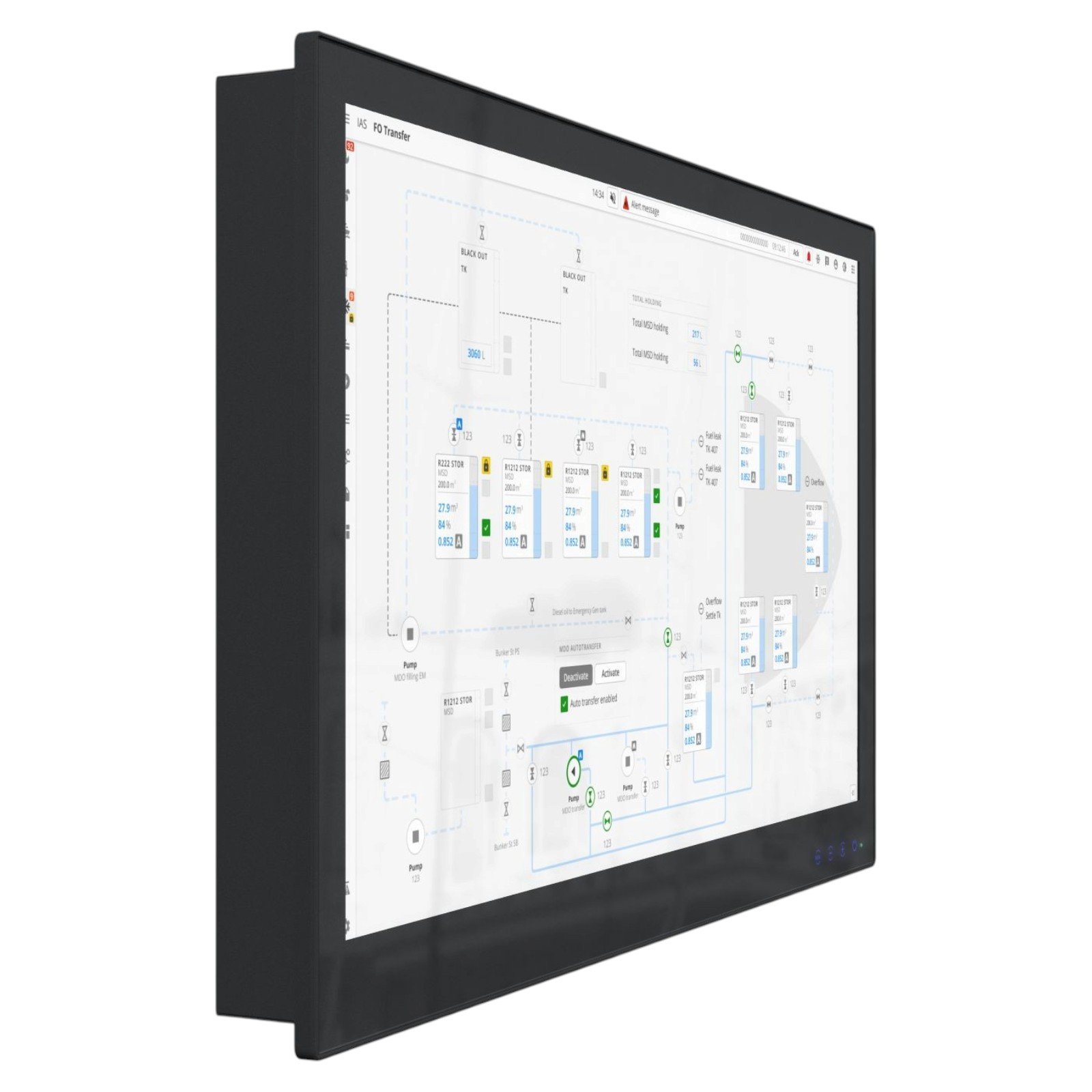

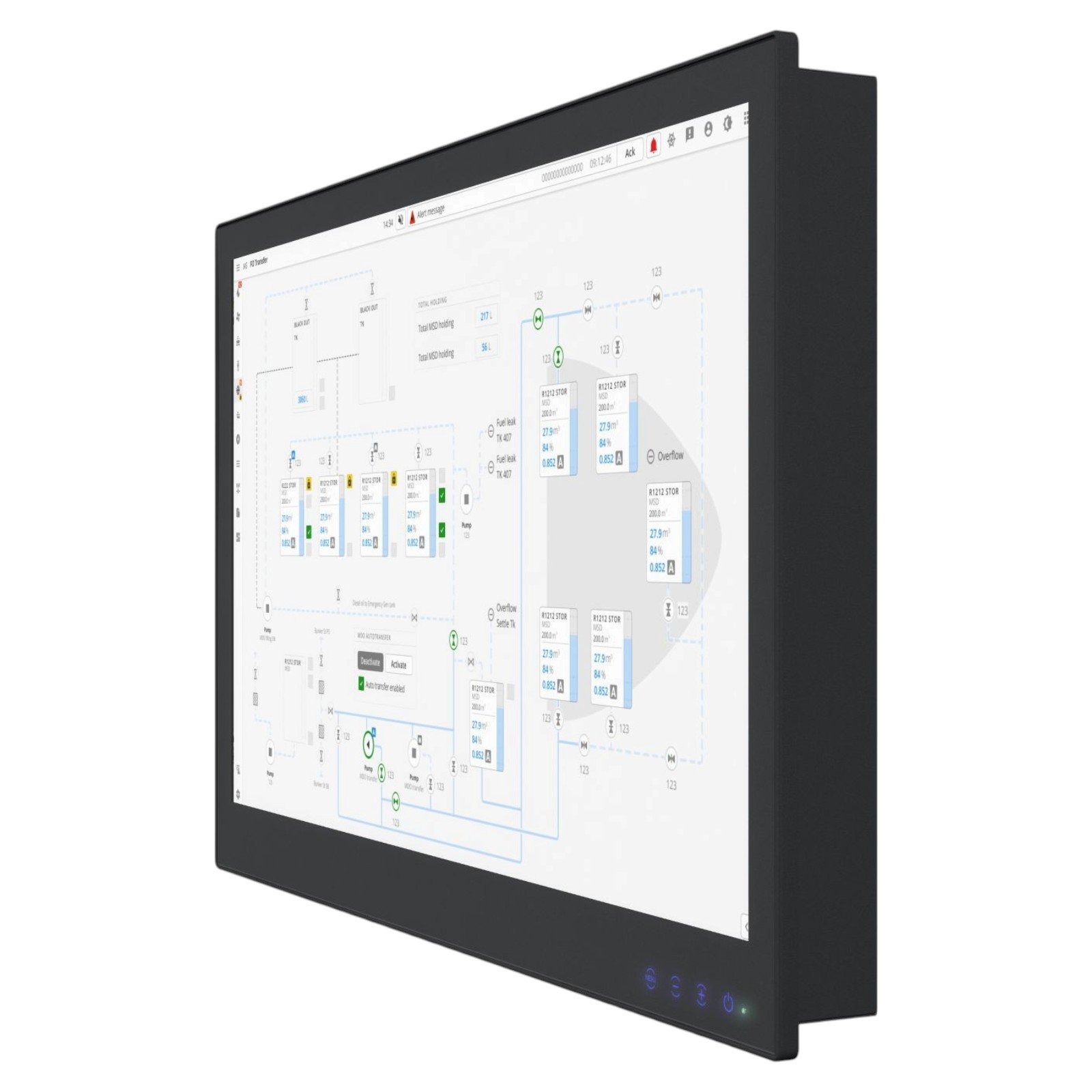

The Hattland ED 27T01 FHD is a large-format 27-inch widescreen Full HD marine-grade LCD monitor manufactured by Hatteland Technology (Jakob Hatteland Display) in Norway. Purpose-built for integrated bridge systems, multi-display ECDIS chartplotters, advanced radar command stations, and vessel automation control rooms, this 27-inch display delivers expansive screen real estate and exceptional visual performance under harsh maritime conditions.
Featuring a 16:9 widescreen LED-backlit LCD panel, the ED 27T01 FHD provides crystal-clear 1920 x 1080 Full HD resolution, high contrast ratios, and wide horizontal and vertical viewing angles. Built with optical glass bonding and anti-reflective surface treatment, the monitor minimizes ambient glare and prevents internal condensation. Full-range continuous dimming from 100% brightness down to 0% ensures zero-glare night navigation without blinding wheelhouse personnel, while versatile multi-signal video inputs (DVI, VGA, DisplayPort/HDMI options) allow seamless integration with shipboard computers and black-box navigation processors.
Key Features:
• 27-Inch Widescreen Full HD Display: Native 1920 x 1080 resolution in an expansive 16:9 widescreen format ideal for complex multi-window ECDIS layouts and bridge monitoring.
• Full-Range Deep Dimming (0–100%): Smooth, flicker-free backlight control from maximum daytime daylight visibility down to complete blackout for night operations.
• Optically Bonded Anti-Reflective Glass: Durable front protection glass reduces reflection, eliminates optical distortion, and shields the LCD matrix.
• Multi-Signal Bridge Connectivity: Universal input support including DVI-D, Analog RGB (VGA), and digital video feeds for robust black-box navigation interfacing.
• Marine Class Approved & IEC 60945 Compliant: Engineered to withstand heavy continuous engine vibration, high humidity, electromagnetic interference, and temperature extremes.
| Attribute | Specification Details |
| Manufacturer | Hatteland Technology AS (Jakob Hatteland Display) |
| Model / Part Number | ED 27T01 FHD (ED27T01 Series – Full HD) |
| Item Type | 27-Inch Widescreen Professional Marine Display / Bridge Monitor |
| Screen Size & Aspect Ratio | 27.0-inch diagonal (16:9 widescreen aspect ratio) |
| Native Resolution | Full HD (1920 x 1080 pixels) |
| Active Display Area | 597.88 mm (H) x 336.31 mm (V) |
| Brightness & Contrast | Approx. 300–400 cd/m² (Nits); Contrast ratio 1000:1 typical |
| Dimming Range | 0% to 100% continuous dimming via front-panel controls or rotary encoder |

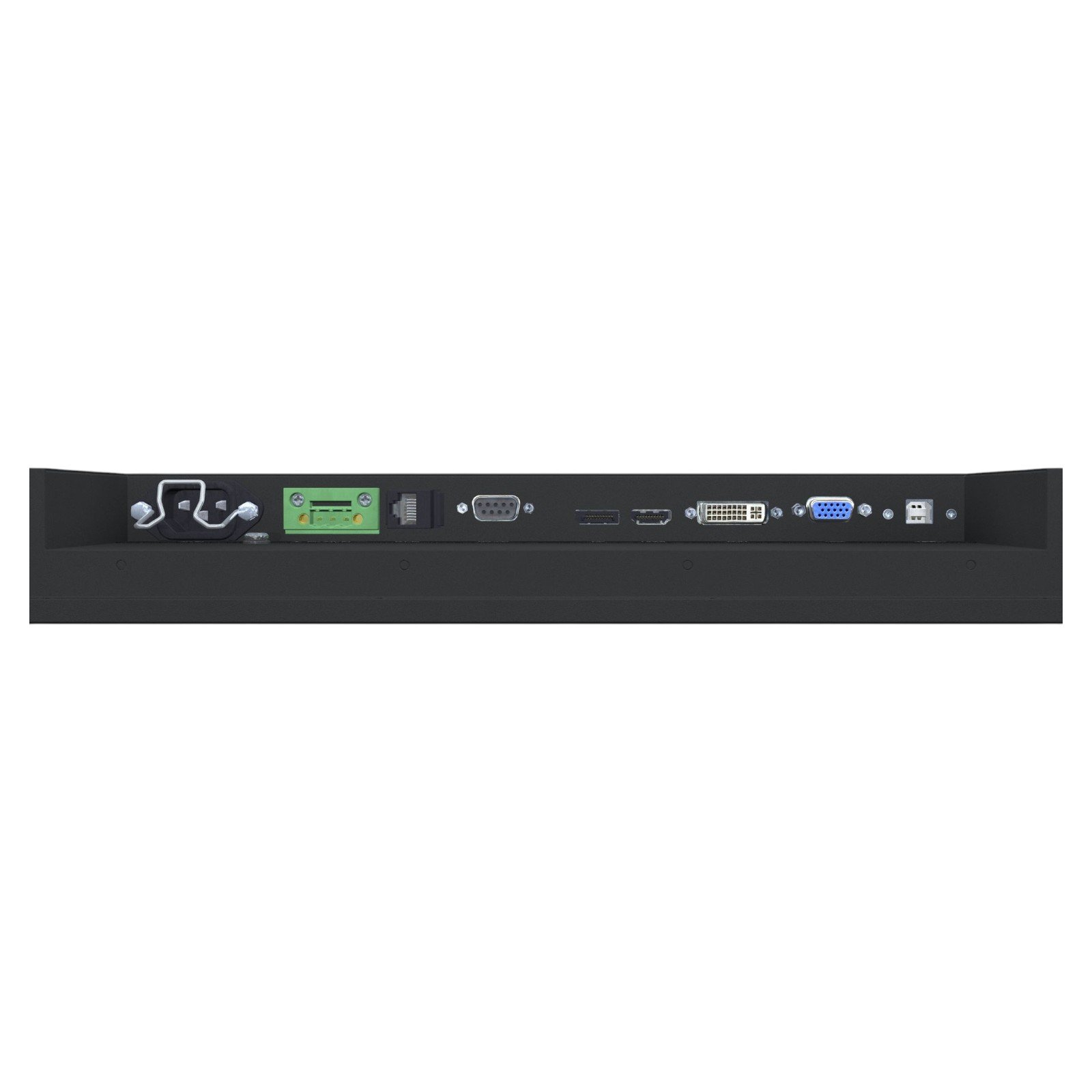

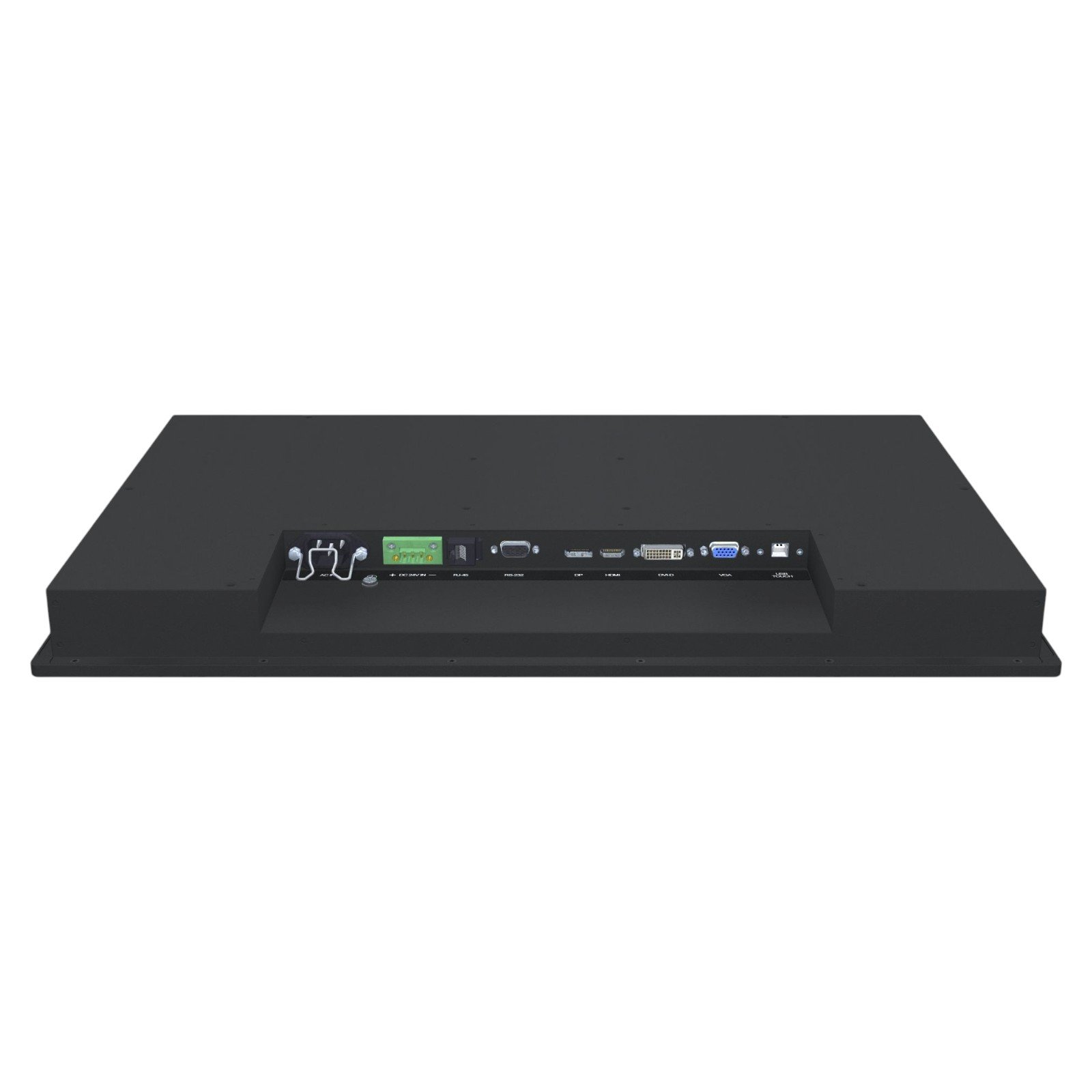

| Video Inputs | 1x DVI-D, 1x VGA (15-pin D-sub), DisplayPort / HDMI options |
| Operating Power Supply | 115V / 230V AC (50/60 Hz) auto-sensing or 24V DC nominal |

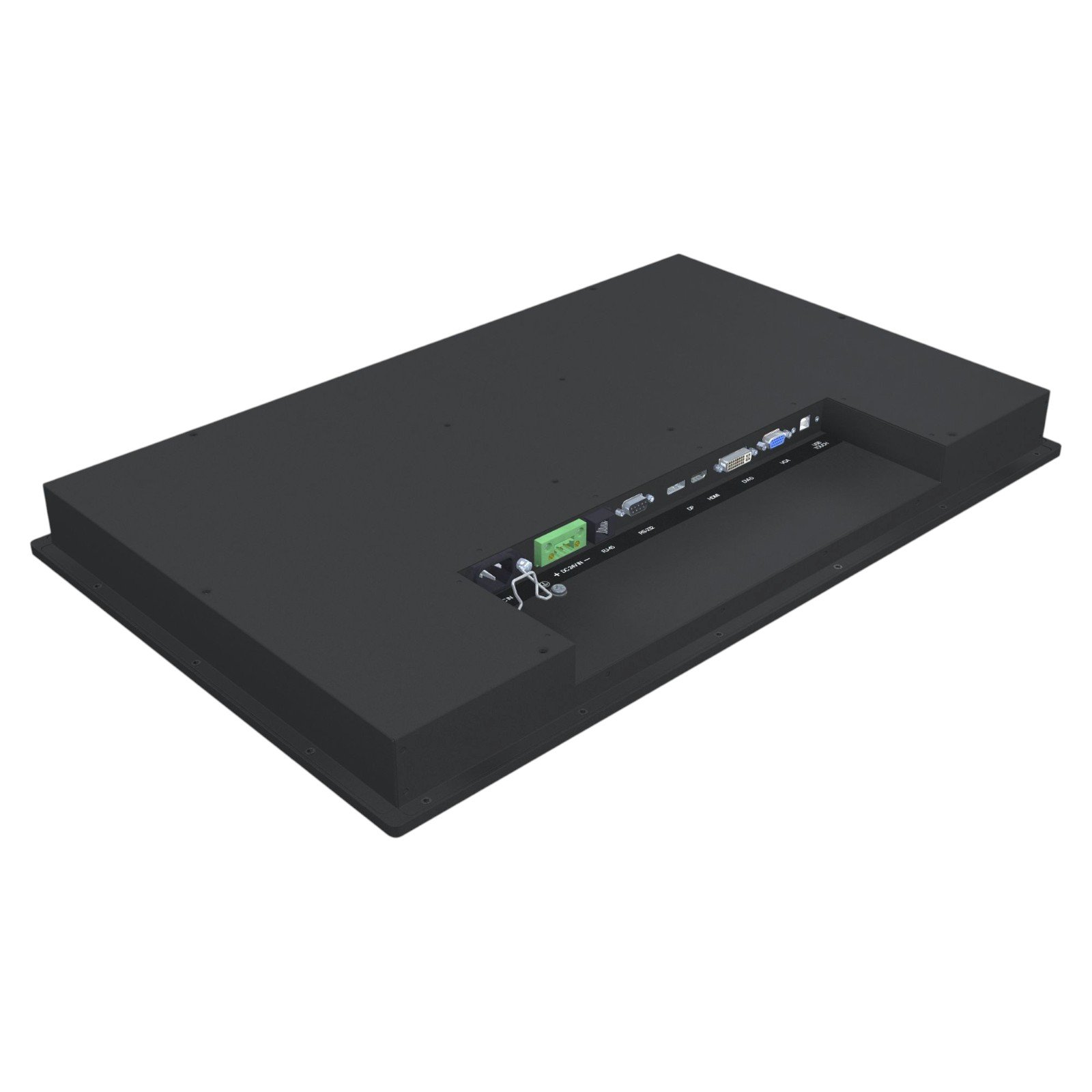

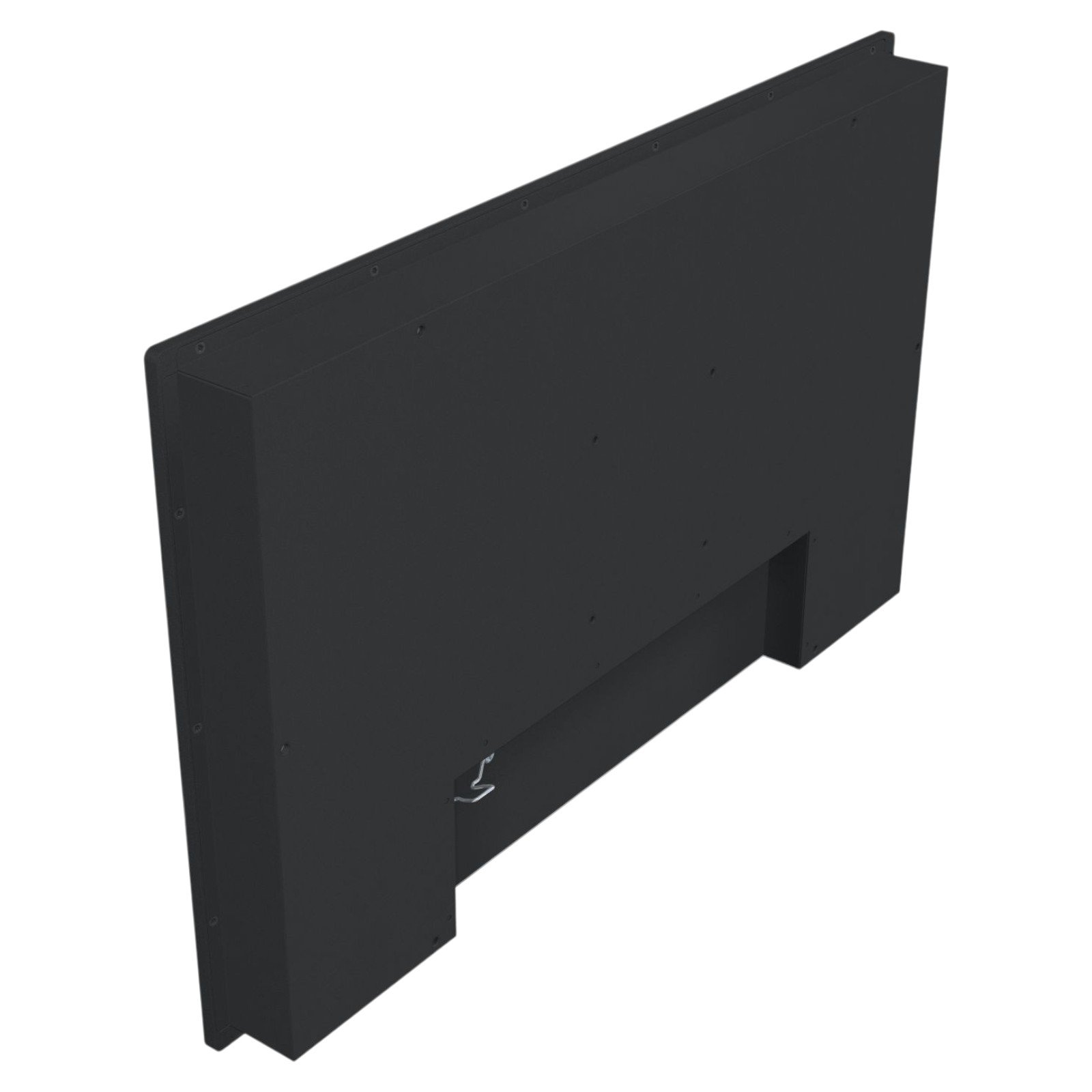

| Enclosure & Mounting | Powder-coated aluminum chassis; Flush panel mount / VESA mount / Yoke bracket |
| Operating Temperature | -15°C to +55°C (+5°F to +131°F) |
| Ingress Protection | IP66 front panel (when flush mounted); IP22 rear enclosure |
| Compliance & Standards | IEC 60945 (Marine EMC & Environmental), IACS E10, CE, DNV / ABS / LRS type approvals |
| Application | Primary multi-function bridge display for ECDIS chartplotters, marine radars, vessel automation, and CCTV monitoring |
| Country of Origin | Norway |
