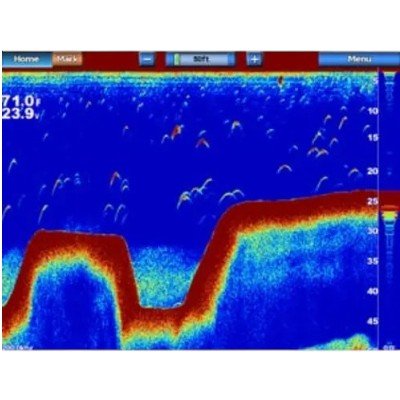

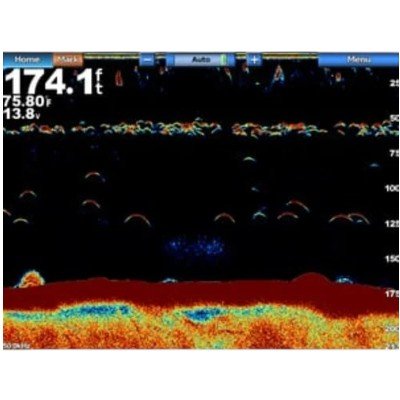

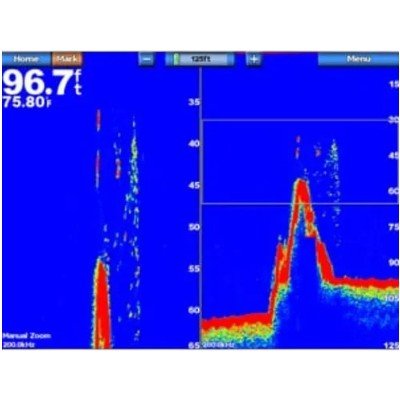

The Garmin GSD™ 24 (Part Number: 010-00957-00) is an advanced digital remote sonar module designed to bring high-definition bottom imaging and precise target separation to compatible Garmin chartplotters and multifunction displays. Delivering up to 2,000 Watts of transmit power, this black-box unit auto-adjusts frequencies (50/200 kHz) and gains to effectively eliminate surface clutter, isolate baitfish from game fish, and track depths down to 5,000 feet (1,500 meters). Built for reliable plug-and-play operation across the Garmin Marine Network via high-speed Ethernet, the compact and waterproof GSD 24 is an ideal sonar processing upgrade for serious offshore anglers and coastal navigators.
General |
|
| Case material | Fully gasketed, aluminum and steel housing |
|---|---|
| Dimension | 8″×11.2″×3.2″ (204 mm × 284 mm × 81 mm) |
| Weight | 5.27 lbs (2.39 kg) |
| Water rating | IPX7 |
| Temperature range | From 5°F to 158°F (from -15°C to 70°C) |
Electrical Features |
|
| Power input | 10-35 V |
|---|---|
| Power usage | 40 W maximum |
| Fuse | 7.5 A |
| Compass-safe distance | 15.75 in. (40 cm) |
Sonar Features |
|
| Frequency | 50/200 kHz |
|---|---|
| Transmit power | 25-2,000 W rms |
| Maximum depth | 5,000 ft. (1,524 m) |
Networking & Connections |
|
| Garmin Marine Network Ports | 1 |
|---|---|
