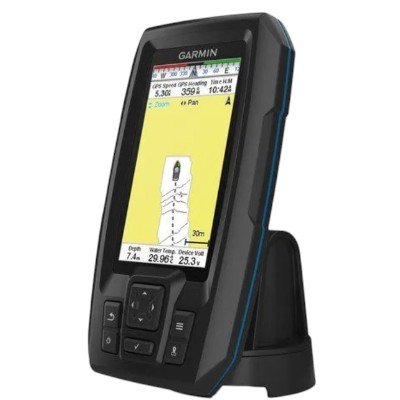

The Garmin STRIKER™ Plus 4 is an enhanced version of the original STRIKER 4, featuring a larger 4.3-inch display and the addition of Garmin’s Quickdraw Contours mapping software. This bundle includes the dual-beam transducer, providing a reliable entry-point for anglers who want to create their own fishing maps in real time.
The STRIKER Plus 4 is designed for simplicity but adds significant value with its custom mapping capability. While the standard STRIKER 4 only tracks your path and waypoints, the Plus model uses the Quickdraw Contours feature to automatically draw high-definition fishing maps with 1-foot contours as you fish. It can store up to 2 million acres of this data.
The included Dual-Beam Transducer (77/200 kHz) utilizes Garmin CHIRP traditional sonar to provide excellent target separation and clear images of fish and structure. Like the rest of the series, it includes a high-sensitivity GPS to mark waypoints and monitor boat speed.
| Category | Specification |
| Model | STRIKER™ Plus 4 |
| Part Number | 010-01870-00 |
| Display Resolution | 272 x 480 pixels |
| Display Type | QSVGA Color (Sunlight-readable) |
| Physical Dimensions | 3.9″ x 6.9″ x 1.8″ (9.8 x 17.4 x 4.5 cm) |
| Weight | 0.7 lbs (0.3 kg) |
| Water Rating | IPX7 |
| GPS Receiver | High-sensitivity internal receiver |
| Custom Mapping | Garmin Quickdraw™ Contours (Up to 2 million acres) |
| Waypoints | 5,000 |
| Feature | Detail |
| Transmit Power | 200 W (RMS) |
| Supported Frequencies | Traditional: 50/77/83/200 kHz |
| Included Transducer | Dual-beam (77/200 kHz) |
| Max Depth (Freshwater) | 1,600 ft |
| Max Depth (Saltwater) | 750 ft |
| Bottom Lock | Yes (shows return from the bottom up) |
| Water Temp Sensor | Yes (included in transducer) |
| Water Temp Log/Graph | Yes |
| Category | Details |
| Input Voltage | 12 to 20 Vdc |
| Typical Current Draw | 0.23 A (at 12 V) |
| Rated Current | 1.5 A |

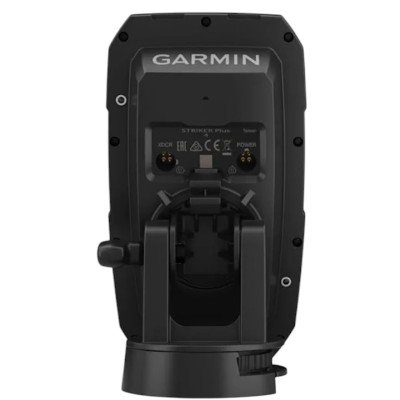

| Transducer Port | 1 x 4-pin port |
| Keyed Interface | Simple buttons for operation in wet/cold conditions |
| Standard Features | Split-screen zoom, Fish Symbol ID, AutoGain, A-scope, Ultrascroll® |
STRIKER Plus 4 fishfinder
Garmin dual-beam transducer (77/200 kHz)
Power/data cable
Tilt/swivel mount
Hardware
Documentation
