The Garmin GPSMAP® 923xsv with GMR™ 18 HD3 Radome bundle combines a high-performance 9-inch multifunction display (MFD) with a high-definition 4 kW radar. This package is engineered for boaters who require advanced situational awareness, high-speed chart rendering, and built-in sonar capabilities in a compact, edge-to-edge glass design.
Physical & Environmental

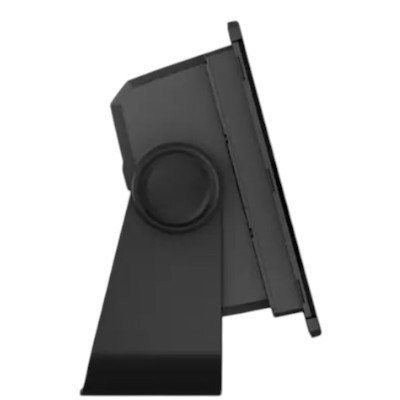

Dimensions: 23.3 x 16.2 x 7.6 cm (9.2″ x 6.4″ x 3.0″)
Display Resolution: 1280 x 720 pixels (WXGA)
Display Type: IPS Touchscreen (Edge-to-edge glass)
Water Rating: IPX7
Electrical
Power Input: 10 to 32 Vdc
Typical Current Draw (@ 12 Vdc): 1.34 A
Max Power Usage (@ 10 Vdc): 40.2 W
NMEA 2000® LEN: 2 (Draws 100 mA max)
Sonar & Navigation
Transmit Power: 1 kW Traditional; 1 kW CHIRP
Frequencies: 50/77/83/200 kHz (Traditional); 260/455/800/1000/1200 kHz (UHD Scanning)
GPS Receiver: 10 Hz high-sensitivity (GPS, GLONASS, Galileo)

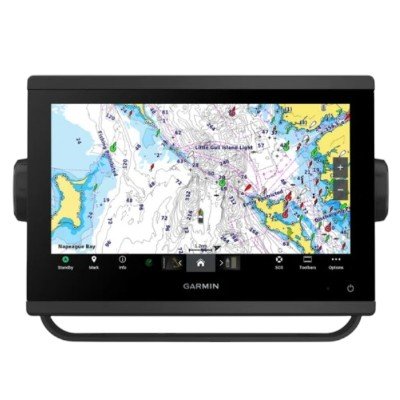

Maps: Worldwide Basemap preloaded
Memory: 2 microSD™ card slots (back of unit)
Physical & Radar Performance
Dimensions: 50.8 cm diameter x 24.8 cm high (20″ x 9.8″)
Weight: 6.3 kg (14 lbs)
Transmit Power: 4 kW
Range: 20 meters to 36 nautical miles
Rotation Speed: 24 RPM
Beam Width: 5.2° Horizontal, 25° Vertical
Water Rating: IPX7
Electrical
Power Input: 10.5 to 35 Vdc
Power Consumption: 15 W (Typical); 40 W (Max)

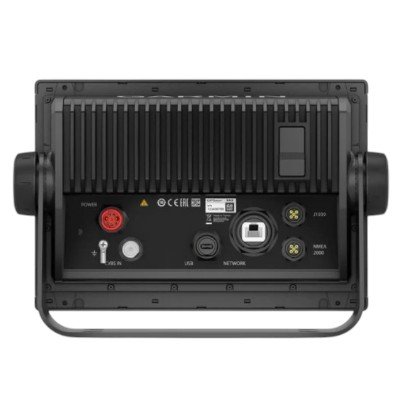

Garmin Marine Network: 1 Port (Used to connect Radar to MFD)
NMEA 2000® Port: 1 (For sensors and engine data)
NMEA 0183: 1 Input / 1 Output (Differential)

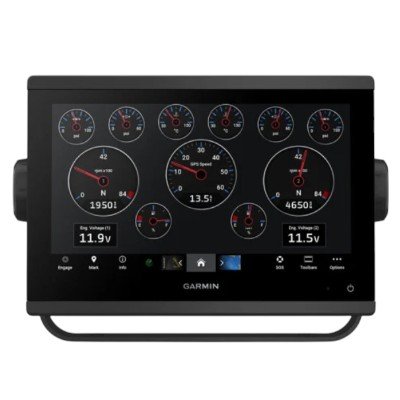

J1939 Port: 1 (Dedicated engine integration)
Video Input: 1 BNC Composite
Wireless Connectivity: Wi-Fi, Bluetooth®, and ANT+ for ActiveCaptain® and quatix® wearables
GPSMAP 923xsv chartplotter
GMR 18 HD3 radome
Power cable (MFD)
Power cable (Radar, 15 meters)
Network cable (Radar, 15 meters)
Bail mount kit with knobs
Flush mount kit with gasket
Protective sun cover
Mounting hardware and documentation
