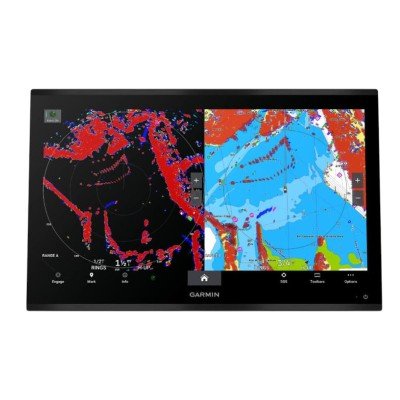

The GPSMAP® 9224 is the 24-inch flagship of Garmin’s premium 9000 series. Designed for large vessels and high-end glass bridges, it provides the largest screen real estate in the lineup with stunning 4K clarity. It is engineered for mariners who require maximum detail, lightning-fast response times, and total system integration.
24-inch 4K UHD Display: A massive 3840 x 2160 pixel touchscreen. The IPS (In-Plane Switching) display ensures that maps and sensor data are crystal clear from any viewing angle, even in direct sunlight with polarized sunglasses.
Ultra-High-Speed Processing: With seven times the processing power of previous Garmin flagship generations, this unit provides near-instant chart drawing and incredibly smooth transitions between menus and data screens.
Garmin BlueNet™ Networking: Optimized for high-speed gigabit networking, BlueNet allows for massive data throughput. This ensures that high-definition radar, sonar, and video feeds are shared across the vessel with zero lag.
Sleek Glass Bridge Design: The edge-to-edge glass display is designed for flush or flat mounting, creating a seamless, modern look for any helm.
Preloaded Garmin Navionics+™: Includes high-detail coastal and inland maps. Features include Auto Guidance+™ technology for suggested paths and high-resolution contouring.
Included GPS 24xd: The 9224 comes bundled with an external GPS 24xd antenna. This is vital for vessels where the chartplotter is mounted deep in the console, ensuring a consistent 10 Hz high-sensitivity signal using multiple satellite constellations.
Vision+ Compatibility: Supports optional Garmin Navionics Vision+™ for advanced relief shading, satellite imagery, and aerial photography of ports and harbors.
System Mastery: Features OneHelm™ support to control third-party digital switching, lighting, and stabilization systems directly from the screen.
4K Video Distribution: Equipped with multiple HDMI inputs and outputs. Because the unit is HDCP compliant, you can stream encrypted high-definition video from entertainment systems to multiple displays throughout the boat.
Connectivity: Includes a dedicated J1939 port for engine data and NMEA 2000®/0183 ports for broad sensor compatibility.
Mapping: The 9224 includes Garmin Navionics+ preloaded, whereas the 9024 provides a basic Worldwide Basemap.
GPS Antenna: The 9224 includes the GPS 24xd external receiver as part of the standard bundle.
Dimensions: 57.6 x 37.6 x 6.9 cm (22.7″ x 14.8″ x 2.7″)
Display Size: 52.7 x 29.6 cm (20.7″ x 11.7″); 23.8″ diagonal
Resolution: 3840 x 2160 pixels (4K UHD)
Display Type: IPS Touchscreen (Anti-glare)
Weight: 9.34 kg (20.6 lbs)
Mounting: Flush or Flat mount
Water Rating: IPX7
Input Voltage: 10 to 35 Vdc
Max Power Usage (10 Vdc): 82 W
Typical Current Draw (12 Vdc): 6.5 A
Max Current Draw (12 Vdc): 6.8 A
Preloaded Maps: Garmin Navionics+™ (Inland and Coastal)
External GPS: Includes GPS 24xd (NMEA 2000® external antenna/receiver)
Receiver: 10 Hz high-sensitivity multi-band (GPS/GLONASS/Galileo/BeiDou)
Waypoints/Routes: 5,000 waypoints; 100 routes
Track Log: 50,000 points; 50 saved tracks

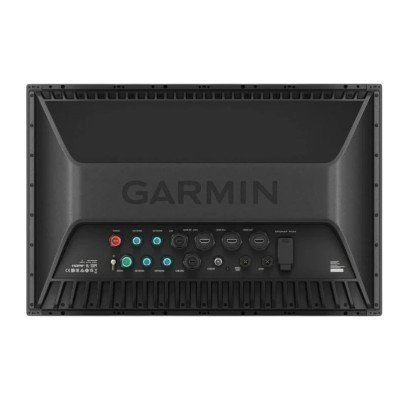

Garmin BlueNet™ Ports: 4 (Gigabit networking)
NMEA 2000® Ports: 1
NMEA 0183 Inputs: 4
NMEA 0183 Outputs: 2
Video Inputs: 2 HDMI (HDCP compliant); 1 BNC Composite
Video Outputs: 1 HDMI
USB Ports: 2 USB-C (Touch output/Power)
J1939 Port: 1 (Engine data integration)
Wireless: Wi-Fi, Bluetooth, and ANT+
Processing: 7x faster redraw and processing speeds compared to previous flagship models.

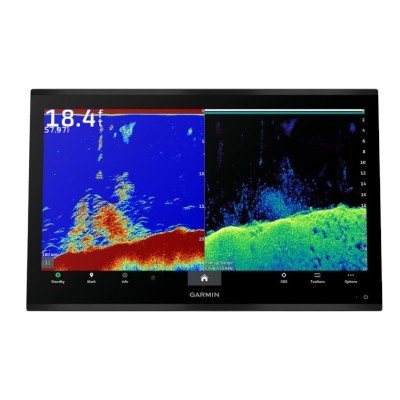

Sonar: Compatible via external GSD™ or GCV™ black box modules.
OneHelm™: Full integration for digital switching and lighting.
Multimedia: Support for encrypted 4K video sharing across the network.
