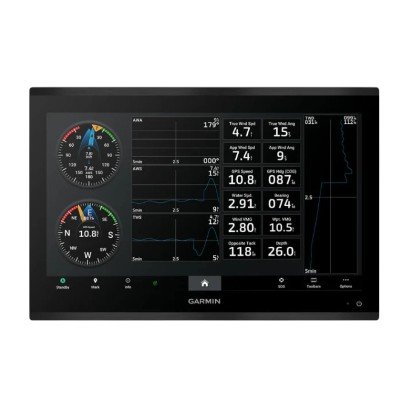

The Garmin GPSMAP® 9219 is the flagship 19-inch 4K touchscreen MFD, serving as the premier “glass helm” solution for high-end offshore vessels and professional bridge integrations. It combines massive screen real estate with industry-leading processing speed and preloaded Garmin Navionics+™ mapping.
19-inch 4K IPS Display: Features a stunning 3840 x 2160 resolution with Mini-LED local dimming. This provides deep blacks, high contrast, and excellent visibility in direct sunlight, even with polarized sunglasses.
Preloaded Mapping: Comes with Garmin Navionics+™ (Coastal and Inland), featuring integrated Navionics data, daily map updates, and Auto Guidance+™ technology.
Ultra-Fast Performance: Powered by a processor that is 7x faster than previous generations, allowing for near-instant 4K chart rendering and seamless multitasking across multiple data windows.
Garmin BlueNet™ Networking: Optimized for the next generation of gigabit-speed peripherals, ensuring that 4K video feeds, high-definition radar, and sonar data are shared across the bridge with zero latency.
Display Size: 19.1″ Diagonal (16.7″ x 9.4″).
Mounting: Designed specifically for Flat or Flush mounting to create a seamless, professional “Glass Helm” look.

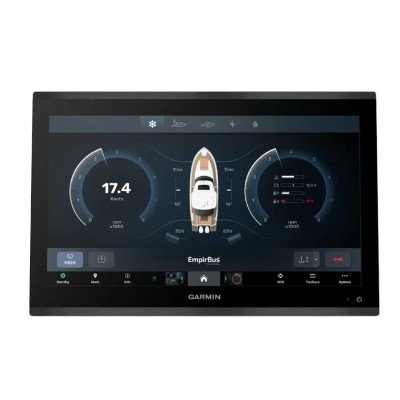

Smart Integration: Full compatibility with the Garmin ecosystem, including J1939 engine monitoring, EmpirBus™ digital switching, and high-performance GMR™ radars.
Connectivity: Features HDMI In/Out, USB-C, and high-speed Wi-Fi (2.4 & 5 GHz).
Note: The GPSMAP 9219 is a dedicated MFD/Chartplotter. For a version with a built-in 1 kW dual-channel CHIRP sonar and UHD scanning sonar, the 9219xsv is the corresponding model.
| Feature | Details |
| Display Type | 4K IPS with Mini-LED local dimming backlight |
| Resolution | 3840 x 2160 pixels |
| Display Size | 19.1″ Diagonal (16.1″ x 9.1″) |
| Dimensions | 18.0″ x 12.0″ x 2.7″ (45.7 x 30.5 x 6.9 cm) |
| Weight | 14.16 lbs (6.42 kg) |
| Water Rating | IPX7 |
| Mounting | Flush or Flat |
Performance: Features a processor 7x faster than previous generations for near-instant 4K chart rendering and high-speed Auto Guidance+™ routing.
GNSS Receiver: Includes external GPS 24xd 10 Hz high-sensitivity receiver (GPS, GLONASS, Galileo, BeiDou) with multi-band support.
Storage: 2 internal SD card slots (supports up to 1 TB microSD® each, Speed Class 10+).
Capacity: 5,000 waypoints; 100 routes; 50,000 track points.
Charts: Preloaded with Garmin Navionics+™ (U.S. Coastal/Inland); compatible with Vision+ for relief shading and satellite imagery.
Power Input: 10 to 35 Vdc.
Typical Current Draw (12V): 4.6 A.
Max Current Draw (12V): 5.0 A.
Max Power Usage (10V): 60 W.

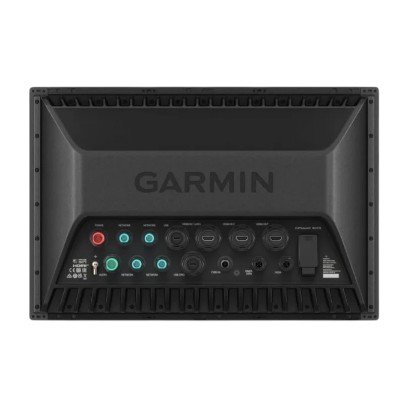

Networking: * 4 x Garmin BlueNet™ ports (Gigabit speeds for next-gen Radar/Sonar/Video).
1 x NMEA 2000® port.
1 x J1939 port (Engine integration).
NMEA 0183: 4 Input ports; 2 Output (Tx) ports.
Video I/O: * 2 x HDMI In (HDCP compliant; one up to 4K@60fps, one up to 4K@30fps).
1 x HDMI Out.
1 x BNC Composite Video In.
USB: 2 x USB-C ports (one configured for Dual-Role-Data).
Wireless: Wi-Fi (2.4 & 5 GHz), Bluetooth, and ANT+ connectivity.
