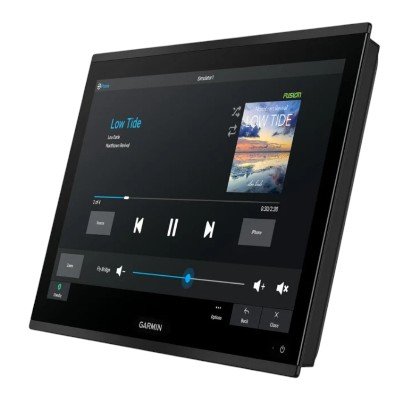

The GPSMAP® 9022 is a flagship-tier, 22-inch chartplotter designed for high-performance glass bridge setups. It is engineered for mariners who require massive screen real estate, lightning-fast processing, and seamless integration with complex onboard systems.
Large-Format Display: A 22-inch 4K resolution (3840 x 2160) touchscreen provides ultra-sharp clarity. The edge-to-edge glass display is designed for flush or flat mounting to create a sleek, modern helm.
Rapid Processing: Garmin claims this series features processing speeds significantly faster than previous generations, resulting in nearly instantaneous chart drawing and smooth sensor data transitions.
BlueNet™ Networking: It utilizes the high-speed Garmin BlueNet network, which provides gigabit speeds for connecting multiple plotters, cameras, and radars with minimal latency.

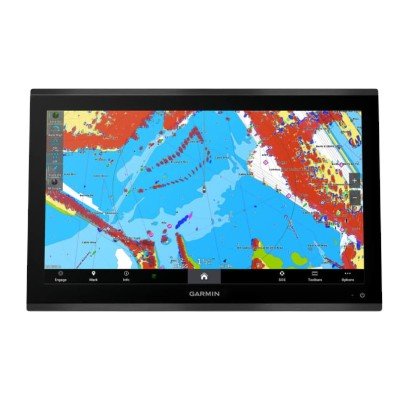

Worldwide Basemap: Comes preloaded with a basic global map. For detailed navigation, it is compatible with Garmin Navionics+™ and Garmin Navionics Vision+™, which offer high-resolution relief shading and Auto Guidance+ technology.

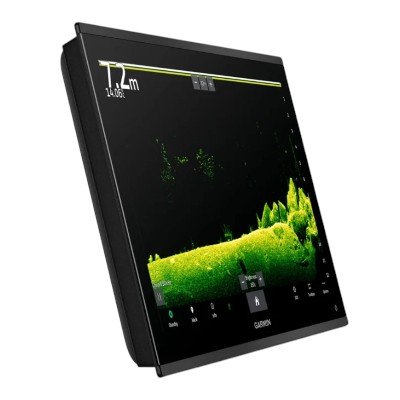

Sonar Compatibility: While it does not have a built-in sonar module, it connects seamlessly to the GSD™ and GCV™ black box sonar modules to support CHIRP, ClearVü, and SideVü scanning.

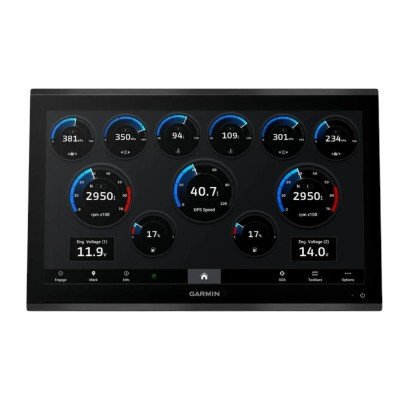

Complete System Control: Through the Garmin Marine Network and NMEA 2000®, you can manage everything from engine data and digital switching to lighting and media.
Wireless Communication: Built-in Wi-Fi and Bluetooth allow for integration with the ActiveCaptain® app for software updates, waypoint syncing, and receiving smart notifications.
Video I/O: Features HDMI input and output, allowing you to mirror the display on other monitors or input external video sources like thermal cameras or entertainment systems.
Physical Dimensions: 52.8 x 32.0 x 7.4 cm (20.8″ x 12.6″ x 2.9″)
Display Size: 47.7 x 27.0 cm; 54.6 cm diagonal (18.8″ x 10.6″; 21.5″ diagonal)
Display Resolution: 3840 x 2160 pixels (4K UHD)
Display Type: IPS Touchscreen (Anti-glare finish)
Weight: 7.37 kg (16.25 lbs)
Water Rating: IPX7
Power Input: 10 to 32 Vdc
Typical Current Draw (12 Vdc): 5.5 A
Max Current Draw (12 Vdc): 7.3 A
Max Power Usage (10 Vdc): 83 W
Fuse: 15 A, 125 V fast-acting

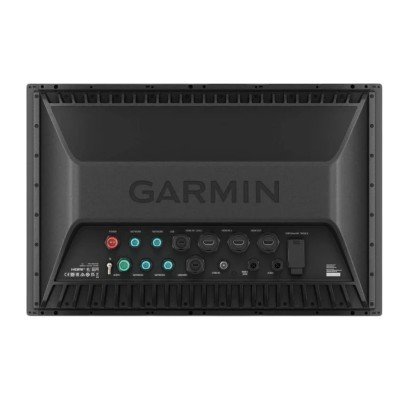

Garmin BlueNet™ Ports: 4
Legacy Garmin Marine Network Ports: 1 (via adapter)
NMEA 2000® Ports: 1
NMEA 0183 Input Ports: 1 (Differential)
NMEA 0183 Output Ports: 1 (Differential)
Video Input: 1 (BNC Composite); 1 (HDMI up to 4K)
Video Output: 1 (HDMI)
Wireless Connectivity: Wi-Fi, Bluetooth, and ANT+
USB Ports: 1 (USB-C for touch output or power)
Preloaded Maps: Worldwide Basemap
Data Card Slots: 2 microSD™ cards (located on the back of the device or via a remote card reader)
Waypoints/Routes: 5,000 waypoints; 100 routes
Track Log: 50,000 points; 50 saved tracks
Internal GPS: 10 Hz high-sensitivity internal receiver (supports GPS, GLONASS, Galileo, BeiDou)
J1939 Compatible: Yes (for engine data integration)
OneHelm™ Support: Yes (for digital switching and lighting control)
Sonar Support: Requires external black box (GSD™ or GCV™)
Radar Compatible: Yes
AIS/DSC Support: Yes
