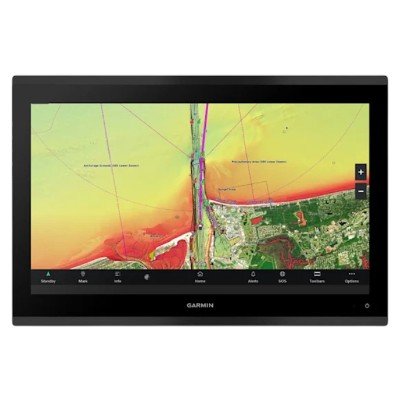

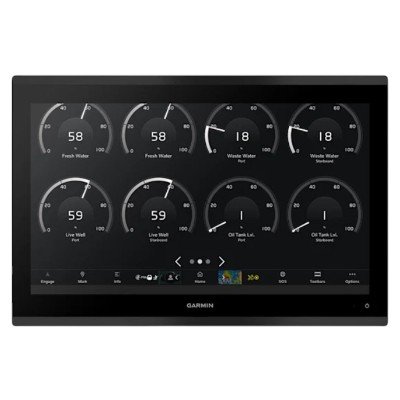

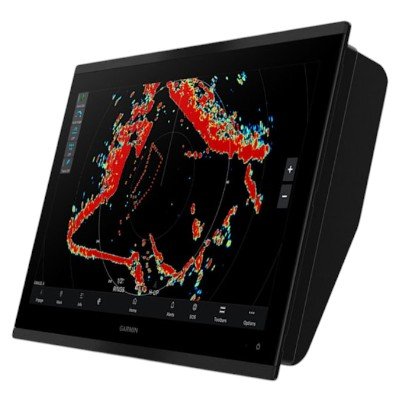

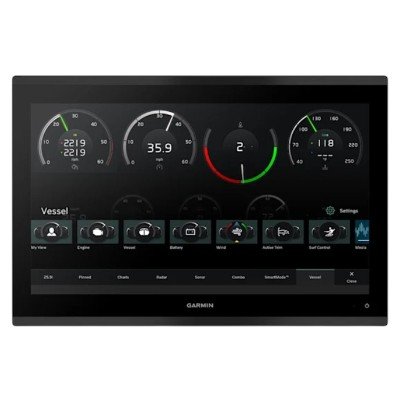

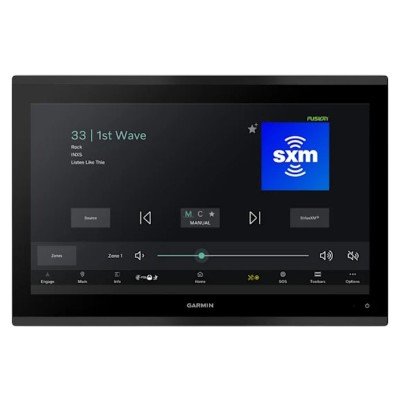

The GPSMAP® 9217xsv (Volvo Penta® Edition) is a premium 17-inch multifunction display (MFD) that serves as a cornerstone for the Volvo Penta Glass Cockpit System. It bridges the gap between mid-size displays and large glass-bridge screens, offering high-resolution navigation and professional-grade sonar fully integrated with Volvo Penta propulsion data.
| Category | Specification |

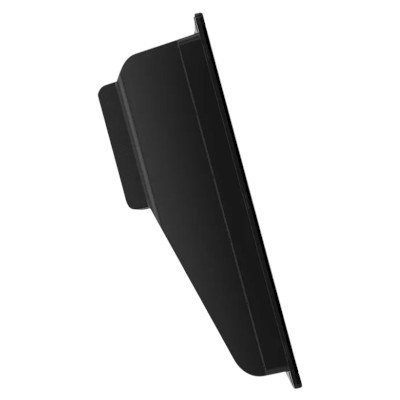

| Physical Dimensions | 41.6 x 27.2 x 9.5 cm (16.4″ x 10.7″ x 3.7″) |
| Display Resolution | 1920 x 1080 pixels (Full HD) |
| Display Type | IPS Touchscreen (Edge-to-edge glass) |
| Weight | 5.22 kg (11.5 lbs) |
| Water Rating | IPX7 |
| Power Input | 10 to 32 Vdc |
| Typical Current Draw | 4.8 A (at 12 Vdc) |
| Max Power Usage | 81 W |

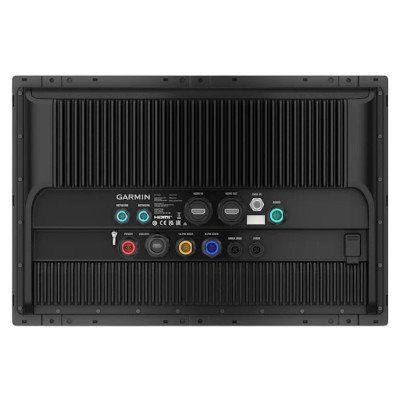

Garmin BlueNet™ Ports: 2
NMEA 2000® Ports: 1
NMEA 0183 Ports: 1 Input / 1 Output
J1939 Port: 1 (Dedicated engine network connection)
Video Inputs: 1 BNC Composite; 1 HDMI (HDCP compliant)
Video Outputs: 1 HDMI
USB Ports: 1 x USB-C
Wireless: 5 GHz Wi-Fi, Bluetooth, and ANT+
Preloaded Mapping: Garmin Navionics+™ (Coastal and Inland U.S. and Canada)

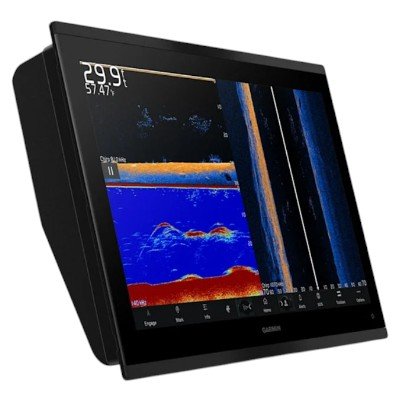

Sonar Power Output: 1 kW (traditional CHIRP)
LiveScope™ Support: Full compatibility with all LiveScope™ systems (requires transducer)
Receiver: 10 Hz high-sensitivity multi-band (GPS, GLONASS, Galileo, BeiDou)
Data Storage: 2 microSD™ card slots (rear of unit)
OneHelm™: Support for digital switching, lighting, and stabilization control.
