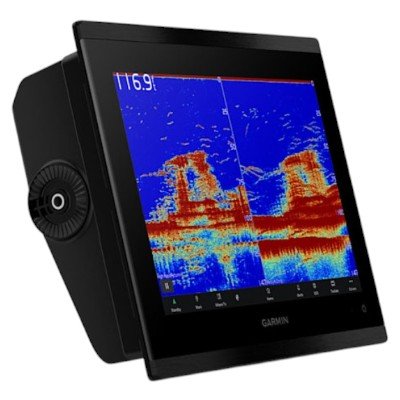

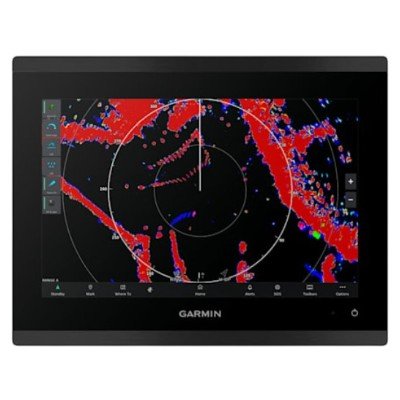

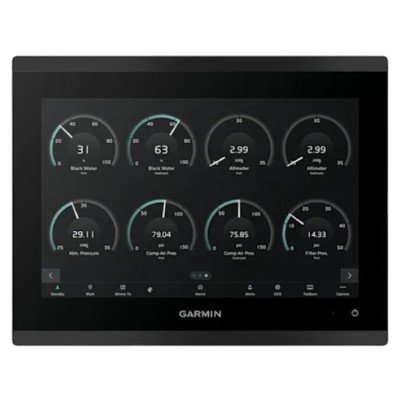

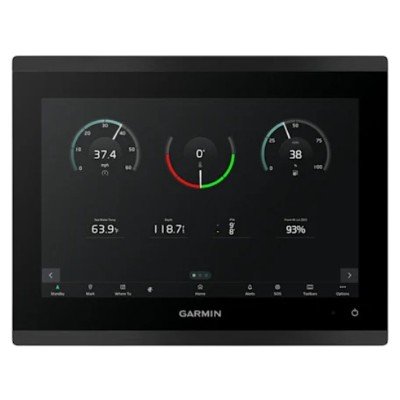

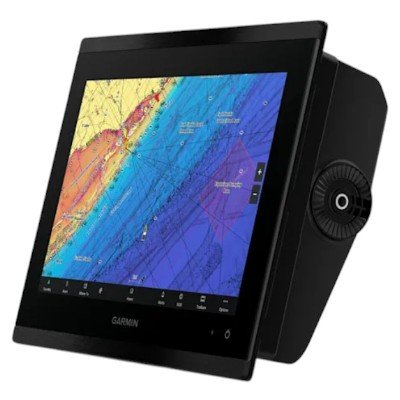

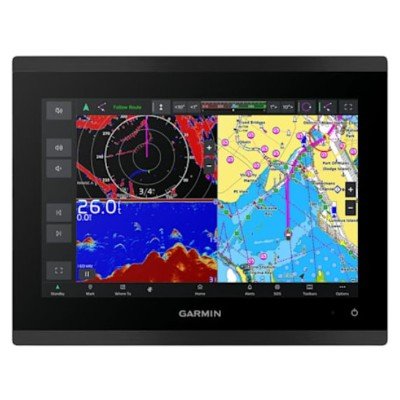

The GPSMAP® 9210xsv (Volvo Penta® Edition) is a high-performance 10-inch MFD designed as the core interface for the Volvo Penta Glass Cockpit System. It combines professional-grade Garmin navigation and built-in sonar with deep-level engine integration, providing a streamlined “glass bridge” for Volvo Penta-powered vessels.
Dimensions: 26.0 x 20.0 x 9.1 cm (10.2″ x 7.9″ x 3.5″)
Display Size: 21.7 x 13.6 cm; 25.7 cm diagonal (8.5″ x 5.4″; 10.1″ diagonal)
Resolution: 1920 x 1200 pixels (WUXGA)
Display Type: IPS Touchscreen (Anti-glare)
Weight: 2.52 kg (5.55 lbs)

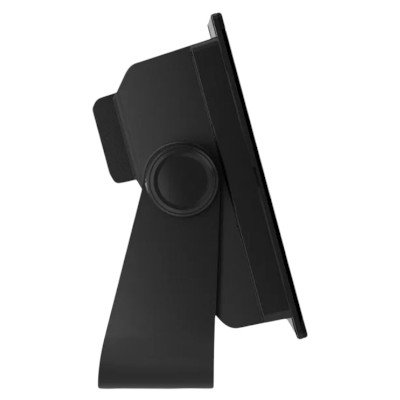

Mounting: Bail, Flush, or Flat
Water Rating: IPX7
Input Voltage: 10 to 32 Vdc
Max Power Usage: 53 W
Typical Current Draw (12 Vdc): 3.6 A
Max Current Draw (12 Vdc): 4.4 A
Compass-Safe Distance: 35 cm (13.8″)
Preloaded Maps: Garmin Navionics+™ (Coastal and Inland)
Receiver: 10 Hz high-sensitivity multi-band (GPS, GLONASS, Galileo, BeiDou)
Waypoints/Routes: 5,000 waypoints; 100 routes
Track Log: 50,000 points; 50 saved tracks
Tide Tables: Yes (built-in)
Sonar Power Output: 1 kW Traditional CHIRP; ClearVü/SideVü
Frequencies Supported:
Traditional: 50/77/83/200 kHz
CHIRP: Low, Medium, High
Scanning: 260/455/800/1000/1200 kHz
Maximum Depth: 5,000 ft at 1kW (depth capacity dependent on water bottom type and conditions)
RapidReturn™: Yes (High-frequency update technology)

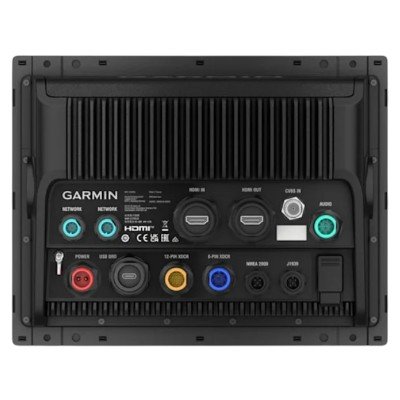

Garmin BlueNet™ Ports: 2 (High-speed gigabit networking)
NMEA 2000® Ports: 1
NMEA 0183 Inputs/Outputs: 1 Input / 1 Output
J1939 Port: 1 (Dedicated engine network connection)
Video Inputs: 1 BNC Composite
Video Outputs: 1 HDMI
USB Ports: 1 USB-C (Touch output/Power)
Wireless: 5 GHz Wi-Fi, Bluetooth, and ANT+
Processor: 7x faster than previous Garmin flagship generations.
OneHelm™: Support for digital switching and lighting.
Volvo Penta Integration: Full EVC support (Engine diagnostics, Interceptors, Autopilot).
Video Distribution: Support for sharing encrypted video across the network.
