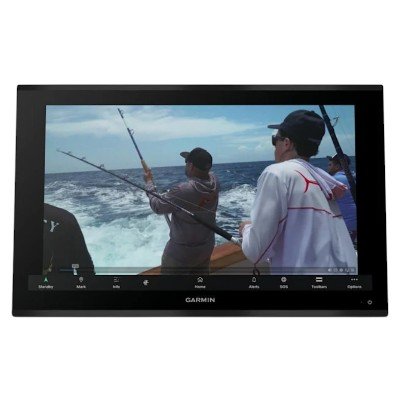

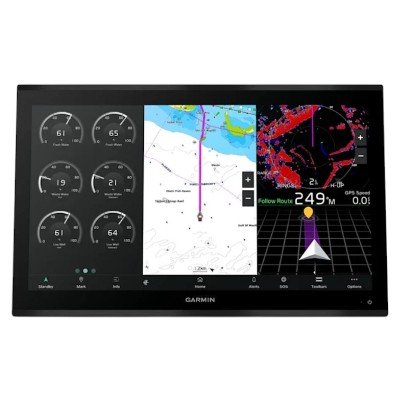

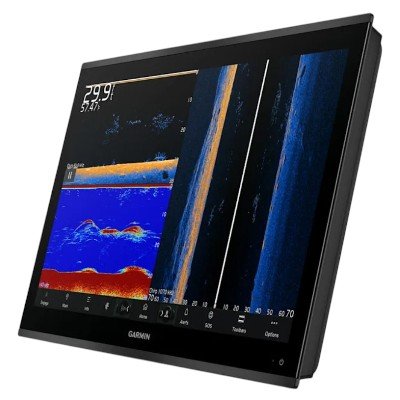

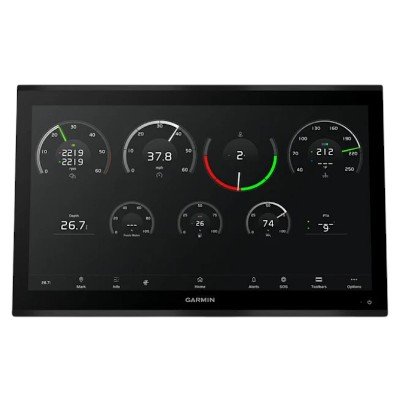

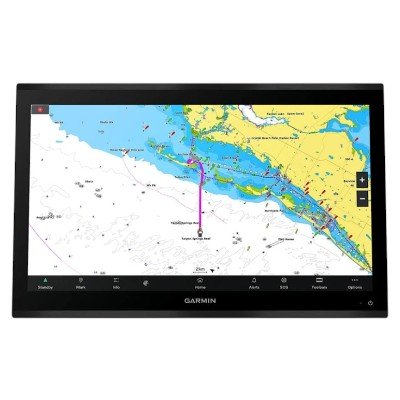

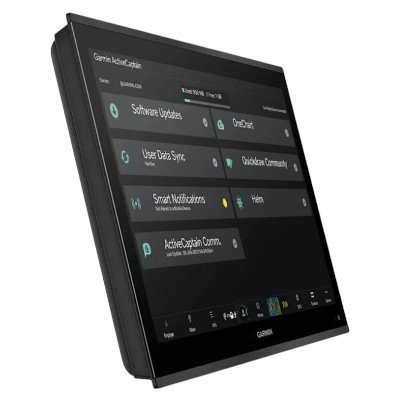

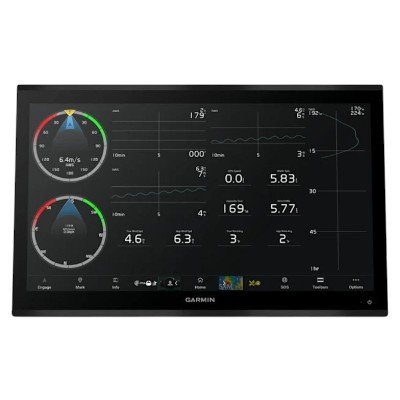

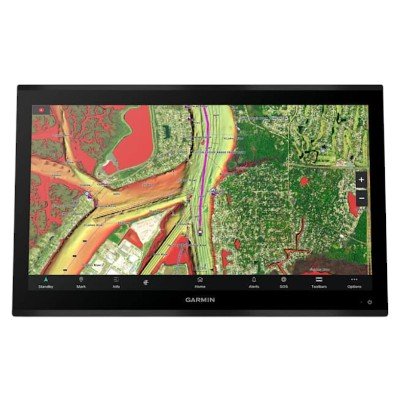

The GPSMAP® 9227 (Volvo Penta® Edition) is the 27-inch flagship of the 9000 series, serving as the ultimate centerpiece for the Volvo Penta Glass Cockpit System. As the industry’s largest integrated 4K chartplotter, it provides a massive, high-resolution interface that merges professional-grade navigation with comprehensive vessel and engine control.
| Category | Specification |
| Physical Dimensions | 65.5 x 42.3 x 8.5 cm (25.8″ x 16.7″ x 3.3″) |
| Display Resolution | 3840 x 2160 pixels (4K UHD) |
| Weight | 12.54 kg (27.65 lbs) |
| Water Rating | IPX7 |
| Power Input | 10 to 35 Vdc |
| Max Power Usage | 97 W (at 10 Vdc) |
| Typical Current Draw | 7.2 A (at 12 Vdc) |

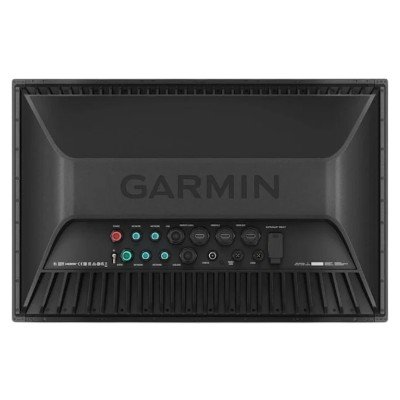

Garmin BlueNet™ Ports: 4
NMEA 2000® Ports: 1
J1939 Port: 1 (Dedicated Volvo Penta/Engine network)
NMEA 0183 Inputs/Outputs: 1 Input / 1 Output (standard cable)
Video Inputs: 2 HDMI (HDCP compliant); 1 BNC Composite
Video Outputs: 1 HDMI
USB Ports: 2 x USB-C
Wireless: 5 GHz Wi-Fi, Bluetooth, and ANT+
Internal Receiver: 10 Hz high-sensitivity multi-band (GPS, GLONASS, Galileo, BeiDou)
Data Storage: Supports 2 microSD™ cards (via external card reader)

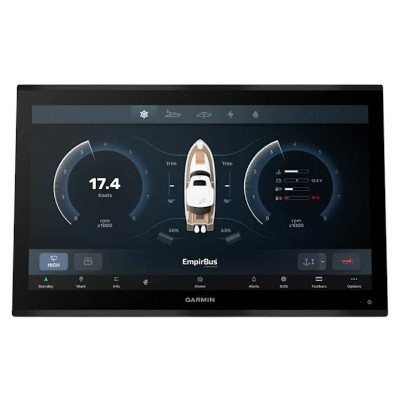

OneHelm™ Support: Centralized control for third-party systems including lighting, stabilization, and digital switching.
Multimedia Distribution: HDCP compliance allows for streaming encrypted 4K video across multiple displays in the network.
