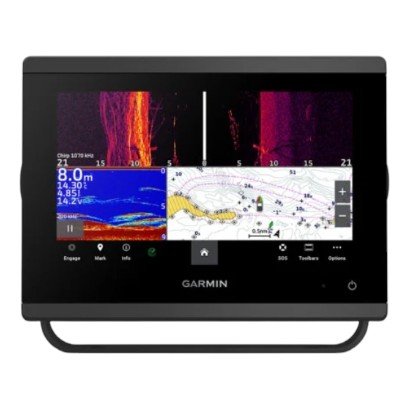

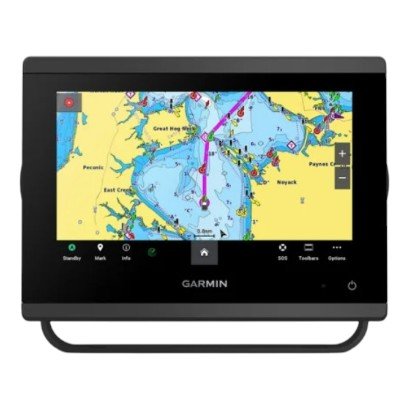

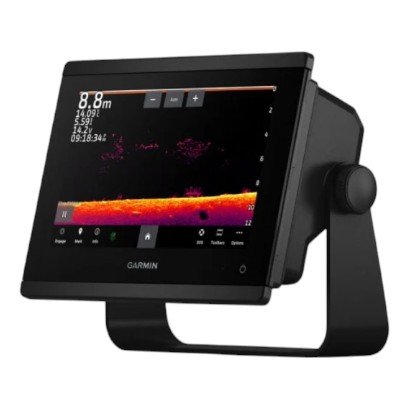

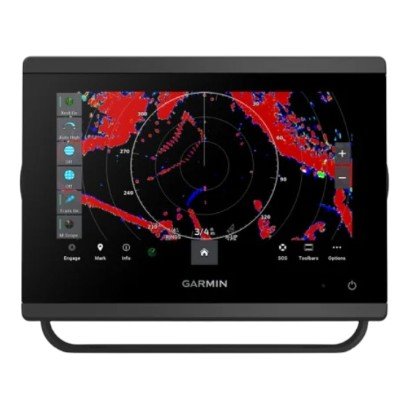

The Garmin GPSMAP® 723xsv (010-02365-02) is a compact, high-performance multifunction display (MFD) that serves as an advanced hub for your marine system. Featuring a sleek, edge-to-edge glass design and significantly more processing power than previous generations, this 7-inch unit is designed for seamless integration with radar, autopilot, and specialized sonar.
This specific model comes with a Worldwide Basemap and built-in sonar support, but does not include a transducer in the box.
Dimensions: 19.2 x 14.0 x 7.4 cm (7.6″ x 5.5″ x 2.9″)
Weight: 1.3 kg (2.8 lbs)
Water Rating: IPX7
Display Type: WSVGA with polarized sunglasses support
Display Resolution: 1024 x 600 pixels

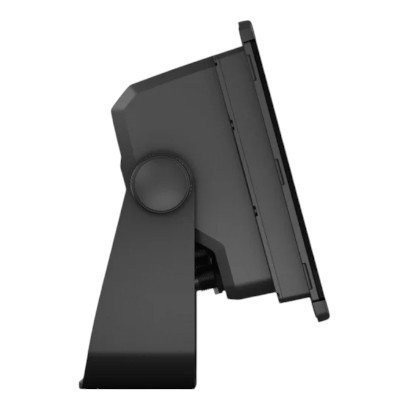

Mounting: Bail, flush, or flat
Power Input: 10 to 32 Vdc
Typical Current Draw (@ 12 Vdc): 1.18 A
Maximum Current Draw (@ 12 Vdc): 2.96 A
Max Power Usage (@ 10 Vdc): 35.9 W
NMEA 2000® LEN: 2 (Draws 100 mA max)
Transmit Power: 1 kW traditional; 1 kW CHIRP
Traditional CHIRP: Built-in (Single Channel 50/77/83/200 kHz, L, M, H CHIRP)

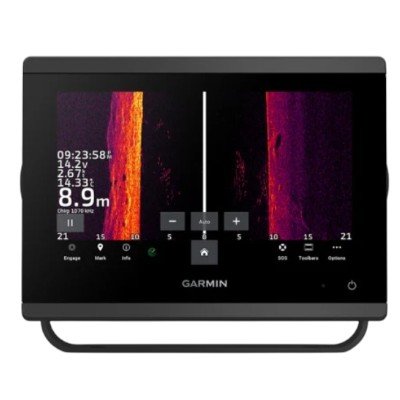

ClearVü / SideVü: Built-in Ultra High-Definition (260/455/800/1000/1200 kHz)
Live Sonar Support: Fully compatible with Panoptix™ and LiveScope™ systems
Maximum Depth: 5,000 ft at 1 kW (Actual depth depends on water salinity, bottom type, and transducer used)

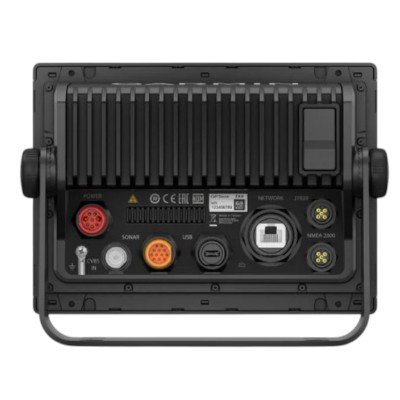

Garmin Marine Network: 1 Port (Large connector) for linking radar, sonar, and multiple displays
NMEA 2000®: 1 Port for sensors, engine gateways, and Fusion-Link™ audio
NMEA 0183: 1 Input and 1 Output port (Differential)
J1939 Port: 1 (Dedicated engine integration port)
Video Input: 1 BNC Composite port
Wireless: Built-in Wi-Fi, Bluetooth®, and ANT+ (for ActiveCaptain®, quatix® watches, and wireless remotes)
Receiver: 10 Hz high-sensitivity (GPS, GLONASS, Galileo)
Storage: 2 microSD™ card slots (back of unit)
Capacity: 5,000 Waypoints; 100 Routes; 50 saved tracks (50,000 points each)
GPSMAP 723xsv chartplotter
microSD™ card preinstalled
Power cable
NMEA 2000® T-connector & drop cable (2 meters)
8-pin transducer to 12-pin sounder adapter cable
Bail mount kit with knobs
Flush mount kit with gasket
Protective cover and trim piece snap covers
Documentation
