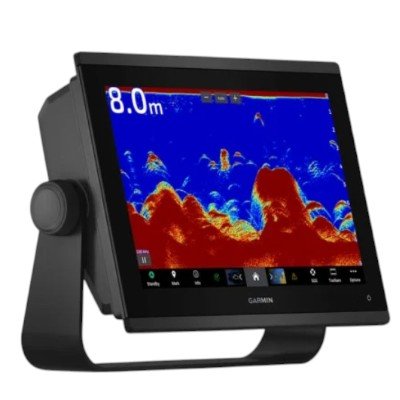

The Garmin GPSMAP® 1223xsv is a premium 12-inch, high-resolution touchscreen chartplotter designed for superior clarity and seamless helm integration. It features a slim-line design with edge-to-edge glass and an In-Plane Switching (IPS) display, which provides consistent, accurate color and enhanced visibility from all viewing angles, even with polarized sunglasses.

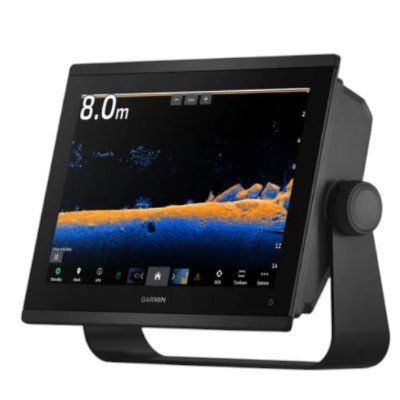

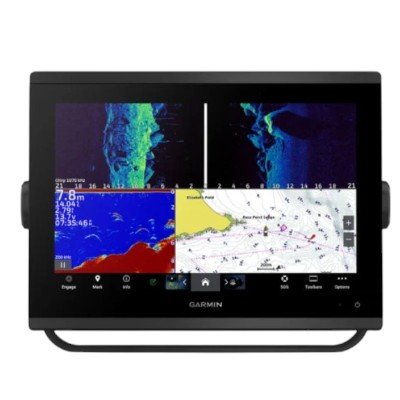

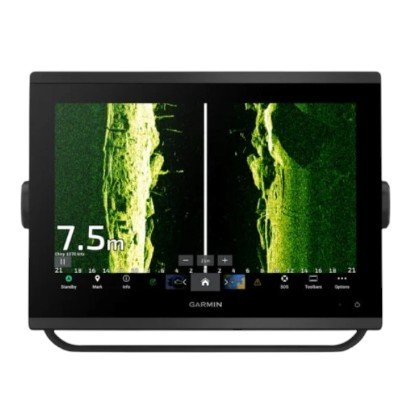

All-in-One Sonar Support: Built-in support for SideVü, ClearVü, and Traditional CHIRP sonar. It is also fully compatible with high-definition scanning sonar and the Panoptix LiveScope™ series for real-time underwater imaging.
Advanced Navigation: Comes preloaded with a Worldwide Basemap and is compatible with Garmin Navionics+™ and premium Vision+™ cartography for high-resolution relief shading and Auto Guidance+ technology.
Enhanced Processing: Significantly faster than previous generations, ensuring rapid map redraws, fluid scrolling, and near-instant response times for critical navigation tasks.

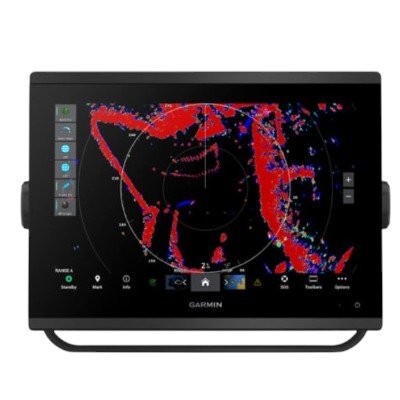

Full System Integration: Acts as a central hub for the Garmin Marine Network, allowing for the sharing of sonar, maps, radar, and IP cameras across multiple displays. It also supports NMEA 2000® and NMEA 0183 for sensor and engine data connectivity.
Smart Connectivity: Built-in Wi-Fi® allows for synchronization with the ActiveCaptain® app for software updates, chart purchases, and smart notifications, while integrated J1939 connectivity enables easy communication with various marine engines.
Dimensions (W x H x D): 12.1″ x 8.9″ x 3.2″ (30.8 x 22.8 x 8.2 cm)
Weight: 6.6 lbs (3.0 kg)
Display Type: WXGA (IPS) Touchscreen
Display Resolution: 1280 x 800 pixels
Display Size: 10.3″ x 6.4″; 12.1″ diagonal (26.2 x 16.3 cm)
Water Rating: IPX7 (withstands incidental exposure to water up to 1 meter for 30 minutes)

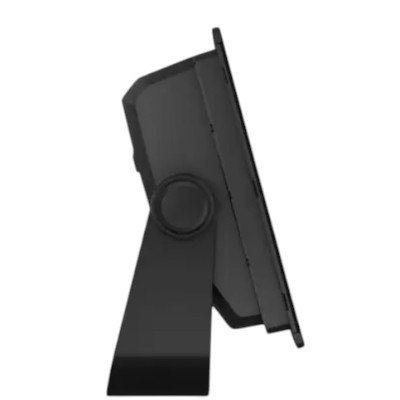

Mounting Options: Bail, Flush, or Flat (Flat mount requires professional custom installation)
Power Input: 10 to 32 Vdc
Typical Current Draw (12 Vdc): 1.68 A
Max Current Draw (12 Vdc): 3.56 A
Max Power Usage (10 Vdc): 43.0 W
Fuse: 6 A, 125 V fast-acting
Compass-Safe Distance: 25.5″ (65 cm)
Transmit Power: 1 kW (Traditional CHIRP); 500 W (ClearVü/SideVü)
Frequencies Supported:
Traditional CHIRP: 50/77/83/200 kHz (L, M, H CHIRP)
ClearVü/SideVü: 260/455/800/1000/1200 kHz
Maximum Depth: 5,000 ft at 1 kW (Actual depth depends on water conditions and transducer)
LiveScope Support: Yes (requires compatible Black Box and transducer)

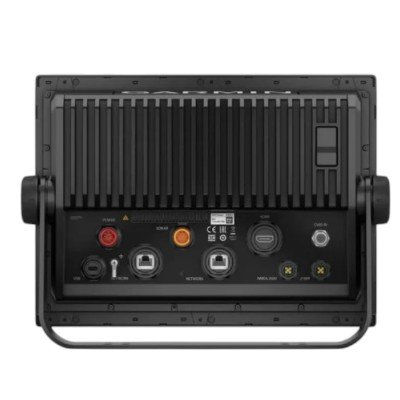

Transducer Port: 1 x 12-pin (includes 8-pin to 12-pin adapter)
Garmin Marine Network™ Ports: 2
NMEA 2000® Port: 1
NMEA 0183 Ports: 1 Input (Rx), 1 Output (Tx)
J1939 Port: 1 (for engine data integration)
Video Input: 1 BNC Composite
Video Output: 1 HDMI
Data Cards: 2 microSD™ slots (located on the back)
Wireless: Built-in Wi-Fi, Bluetooth, and ANT+
Receiver: 10 Hz high-sensitivity internal GPS/GLONASS/Galileo
Waypoints / Routes: 5,000 / 100
Track Log: 50,000 points; 50 saved tracks
Cartography Support: BlueChart® g3, BlueChart® g3 Vision, LakeVü g3, Garmin Navionics+™, and Garmin Navionics Vision+™
