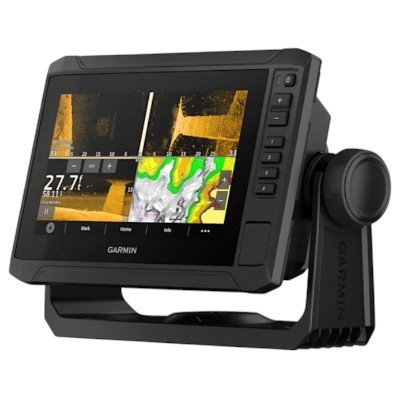

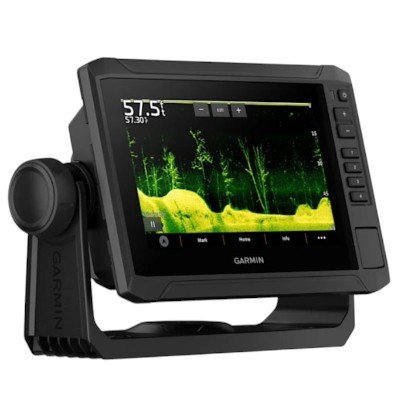

The Garmin ECHOMAP™ UHD2 74sv (Without Transducer) is a powerful 7-inch chartplotter that balances advanced sonar processing with industry-leading cartography. This unit is designed for mariners who already have a compatible 12-pin transducer or require a specific mounting style (such as through-hull) to suit their vessel.
NMEA 2000® Compatibility: Connect to a wide range of onboard electronics, including autopilots, digital switching, FUSION-Link™ audio systems, and engine sensors.
Wireless Data Sharing: Built-in Wi-Fi® allows for the wireless transfer of sonar data, waypoints, and routes between compatible ECHOMAP UHD2 units.
ActiveCaptain® App: Pair with your smartphone to manage charts, receive software updates, and access the Garmin Quickdraw™ Community for crowdsourced mapping data.
| Feature | Specification |
| Display Size | 7.0″ Diagonal |
| Display Resolution | $800 \times 480$ pixels |
| Display Type | WVGA, IPS (In-Plane Switching) |
| Dimensions | $9.1″ \times 5.6″ \times 2.6″$ ($23.2 \times 14.3 \times 6.7$ cm) |
| Water Rating | IPX7 |
| Interface | Physical Keypad |
| GPS Receiver | 10 Hz (GPS, GLONASS, Galileo, BeiDou) |
| Power Input | 9 to 18 Vdc |
| Typical Current Draw | 1.52 A (at 12 Vdc) |
| Max Power Usage | 18.3 W (at 10 Vdc) |
| Data Cards | 1 microSD™ slot (32 GB max size) |
| Feature | Specification |

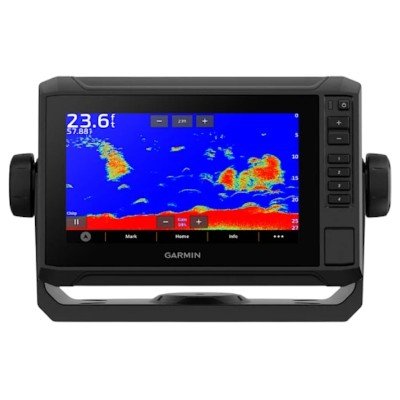

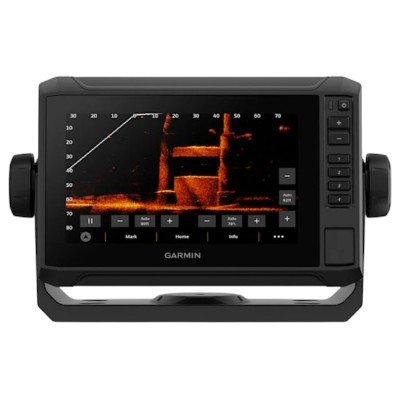

| Internal Sonar Support | Traditional CHIRP, UHD ClearVü, UHD SideVü |
| Transmit Power | 500 W (RMS) / 4,000 W (peak-to-peak) |
| Preloaded Mapping | Garmin Navionics+ (U.S. Coastal & Great Lakes) |
| Auto Guidance+™ | Built-in (via Garmin Navionics+) |
| Quickdraw Contours | Supported (1-foot HD mapping) |
| Vivid Color Palettes | Supported (High-contrast scanning colors) |

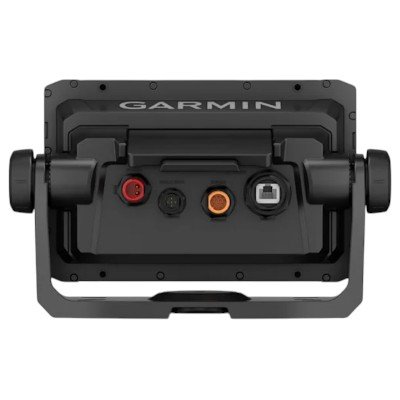

| Transducer Port | 1 x 12-pin port |
| Feature | Capability |
| NMEA 2000® | Supported (Autopilot, Engines, Audio, Sensors) |
| NMEA 0183 | 1 Input / 1 Output port |
| Wireless Networking | Built-in Wi-Fi (Share sonar, waypoints, and routes) |
| ActiveCaptain® App | Supported (Updates, Chart Management) |
| SailAssist™ | Laylines, Wind Rose, Race Start Guidance |
| OneHelm™ | Digital Switching support |

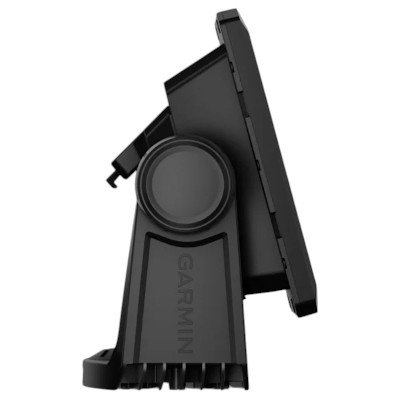

| Mounting Options | Tilt/Swivel Quick-disconnect or Flush Mount |
