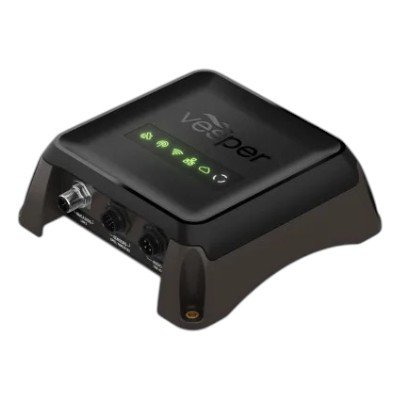

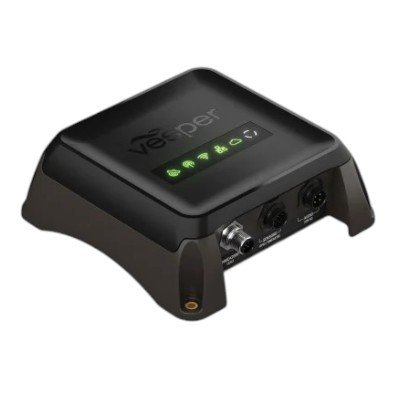

The Garmin Cortex® M1 Hub (Part Number: 010-02815-20) is a compact, high-performance blackbox smartAIS® SOTDMA transponder and remote vessel monitoring hub engineered to elevate collision avoidance and shipboard security. Delivering 5 watts of transmit power using Class B/SO SOTDMA technology, the unit continuously processes AIS target vectors, calculating Closest Point of Approach (CPA) and Time to CPA (TCPA) to trigger intelligent, situational audio and visual safety alerts before critical close-quarters situations develop. Beyond collision prevention, the M1 acts as a 24/7 vessel monitoring station with built-in sensors and external inputs for tracking battery levels, bilge pumps, shore power, and geofence locations—relaying real-time updates directly to compatible chartplotters, Cortex handsets, or remotely to your smartphone via the Cortex Monitor app. Featuring integrated NMEA 2000, NMEA 0183, Wi-Fi, and a built-in 10-Hz GPS receiver, the IPX7 waterproof unit seamlessly bridges vessel data across marine networks, and can be upgraded at any time to add full Class D DSC VHF functionality simply by pairing it with a Cortex H1 or H1P handset.

In the Box

M1 Hub
GPS antenna
Power cable
Audio cable
External sensors cable
External Wi-Fi^® cable
VHF patch cable

Technical Specification

General
Unit size	168 x 168 x 58.7 mm (6.6″ x 6.6″ x 2.3″ )
Weight	1.7 lbs (770 g)
Operating voltage	9.6 – 31.2 VDC
Water rating	IPX7
Operating temperature	-25° C to +55° C (-13° F to 131° F)
Splitter connector	BNC

VHF Features
AIS collision and MOB alarms	✓

VHF Radio
Spurious response	70 dB
Max antenna gain	6 dBi

AIS Transponder Features
AUX VHF splitter	✓
Anchor watch	✓
VHF/DSC support	✓
Remote station support	Cortex H1 (x5), Cortex H1P (x5)
Remote vessel monitoring	✓

AIS
Class	SOTDMA Class B
Long range position reports (Msg 27)	✓
Frequency range	156.025 – 162.025 MHz
AIS Sensitivity (20% PER)	-113 dBm
Adjacent channel selectivity	80 dB
Intermodulation	67 dB
Splitter insertion loss	RX 0 dB, TX -2 dB

GNSS
Integrated GNSS receiver	✓
Constellations	GPS, GLONASS, BeiDou, Galilleo
Differential support	SBAS, AIS Msg 17
Navigation rate	10 Hz

Sensors
NMEA 2000 Compatible	✓
NMEA 0183 Compatible	✓
Heading	9-axial, accuracy: +/- 10°, updated rate: 10 Hz (max)
Barometer	update rate 1Hz max (averaged)
Battery voltage	measured at power input
External sensor inputs	5

Audio
Supported functions	Voice alarms, VHF, hailer, horn
Max external speaker output power	10 W, < 1% THD, 4 Ω
Max hailer loudspeaker output power	30 W, 4 Ω

Daily Smart Features
Mobile app	✓

Tactical Features
Stealth mode	✓

Electrical Features
Compass-safe distance	80 cm (31.5″)

Sonar Features
Power output	5 W

Networking & Connections
NMEA 2000® Gateway	AIS, GPS and MOB PGN output, gateway translations to/from NMEA 0183
NMEA 0183 detail	1 isolated NMEA 0183 port, AIS and GPS sentences, gateway translations to/from NMEA 2000, 4800/38400 baud
Control outputs	2
Wireless Connectivity	Access point for up to 5 handsets (max 10 devices total), simultaneous client mode, 2.4 GHz, 802.11b/g/n, integrated antenna, SMA-RP external antenna port (optional)
Cloud connectivity	LTE-Cat1 with 3G fallback (U.S., Canada), 3G (Europe, Asia), integrated SIM, integrated antenna, SMA-RP external antenna port
Wireless security	WPA2 Personal
External GNSS antenna connector	SMA
ANT connector	SO-239 (50 Ω)
