FURUNO, FR-1815 8.4" COLOR LCD X-BAND RADAR
FURUNO, FR-1815 8.4" COLOR LCD X-BAND RADAR - Image 2
FURUNO, FR-1815 8.4" COLOR LCD X-BAND RADAR - Image 3
FURUNO, FR-1815 8.4" COLOR LCD X-BAND RADAR - Image 4

FURUNO, FR-1815 8.4″ COLOR LCD X-BAND RADAR

Add To Wishlist
Remove From Wishlist
Categories , Tag Brand:

  • Compact Radome antenna with 4 kW transmitter output power

  • Low power consumption of 38 W at the most

  • Easy installation and intuitive operation

  • Advanced auto-adjust settings for Gain/Sea clutter/Rain clutter

  • Fast Target Tracking™ (TT) function

Technical Specification

Specifications

Antenna

Peak Output Power
4 kW
Type
488 mm (19″) radome
Frequency
9410 MHz ± 30 MHz
Beam Width (Horizontal)
5.2°
Beam Width (Vertical)
25°
Range Scales
0.0625 – 36 NM
Minimum Range
25 m
Antenna Rotation Speed
24 rpm
Weight
6.5 kg 14.3 lb

Display

Display Unit
8.4-inch Color LCD

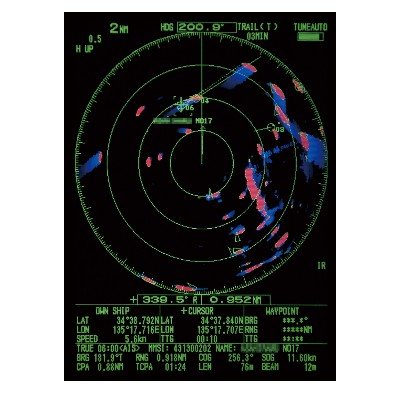

Display Modes
Head-up, Course-up*, North-up*, True view, True motion**
* Heading data required
** Heading data and position data required
Other Mode / Functions
Fast Target Tracking™ (TT), AIS, Echo Trails
Weight
Bracket mount: 2.2 kg 4.9 lb
Flush mount: 1.6 kg 3.5 lb

Environment

Temperature
Antenna unit: -25°C to +55°C
Display unit: -15°C to +55°C
Waterproofing
Antenna unit: IPX6
Display unit: IP56

Power Supply

Power Supply / Consumption Current
12-24 VDC, 3.2-1.6 A

There are no reviews yet.

Be the first to review “FURUNO, FR-1815 8.4″ COLOR LCD X-BAND RADAR”

Your email address will not be published. Required fields are marked *

Download

MODEL1815_EN
