Technical Specification

🖥️ Display System

Display size

• Compatible with:

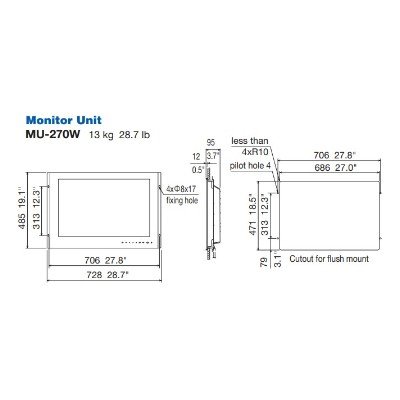

  • 27-inch widescreen marine monitor (MU-270W)
  • Other Furuno marine displays

Screen resolution

• Full HD / Wide display support
• High-speed graphic processing

Display mode

• Day / Dusk / Night color palettes
• Multi-window operation

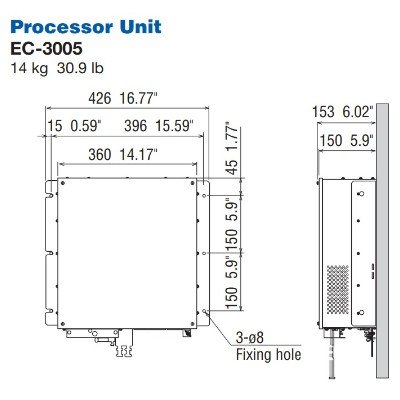

⚙️ Processor Unit

System type

• Black-box processor architecture

Operating platform

• Dedicated Furuno marine navigation software

Functions

• ECDIS
• Chart Radar
• Conning display
• Alert Management (optional)

📡 Chart Compatibility

Supports:

• IHO S-57 ENC
• S-63 encrypted ENC
• Admiralty AVCS
• Primar ENC
• ARCS raster charts
• C-MAP Professional+ charts

🧭 Navigation Functions

Route Planning

• Waypoint creation
• Automatic route checking
• Safety contour monitoring
• Safety depth alarms

Route Monitoring

• Cross Track Error (XTE)
• Anti-grounding alarms
• ETA calculations
• Navigational warnings

📡 Radar & AIS Integration

Compatible with:

• Furuno FAR-2xx7 / FAR-2xx8 radar systems
• AIS transponders
• ARPA targets

Functions include:

• Radar overlay on charts
• AIS target display
• Trial maneuver
• Target tracking

🔗 Interfaces

Communication Interfaces

• Ethernet LAN
• IEC 61162-1 / 61162-2
• IEC 61162-450
• NMEA interfaces
• USB ports

Compatible Sensors

• GPS/GNSS
• Gyrocompass
• Speed log
• Echo sounder
• Autopilot
• VDR systems

⚡ Electrical

Power supply

• 100–240 V AC
• 50/60 Hz

Power consumption

• Depends on monitor configuration
• Commercial bridge standard power system

🌡️ Environmental

Operating temperature

• Approx.:
  • 0°C to +40°C

Humidity

• Up to 93% RH

Compliance

• Marine bridge environmental standards
