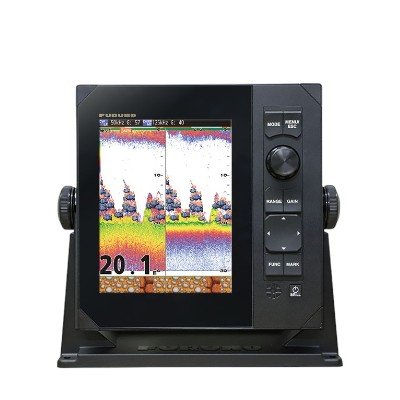

The Furuno FCV-800 is an advanced 8.4-inch Color LCD Fish Finder designed for professional fishermen, commercial fishing vessels, and recreational boats. It incorporates Furuno’s TruEcho CHIRP™ broadband sonar technology, delivering exceptional target separation, improved fish detection, and highly detailed bottom imagery. The FCV-800 supports both traditional CW (50/200 kHz) and CHIRP (40–225 kHz) transducers, enabling users to optimize sonar performance for various fishing environments.
The system features RezBoost™ digital signal processing, ACCU-FISH™ fish size estimation, and Bottom Discrimination, allowing users to distinguish fish from reefs, rocks, sand, gravel, and mud with outstanding clarity. Multiple display modes, including Bottom Lock, Marker Zoom, A-Scope, and Color Expansion, provide detailed underwater information for locating fish and identifying seabed structures.
The 8.4-inch SVGA color TFT LCD offers high-resolution images with excellent visibility in bright sunlight. Built-in wireless LAN (Wi-Fi) enables echo and navigation data to be viewed remotely on compatible smartphones and tablets. The FCV-800 also supports NMEA 0183 and NMEA 2000 networking for seamless integration with chart plotters, GPS receivers, and other onboard marine electronics.
Designed with an IP56 waterproof rating and rugged marine construction, the FCV-800 provides reliable performance in demanding marine environments, making it suitable for coastal, offshore, and commercial fishing operations.
| Parameter | Specification |
|---|---|
| Model | Furuno FCV-800 |
| Equipment Type | Color LCD Fish Finder |
| Display Size | 8.4-inch TFT Color LCD |
| Display Resolution | SVGA 800 × 600 pixels |
| Display Brightness | 800 cd/m² |
| Display Type | High-brightness Color TFT LCD |
| Sonar Technology | TruEcho CHIRP™, RezBoost™, ACCU-FISH™ |
| Operating Frequency | CW: 50 kHz / 200 kHz; CHIRP: 40–225 kHz |
| Transducer Power | 300 W / 600 W / 1 kW |
| Depth Range | 2–1200 m (7–4000 ft) |
| Pulse Length | 0.04–3.0 ms |
| Pulse Repetition Rate (PRR) | Maximum 3,000 pulses/min |
| Display Modes | Single Frequency, Dual Frequency, Zoom, Navigation Data, A-Scope, Marker Zoom, Bottom Lock, Bottom Discrimination, Color Expansion |
| Fish Detection | ACCU-FISH™ Fish Size Estimation |
| Bottom Identification | Bottom Discrimination |
| Image Processing | RezBoost™ Digital Signal Processing |
| Picture Advance Speed | 8 Levels |
| Echo Colors | 8 / 16 / 64 Colors |
| Color Palettes | 5 Selectable Palettes |
| Power Supply | 12–24 V DC |
| Power Consumption | 1.6 A (12 V DC), 0.8 A (24 V DC) |
| Wireless LAN | IEEE 802.11 b/g/n |
| NMEA 0183 | 2 Serial Ports |
| NMEA 2000 | 1 Port |
| USB Interface | USB 2.0 (Maintenance) |
| Waterproof Rating | IP56 |

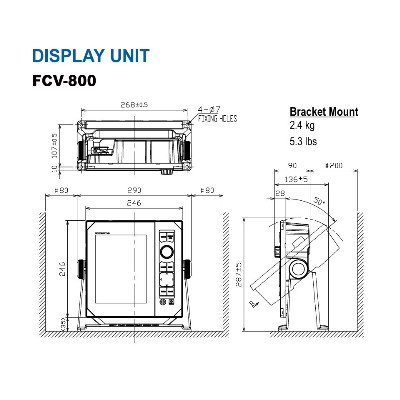

| Dimensions (W × H × D) | 290 × 281 × 136 mm |
| Weight | 2.4 kg (with bracket) |
| Compatible Transducers | CW and CHIRP, 300 W / 600 W / 1 kW |
| Operating Temperature | -15°C to +55°C |
| Applications | Recreational boats, sport fishing vessels, commercial fishing boats |
