The Furuno FCV-295 is a professional 10.4-inch Color LCD Digital Sounder designed for commercial fishing vessels, workboats, and recreational fishing boats. It combines Furuno Digital Filter (FDF) technology with a Free Synthesizer (FFS) transceiver to provide exceptionally clear fish target detection, accurate bottom tracking, and detailed seabed presentation. The adjustable operating frequency allows users to select any two frequencies between 28 kHz and 200 kHz, optimizing sonar performance for different fishing conditions and reducing interference from nearby vessels.
The 10.4-inch bonded color TFT LCD delivers excellent visibility in bright sunlight and displays echoes in 8, 16, or 64 colors, enabling operators to distinguish fish schools, seabed composition, and underwater structures with greater clarity. Advanced functions such as Bottom Lock, Bottom Zoom, Marker Zoom, White Edge, A-Scope, and Post-processing Gain Control provide detailed analysis of the seabed and fish targets. The White Edge feature highlights the bottom contour, while the Digital Filter minimizes noise for superior target separation.

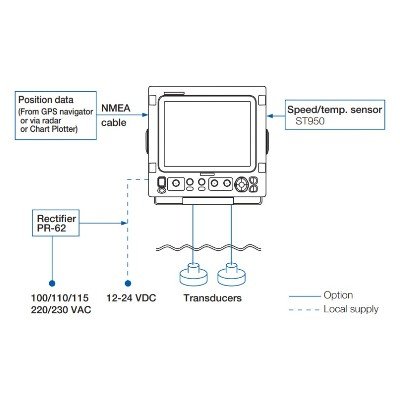

The FCV-295 supports 1 kW, 2 kW, and 3 kW transducers, offering reliable depth sounding from shallow coastal waters to deep-sea fishing operations. It includes NMEA 0183 connectivity for integration with GPS, chart plotters, and other onboard navigation equipment, making it a versatile solution for professional marine applications. Its rugged construction and IP55-rated waterproof front panel ensure dependable performance in harsh marine environments.
| Parameter | Specification |
|---|---|
| Model | Furuno FCV-295 |
| Equipment Type | Professional Color LCD Fish Finder / Sounder |
| Display Size | 10.4-inch Bonded Color TFT LCD |
| Display Resolution | 640 × 480 pixels (VGA) |
| Display Brightness | 450 cd/m² |
| Operating Frequencies | Selectable dual frequencies from 28, 38, 50, 68, 82, 88, 107, 150, and 200 kHz |
| Sonar Technology | FURUNO Free Synthesizer (FFS) & Digital Filter (FDF) |
| Transmit Output Power | 1 kW / 2 kW / 3 kW |
| Power Reduction | Auto or 10–100% (10% increments) |
| Pulse Repetition Rate | 20–3000 pulses/min |
| Pulse Length | 0.05–5.0 ms (Manual), Preset Short/Standard/Long modes |
| Receiver Bandwidth | Narrow / Standard / Wide |
| Display Modes | Single Frequency, Dual Frequency, Zoom, A-Scope, User Display |
| Zoom Functions | Bottom Lock, Bottom Zoom, Marker Zoom, Bottom Discrimination |
| Echo Colors | 8, 16, or 64 colors |
| Background Colors | 5 Selectable |
| Depth Range | 5–3000 m (depending on transducer and conditions) |
| Range Shift | 0–2000 m |
| Expansion Range | 5–200 m |
| Picture Advance Speed | 8 Levels (Stop, 1/16, 1/8, 1/4, 1/2, 1/1, 2/1, 4/1) |
| Automatic Functions | Auto Gain, Auto Range, Auto Shift |
| Noise Rejection | FURUNO Digital Filter (FDF) |
| Fish Detection | Fish Alarm (Normal/Bottom) |
| Additional Alarms | Bottom, Water Temperature*, Ship Speed/Arrival* (*Optional sensor required) |
| Interface | NMEA 0183 (Version 1.5 / 2.0 / 3.0) |
| NMEA Input Sentences | BWC, GGA, GLL, GNS, HDG, HDT, RMC, VTG and others |
| NMEA Output Sentences | DBT, DPT, DBS, MTW, RMB, TLL, VHW |
| Power Supply | 12–24 V DC (Optional 100–230 V AC Rectifier) |
| Power Consumption | 45 W maximum |
| Operating Temperature | -15°C to +55°C |
| Protection Rating | IP55 (Flush-mounted front panel) |

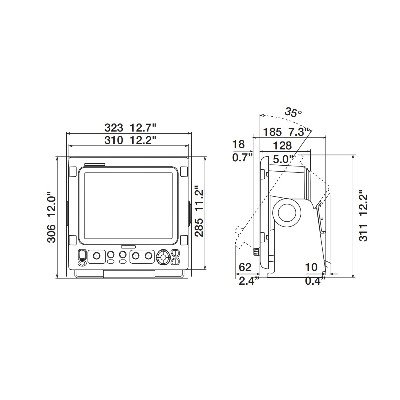

| Dimensions (W × H × D) | Approx. 294 × 290 × 155 mm |
| Weight | Approx. 4.5 kg |
| Applications | Commercial fishing vessels, trawlers, workboats, offshore fishing vessels |
