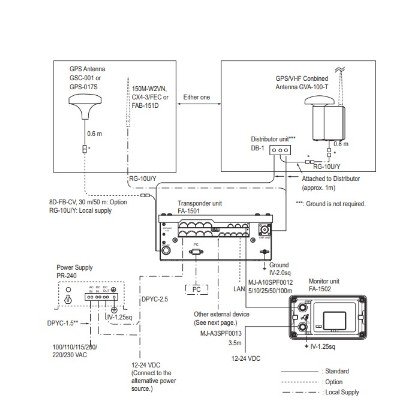

Furuno Electric FA-150 is a Universal Automatic Identification System (U-AIS) transponder designed for commercial and SOLAS vessels. It automatically exchanges vessel identification, position, course, speed and other navigation information with other AIS-equipped vessels and shore/base stations. The system consists primarily of the FA-1501 transponder unit, FA-1502 display unit and GPS antenna unit.

Technical Specification

Parameter	Specification
Make	FURUNO
Model	FA-150
Equipment Type	Universal AIS (U-AIS) Transponder
Applicable Standards	IMO A.694(17), IMO MSC.74(69) Annex 3, IEC 61993-2, ITU-R M.1371-3, ITU-R M.825-3 (DSC)
AIS Frequency Range	156.025 – 162.025 MHz
AIS Channels	AIS 1 / AIS 2
Default AIS Channels	CH87B – 161.975 MHz; CH88B – 162.025 MHz
Transmit Power	1 W / 12.5 W selectable
RF Impedance	50 Ω
Bandwidth	25 kHz / 12.5 kHz
DSC Receiver	CH70, 156.525 MHz
DSC Data Rate	1200 bps, G2B
Reporting Capacity	Up to 2,250 reports/min; up to 4,500 reports/min on two channels
Display	4.5-inch monochrome LCD
Display Resolution	120 × 64 dots
GPS Frequency	1575.42 MHz
GPS Code	C/A code
GPS Channels	12-channel parallel receiver
Satellites Tracked	Up to 12
GPS Position Accuracy	Approx. 10 m, HDOP ≤4
DGPS Accuracy	Approx. 5 m
Position Update	Typically 1 second
Navigation Interfaces	IEC 61162-1 / IEC 61162-2
Serial Interface	RS-232C
Heading Input	AD-10 Furuno gyro format
PC Interface	RS-232C; optional 10/100 Base-T Ethernet
Alarm Output	Contact closure
Transponder Supply	12–24 VDC, 7–3.5 A
Display Supply	12–24 VDC, 0.3–0.15 A
Optional AC Supply	PR-240: 100/110/200/220 VAC, 1-phase, 50/60 Hz
Antenna Protection	IPX6
Operating Temperature – GPS Antenna	-25°C to +70°C
Operating Temperature – Other Units	-15°C to +55°C
Vibration Standard	IEC 60945 Ed.4
