The Furuno BR-500 BNWAS is a Bridge Navigational Watch Alarm System designed to improve marine safety by monitoring the officer on watch (OOW) on the ship’s bridge.
The BR-500 ensures that the watch officer remains alert and active while the vessel is underway.
It detects:
If no response is detected, it triggers alarms to prevent accidents.
| Product Name | BRIDGE NAVIGATIONAL WATCH ALARM SYSTEM | ||
|---|---|---|---|
| MAIN ALARM PANEL (BR-510) |
Screen Size | 4.3″ color LCD | |
| Pixel Number | 480 x 272 | ||

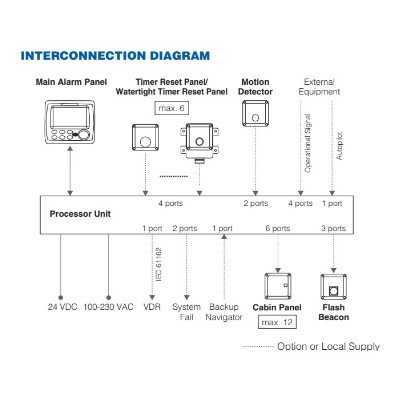

| PROCESSOR UNIT (BR-520) |
Input Port | Operational Fitness | 4 ch (normal open) |
| Autopilot Mode | 1 ch (normal open) | ||
| Backup Navigator | 1 ch (normal close) | ||
| Output Port | System Failure | 2 ch (normal close: legacy mode or normal open: Alert I/F 1 and 2) | |
| Serial Signal | 1 ch (IEC61162-1) | ||
| Cabin Panel Control | 12 sets max. (3 sets: parallel connection) | ||
| Timer Reset Panel Control | 6 sets max. (2 sets: parallel connection) | ||
| Motion Detector | 2 ch | ||
| Flash Beacon | 3 ch | ||
| CABIN PANEL (BR-540、Option) |
Input Voltage | 12 VDC: 100 mA or less (supplied from processor unit) | |
| Visible Indication | Alarm LED, Duty LED | ||
| Audible Alarm | Buzzer | ||

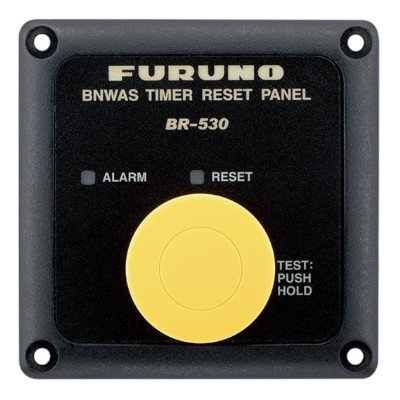

| TIMER RESET PANEL / WATERTIGHT TIMER RESET PANEL (BR-530/BR-550、Option) |
Visible Indication | Alarm LED, Reset LED | |
| Audible Alarm | Buzzer | ||
| Timer Reset | Press Button | ||

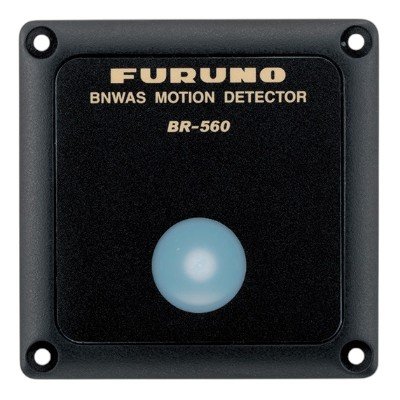

| MOTION DETECTOR (BR-560、Option) |
Detecting Method | Infrared Body Motion Sensor | |
| Distance | 5 m max. | ||
| Moving speed | 0.8 m/s to 1.2 m/s | ||
| Temperature gap | 7 °C (forward) | ||
| FLASH BEACON (BR-570、Option) |
Previous Visible alarm | Watch Alarm lamp (Yellow) | |
| POWER SUPPLY (PROCESSOR UNIT) |
100-230 VAC: 0.6-0.4 A, 1 phase, 50/60 Hz | ||
| 24 VDC: 1.0 A (Back-Up Source) | |||
| ENVIRONMENT | Tempreture | Watertight Timer Reset Panel | -25°C to +55°C |
| Other Units | -15°C to +55°C | ||
| Relative Humidity | 93% at 40°C | ||
| Dustproof/waterproof | Watertight Timer Reset Panel | IP56 | |
| Processor Unit | IP22 (bulkhead), IP20 (tabletop) | ||
| Other Units | IP22 | ||
| Vibration | IEC 60945 Ed. 4 | ||
