The ELAC LAZ 5200 is a high-performance digital navigation echo sounder designed for SOLAS vessels and commercial ships, capable of accurate depth measurement from shallow coastal waters to deep ocean environments.
It is part of the modern ELAC (Wärtsilä) sonar systems, built for full integration with advanced ship bridge systems.
The system works by:

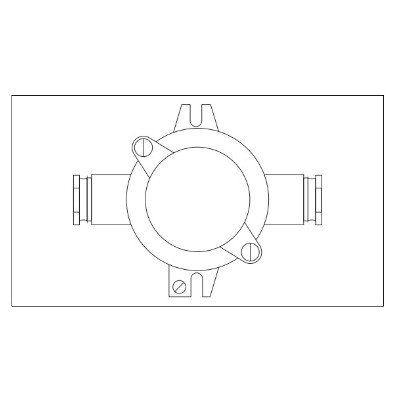

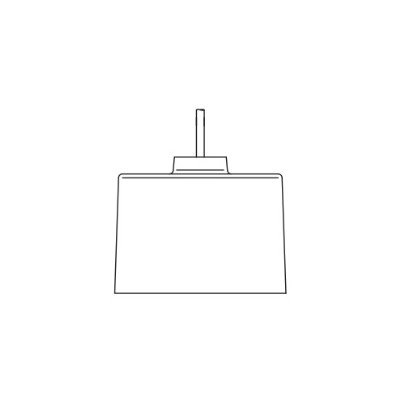

| Parameter | Specification |
|---|---|
| System Type | Digital navigation echo sounder (IMO Wheelmarked) |
| Display Type | 10.4-inch color TFT LCD |
| Resolution | 1024 × 768 pixels |
| Echo Presentation | Color echogram + digital depth |
| Frequency Range | 15 / 30 / 50 / 100 / 200 kHz (configurable) |
| Operation Mode | Single channel or dual channel |
| Depth Range | 1 m to 6000 m (depending on transducer) |
| Minimum Depth | Approx. 1 m below transducer |
| Depth Accuracy | ±0.5% of measured value |
| Output Power | Up to ~2 kW (depends on configuration) |
| Beam Width | Frequency-dependent (narrow at high freq, wide at low freq) |
| Pulse Length | Automatically adjustable |
| Pulse Repetition Rate (PRR) | Auto-adjusted based on range |
| Gain Control | Automatic / Manual |
| TVG (Time Variable Gain) | Automatic |
| Range Selection | Automatic / Manual |
| Display Modes | Real-time, history, navigation, echogram display |
| Data Storage Capacity | 170+ hours of continuous recording |
| Data Stored | Depth, echo profile, position, time, date |
| Playback Function | Yes (full history replay) |
| Alarm Functions | Shallow depth, bottom lost, system alarm |
| Bridge Alert System | BAM compliant (IEC 62923) |
| Interfaces | IEC 61162 (NMEA 0183/2000), LAN |
| Network Integration | IBS / INS / ECDIS / VDR compatible |
| Inputs | GPS position, speed, heading, time |
| Outputs | Depth data (DBS, DBT, DPT), alarm signals |
| Power Supply | 110 / 230 VAC ±10%, 50/60 Hz |
| Power Consumption | Approx. 100–150 W |
| Operating Temperature | −15°C to +55°C |
| Storage Temperature | −25°C to +70°C |
| Humidity | Up to 95% (non-condensing) |
| Waterproof Rating | Bridge unit: IP22 (typical marine standard) |
| System Architecture | Modular (display + processing unit + transducer) |
| Optional Equipment | Printer, remote display, additional transducers |
| Compliance | IMO MSC.74(69), IEC 60945, MED Wheelmark |
