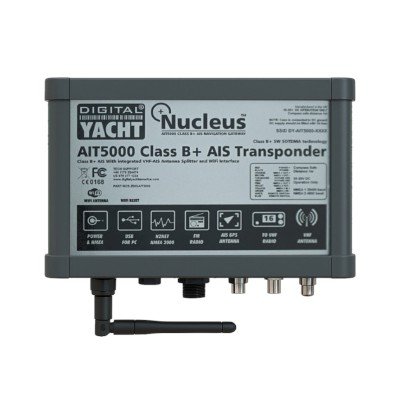

The Digital Yacht AIT5000 is a high-performance Class B+ AIS transponder designed for yachts, leisure vessels, fast motorboats, workboats, and non-mandated commercial vessels. It uses SOTDMA (Self-Organized Time Division Multiple Access) technology and provides 5 W AIS transmission power, offering higher performance and faster reporting than conventional 2 W Class B AIS units.
A key feature of the AIT5000 is its integrated ZeroLoss VHF antenna splitter, allowing a single main VHF antenna to be shared between the AIS transponder and VHF radio. The unit also provides Wi-Fi, NMEA 0183, NMEA 2000, and USB connectivity, making it suitable for integration with chartplotters, PCs, tablets, smartphones, and marine navigation applications.
The AIT5000 includes an integrated NMEA 0183 multiplexer and a web-based configuration interface. Its Wi-Fi network can connect up to seven devices simultaneously and supports TCP and UDP protocols.
| Specification | Details |
|---|---|
| Manufacturer | Digital Yacht |
| Model | AIT5000 |
| Equipment Type | Class B+ AIS Transponder |
| AIS Transmission Technology | SOTDMA |
| AIS Transmitter Power | 5 W |
| AIS Class | Class B+ / Class B SOTDMA |
| Positioning System | GPS / GLONASS |
| GPS Antenna | External GPS antenna supplied |
| GPS Antenna Cable | 10 m |
| VHF Antenna Splitter | Integrated certified ZeroLoss VHF splitter |
| Antenna Sharing | AIS and VHF radio using one main VHF antenna |
| NMEA 0183 | Multiple inputs and outputs |
| NMEA Multiplexer | Built-in |
| NMEA 2000 | Supported |
| USB Interface | Supported for PC and Mac |
| Wi-Fi | Built-in secure Wi-Fi interface |
| Wi-Fi Security | Password protected |
| Maximum Wi-Fi Connections | Up to 7 devices simultaneously |
| Network Protocols | TCP/IP and UDP |
| Wi-Fi Data Output | AIS, GPS and connected NMEA 0183 instrument data |
| Web Configuration | Built-in web interface |
| Configuration Devices | PC, Mac, tablet and smartphone |
| Internet Required for Setup | No |
| AIS Transmission Silence | Supported via remote switch and web interface |
| SPAIS Capability | Supported for enhanced satellite AIS reception messaging |
| NMEA 2000 Data Output | AIS and GPS data |
| USB Connection | Configuration and data connection |
| Wi-Fi Antenna | External 3 dBi antenna supplied |
| Enclosure | Rugged, waterproof and compact |
| Dimensions (L × W × H) | 220 × 130 × 55 mm |
| Weight | Approximately 2.5 kg |
| Part Number | ZDIGAIT5000 |
