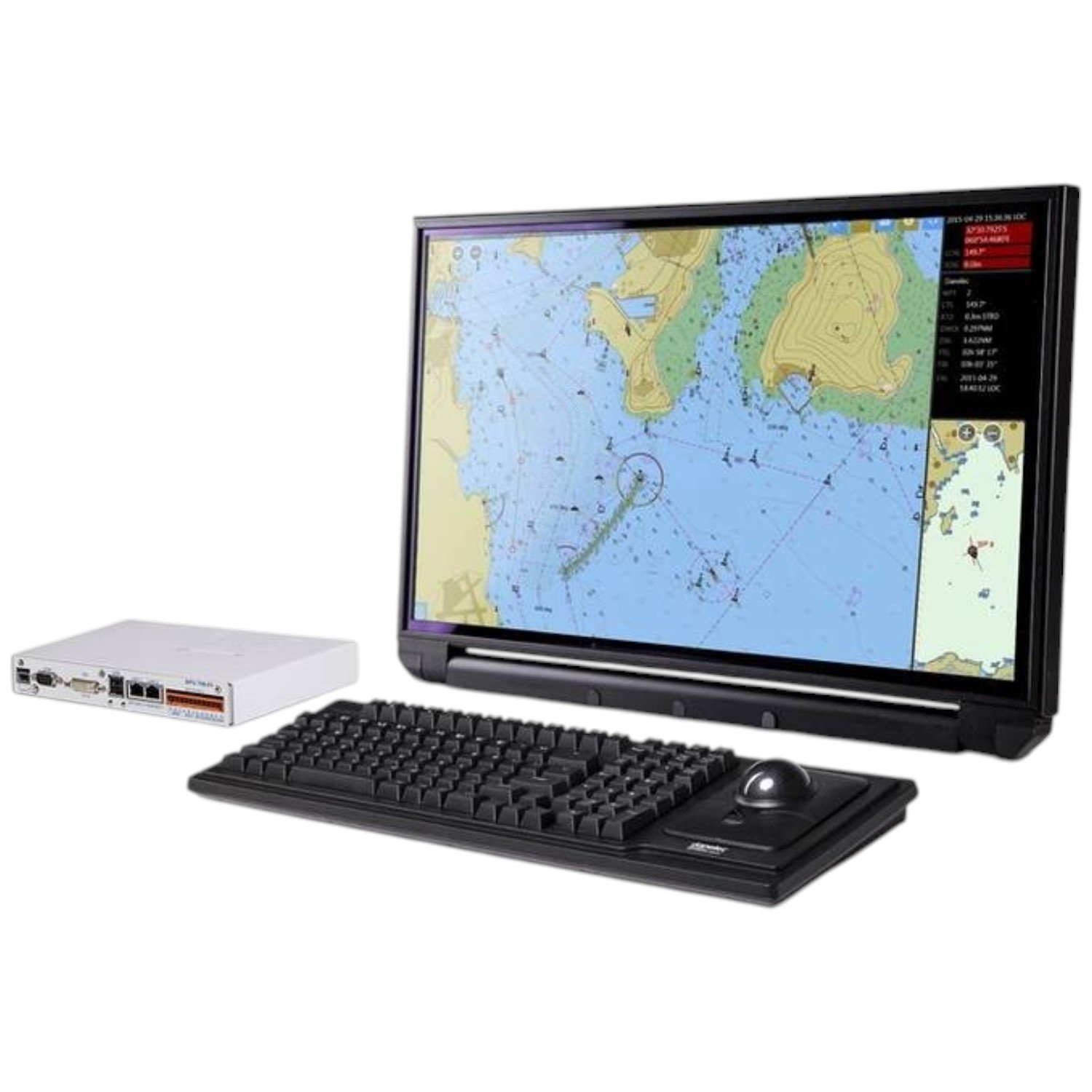

The Danelec Marine DM700 ECDIS System is a complete, type-approved bridge navigation package engineered for commercial SOLAS and non-SOLAS vessels. Built around Danelec’s Linux-driven Data Processing Unit (DPU 700-01) and integrated marine-grade display options, the system emphasizes low total cost of ownership, high hardware reliability, and fast serviceability.

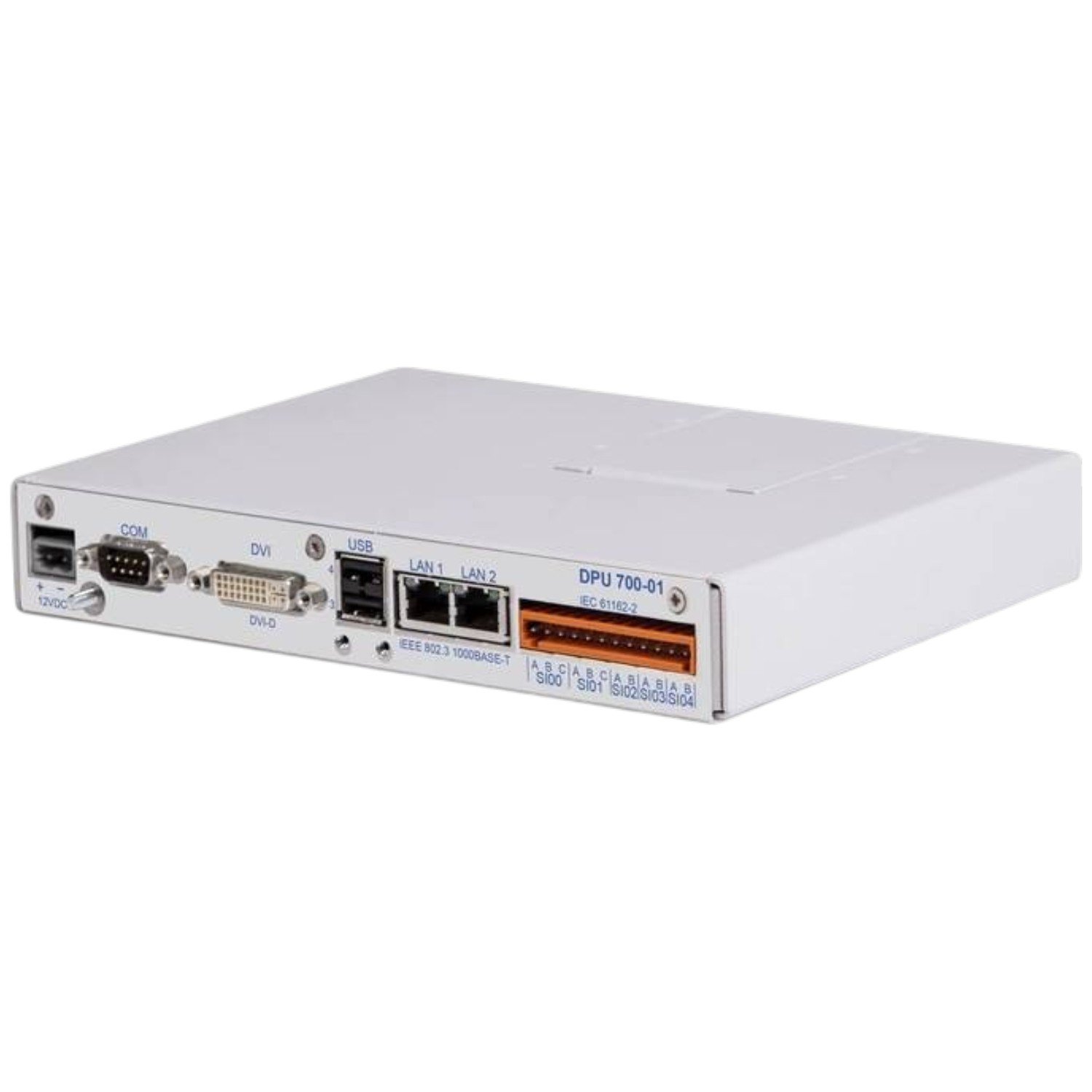

Integrated DPU Core: Driven by the ultra-compact, fan-less DPU 700-01 processor, eliminating traditional PC failure points like spinning hard drives and cooling fans.
SWAP (SoftWare Advanced Protection) Technology: Stores all system parameters, chart permits, and custom configuration settings on a hot-swappable external smart card module. Allows hardware replacement in under 15 minutes without technical re-configuration.
Paperless Navigation Ready: Connects seamlessly in dual- or triple-station configurations via LAN to fulfill paperless ECDIS carriage requirements under IMO rules.
Danelec Connect / VDR Ready: Integrates natively with Danelec Voyage Data Recorders (DM100 series) and ship-to-shore IoT infrastructure for continuous system health checks and remote diagnostic logging.
| Category | Component / Feature | System Specification |
| System Identifier | Model Name | Danelec Marine DM700 ECDIS System |
| Display Options | Screen Sizes & Formats | 19.0-inch SXGA (5:4 Aspect Ratio) or 24.0-inch Full HD (16:9 Aspect Ratio) |
| Native Resolution |
• 19-inch: 1280 x 1024 pixels • 24-inch: 1920 x 1080 pixels |
|
| Dimming & Backlight | Full-range dimming (0-100%) for night operation, IEC 60945 compliant | |
| Main Processing Unit | Hardware Module | Danelec DPU 700-01 Solid-State Marine Computer |
| Operating System | Dedicated Embedded Linux OS | |
| Configuration Storage | Danelec SWAP Memory Card | |
| Control Hardware | Marine USB Keyboard with integrated optical trackball and direct function keys | |
| System I/O & Interfaces | Serial Sensor Inputs | 8 x NMEA 0183 (IEC 61162-1/2) Serial Channels (isolated inputs/outputs) |
| Network Connections | 2 x Ethernet RJ45 Ports (100/1000 Mbps, IEC 61162-450 / PLECDIS network) | |
| Video & USB Interfaces | 1 x DVI Output (to main display), multiple USB 2.0/3.0 ports for updates | |
| Connected Nav Sensors | Dual GPS/GNSS, Gyrocompass, Speed Log, AIS Transponder, Echo Sounder, Navtex, Wind, Autopilot | |
| Chart Engines & Formats | Vector Formats | IHO S-57 Ed 3.1, IHO S-63 Encrypted ENCs (AVCS, PRIMAR, IC-ENC), C-MAP Professional |
| Raster & Overlays | UKHO ARCS Raster Charts, Admiralty Information Overlay (AIO), Radar Overlay | |
| Electrical & Physical | Power Supply Input | 100-240V AC (50/60 Hz) or 24V DC failover power input |
| Power Draw | Low-power architecture (~ 15W DPU processor + ~ 30-40W display) | |
| Operating Temp Range | -15°C to +55°C (IEC 60945 Protected Category) | |
| Standards & Approvals | Certifications | IMO Carriage Compliant, MED Wheelmark, IEC 61174 Ed. 4, IEC 62288, IEC 60945, DNV GL |
