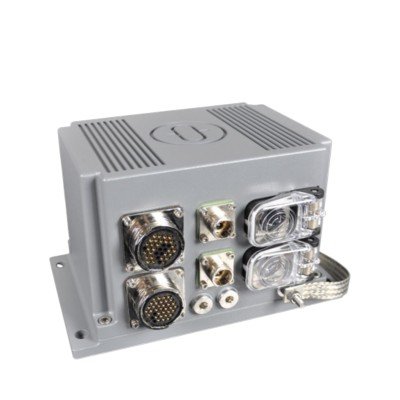

The Anschütz Standard 30 MF is a maintenance-free marine gyro compass based on Hemispherical Resonator Gyro (HRG) vibrating gyro technology. It is designed for demanding commercial and naval marine applications requiring accurate and reliable heading information.
The system combines multiple functions in one compact unit, providing heading, rate of turn (ROT), roll, and pitch information. Its solid-state HRG technology has no conventional moving mechanical parts subject to wear, helping provide long-term stability and low maintenance requirements. The Standard 30 MF can operate as a standalone gyro compass or as part of an advanced heading management and redundant compass system.
| Parameter | Specification |
|---|---|
| Manufacturer | Anschütz |
| Model | Standard 30 MF |
| Equipment Type | Marine Gyro Compass |
| Gyro Technology | Hemispherical Resonator Gyro (HRG) |
| Technology Type | Vibrating Gyro / Solid-State |
| Heading Accuracy | 0.25° secLat, RMS |
| Roll & Pitch Accuracy | 0.2° RMS |
| Rate-of-Turn Accuracy | 0.5°/min + 5% of indicated ROT |
| Settling Time | Approximately 30 minutes |
| Maximum Follow-Up Rate | 200°/second |
| Permissible Roll & Pitch | ±60° for full accuracy |
| Speed / Latitude Correction | Automatic |
| Operating Temperature | −20°C to +60°C |
| Storage Temperature | −30°C to +70°C |
| Supply Voltage | 24 V DC |
| Voltage Operating Range | 10–36 V DC |
| Power Consumption | 24 W |
| Serial Inputs | 3 × RS422 |
| Serial Outputs | 4 × RS422 |
| Output Format | NMEA or Anschütz Course Bus |
| Analog Output | ±10 V for Rate of Turn |
| Ethernet Interfaces | 2 × Ethernet |
| CAN Bus Interfaces | 2 × CAN Bus |
| Ethernet Standard | IEC 61162-450 |
| Bridge Alert Management | IEC 62923-1 / IEC 62923-2 |
| Alert Communication | ALR/ACK via RS422 according to IEC 61162-1 |
| Gyro Compass Protection | IP44 |
| Operator Unit Protection | IP23 / IP56 front side |
| Weight | Approximately 3.3 kg without cables |
