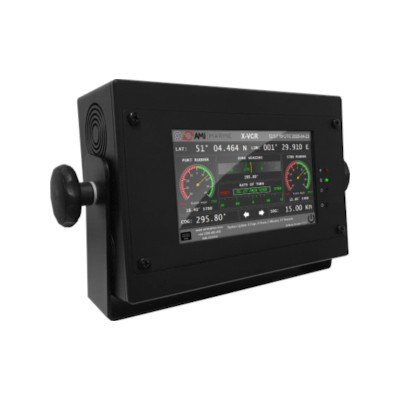

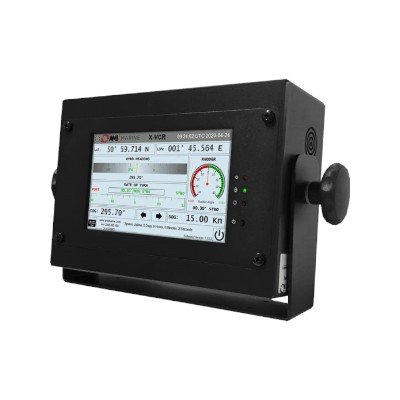

The X-VCR is a new-generation Course Recorder supporting paperless course recording and traditional dot-matrix printing, providing a cost-effective solution for any vessel.
The 7” Touch Screen Display shows real-time data in various layouts, allowing users to view what they need when required.
Data is stored on a solid-state external drive, providing up to 36 months of data that can be extracted for review and playback.
| Parameter | Specification |
|---|---|
| Manufacturer | AMI Marine Ltd. |
| Model | X-VCR (SYS-0090) |
| Equipment Type | Paperless Course Recorder |
| Display | 7-inch High-Resolution Color Touch Screen |
| Display Modes | Light/Dark Theme, Day/Night Mode, Multiple Screen Layouts |
| Recorded Data | Gyro Heading, GPS Data, Rate of Turn (ROT), Rudder Angle (Single/Dual) |
| Storage | Solid-State Internal Storage |
| Storage Capacity | Up to approximately 36 months of voyage data |
| Playback | Integrated Replay Software |
| Power Supply | 24 VDC |
| Navigation Interfaces | 3 × NMEA 0183 Inputs |
| Output Interface | 1 × RS-232 ASCII Output |
| Input/Output Isolation | Opto-isolated ports |
| Printer Support | Optional 80-column Dot Matrix Printer |
| Mounting | Trunnion mount (desk or ceiling) |
| Display Dimensions | 310 × 190 × 190 mm |
| Display Weight | 2.8 kg |
| Terminal Interface Dimensions | 180 × 150 × 50 mm |
| Terminal Interface Weight | 0.8 kg |
| Shipping Weight | Approximately 4.7 kg |
| Operating Function | Continuous real-time recording and playback |
