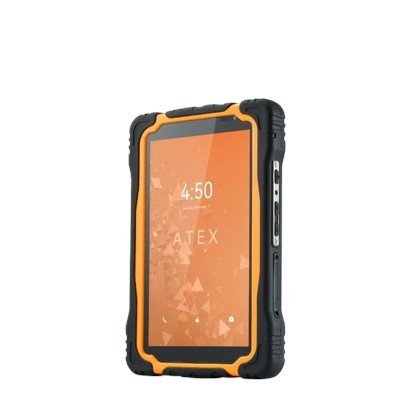

The AMI Marine SMIDS 7″ Zone 2 ATEX-approved portable tablet is designed for masters, duty officers, and pilots who need to monitor vessel movement during docking and manoeuvring in hazardous areas. It connects to the Ship’s Movement Information Display System (SMIDS) using the X994 Serial-to-Bluetooth Converter and displays ship’s heading and relative speeds at the bow and stern. The manufacturer specifies up to 11 hours of runtime, with a charging cable and power adapter supplied.

Technical Specification

Specification	Details
Make	AMI Marine
Product Name	SMIDS 7″ Portable Handheld Tablet – Zone 2 ATEX Approved
SKU / Model	TAB-0004
Equipment Type	Portable Handheld Tablet
Compatible System	SMIDS
Display Size	7 inches
Hazardous Area Approval	ATEX Zone 2
Connectivity	Bluetooth
Interface	X994 Serial-to-Bluetooth Converter

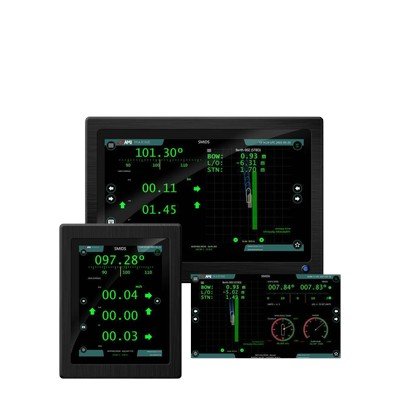

Display Function	Ship’s heading and relative speeds at bow and stern
Operating Time	Up to 11 hours
Accessories	Charging cable and power adapter
Dimensions	131 × 225 × 14 mm
Packed Weight	1.5 kg (including packaging)
Manufacturer	AMI Marine Limited
Origin Country	United Kingdom
