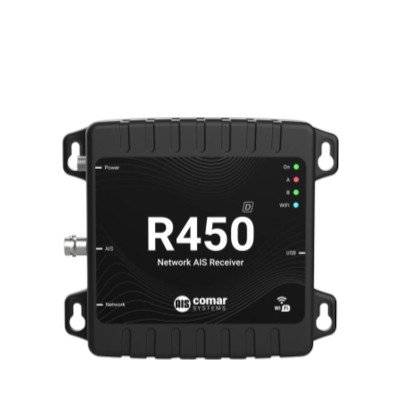

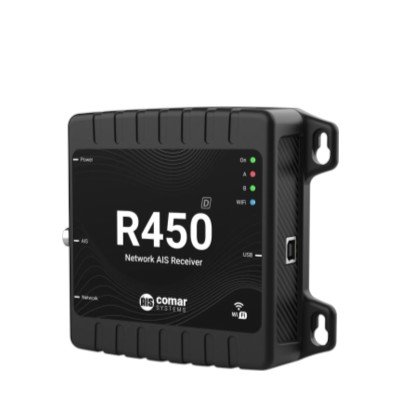

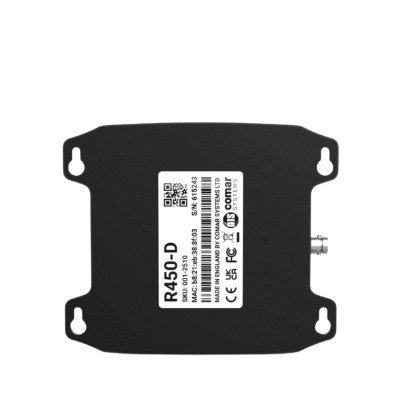

The AMI R450-D is a compact, dual-channel Automatic Identification System (AIS) receiver designed to receive and decode AIS signals transmitted by nearby vessels and maritime AIS-equipped devices. It receives AIS data on both international AIS frequencies, 161.975 MHz and 162.025 MHz, and distributes the information to compatible navigation, monitoring and vessel-tracking systems through Ethernet and built-in Wi-Fi connectivity. The receiver provides vessel information such as MMSI, vessel name, position, speed over ground (SOG), course over ground (COG), heading and navigational status. It is suitable for shore-based AIS monitoring, port surveillance, coastal vessel tracking and integration with compatible marine software and network systems. The R450-D is a receiving-only device and does not transmit the vessel’s own AIS information.

Technical Specification

Parameter	Technical Specification
Manufacturer / Make	AMI Marine / Comar Systems
Model	R450-D
Equipment Type	Network AIS Receiver with Ethernet & Wi-Fi
Product SKU	COM-0027
Receiver Type	Dual-channel, parallel AIS receiver
AIS Channel A	161.975 MHz
AIS Channel B	162.025 MHz
Receiver Sensitivity	Up to −112 dBm
AIS Message Types	Class A, Class B, Aids to Navigation (AtoN), SART and other AIS messages
Ethernet Interface	RJ45, 10/100 Base-T
Wireless Connectivity	Built-in 2.4 GHz Wi-Fi
Wi-Fi Modes	Access Point, Station, AP+STA
Wi-Fi Security	WPA/WPA2
Network Protocols	TCP/IP, UDP/IP, ARP, ICMP, TFTP, Telnet, DHCP, BOOTP, HTTP, AUTOIP
Data Output	NMEA 0183 AIS VDM messages
Data Interfaces	Ethernet, Wi-Fi and USB
USB Interface	USB 2.0 Type-B
Antenna Connector	BNC coaxial connector for VHF/AIS antenna
Antenna Impedance	50 Ω
Power Supply	9–30 V DC
Nominal Power Consumption	3 W
Indicator LEDs	Power, Channel A, Channel B, Wi-Fi
Data Received	MMSI, vessel name, position, SOG, COG, heading, ROT, navigational status, call sign, vessel type, dimensions and destination
Dimensions (L × W × D)	140 × 120 × 37 mm
Weight	Approx. 250 g
Enclosure	ABS housing with carbon-reinforced connector panels
Protection Rating	IP40
Operating Temperature	−15°C to +55°C
Compass Safe Distance	50 cm
